Home >> Kia >> 2009 >> Optima L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Connecting Rod Bearing

Connecting Rod Bearing





Place Of Identification Mark (Connecting Rod Bearing) Discrimination Of Connecting Rod Bearing

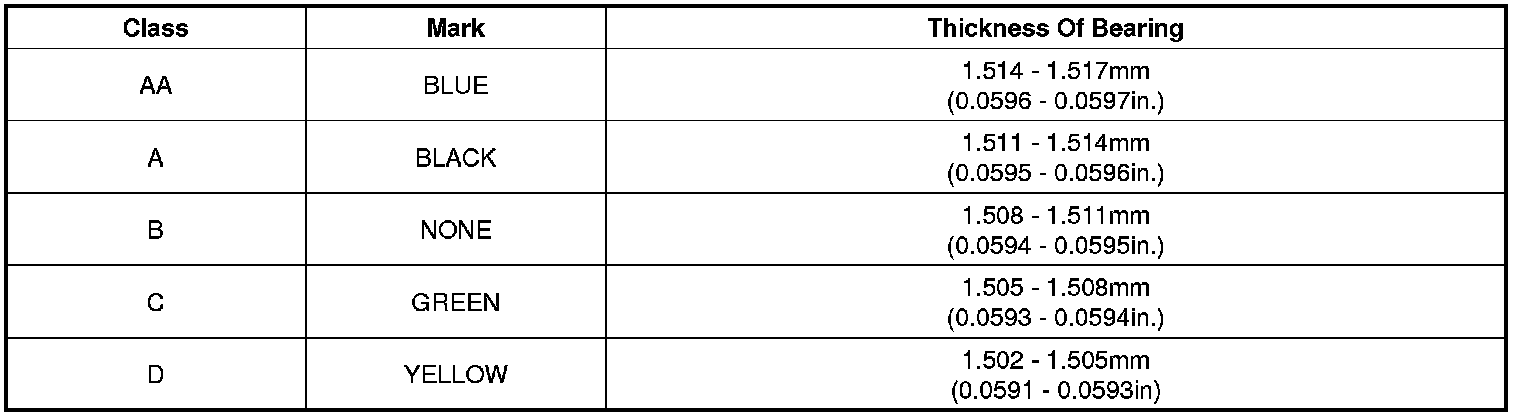

Discrimination Of Connecting Rod Bearing
