Home >> Kia >> 2009 >> Optima L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications >> Clutch

Clutch

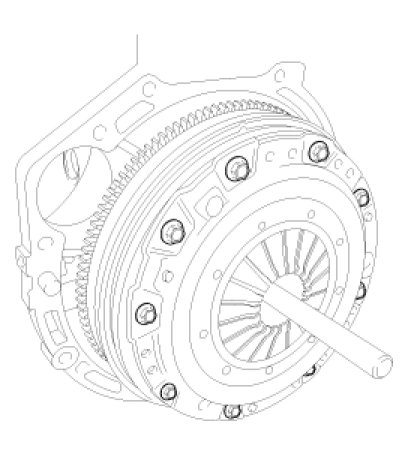

Clutch Cover

TORQUE 11.8 - 14.7 Nm (120 - 150 kgf.cm, 8.7 - 10.8 lb-ft) (2.4L-9EA)

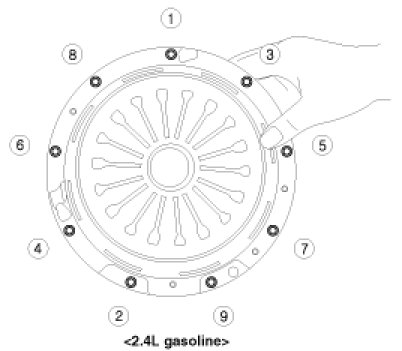

CAUTION: When installing the clutch cover, tighten the bolts.
