Rear Seat Belt Buckle

REPLACEMENT

REAR SEAT BELT BUCKLE REPLACEMENT

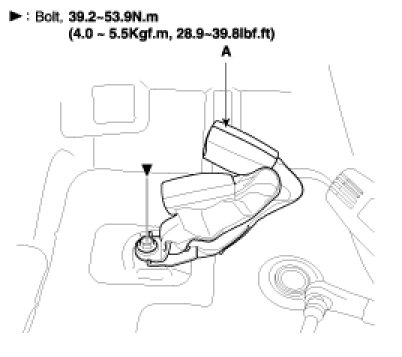

1. After cushion frame hinge mounting bolt, fold the cushion.
2. Remove the seat belt buckle (A).




3. Installation is the reverse of removal.
