REASSEMBLY

1. Apply the multi-purpose grease to the contacting surface of the knuckle and wheel bearing thinly.

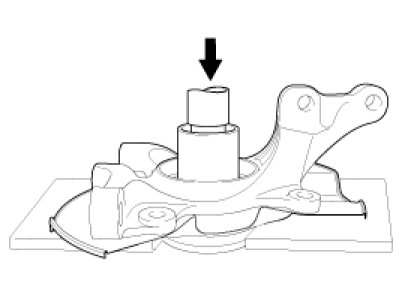

2. Press-in the wheel bearing to the knuckle using the SST (09216-21100).





CAUTION:
- Do not against the inner race of the wheel bearing because that can cause damage to the bearing assembly.
- Always use a new wheel bearing assembly.

3. Install the snap ring into the groove the knuckle.
4. Press-in the hub to the knuckle using the SST (09454-21100).

CAUTION:
- Do not against the outer race of the wheel bearing because that can cause damage to the bearing assembly.

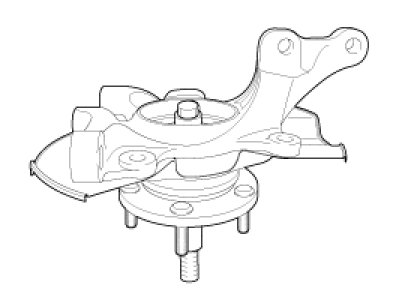

5. Tighten the hub to the knuckle with the SST (09517-21500).

Tightening torque Nm (kgf.m, lb-ft):
200 - 260 (20 - 26, 145 - 188)





6. Rotate the hub to seat the wheel bearing.

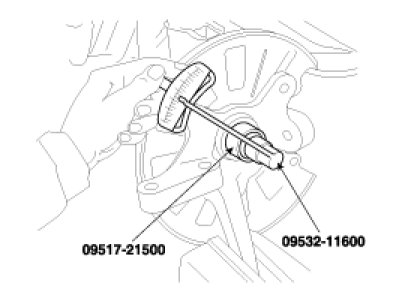

7. Measure the wheel bearing starting torque.

Wheel bearing starting torque:
1.8 Nm (18kgf.cm, 1.3 lb-ft) or below





8. Measure the hub run-out by using a dial gauge.

0.04mm (0.00157in)


9. Remove the SST (09517-21500).
