Speedometer Head: Testing and Inspection

Inspection

Speedometer
1. Adjust the pressure of the tires to the specified level.
2. Drive the vehicle onto a speedometer tester. Use wheel chocks as appropriate.
3. Check if the speedometer indicator range is within the standard values.

CAUTION:
Do not operate the clutch suddenly or increase/ decrease speed rapidly while testing.

NOTE:
Tire wear and tire over or under inflation will increase the indication error.

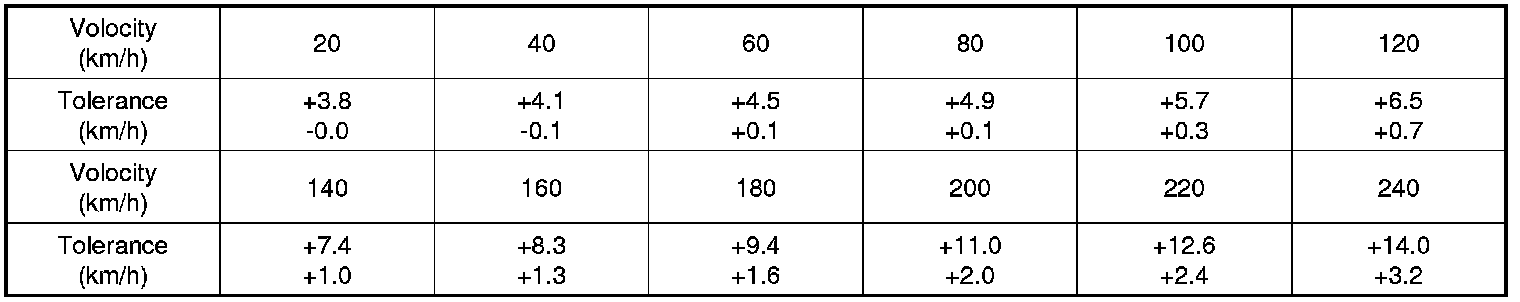

[Canada]

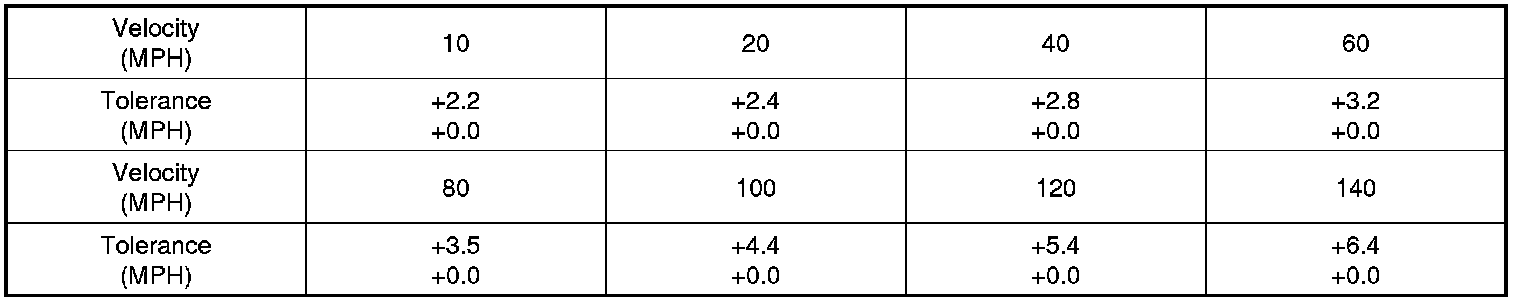

[USA]
