Repair Procedures

Removal

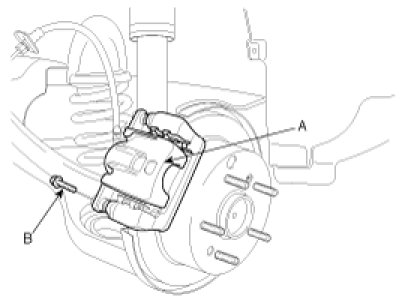

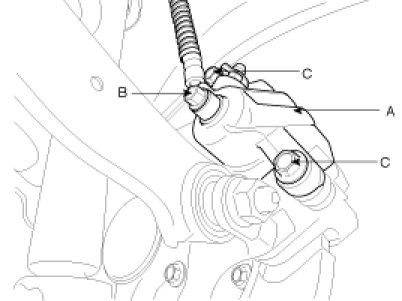

1. Remove the brake hose bolt (B) and the guide rod bolts (C) from the caliper assembly (A).

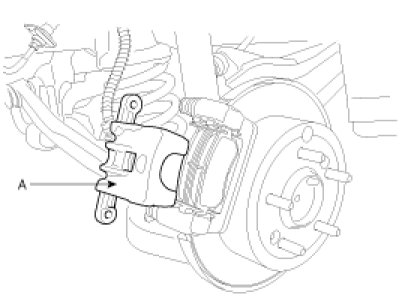

2. Remove the caliper assembly (A).

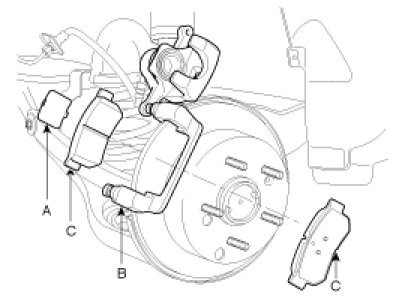

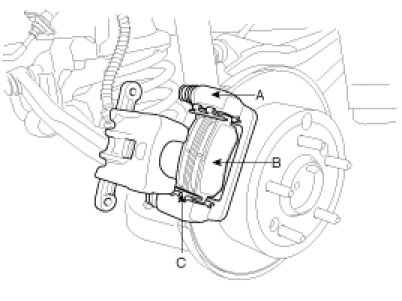

3. Remove the pads (B), the pad shims (C) and the pad retainers (D) from the caliper bracket (A).

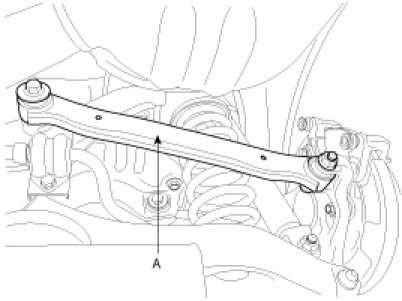

4. Remove the rear upper arm (A).

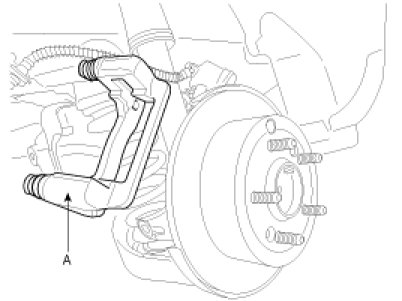

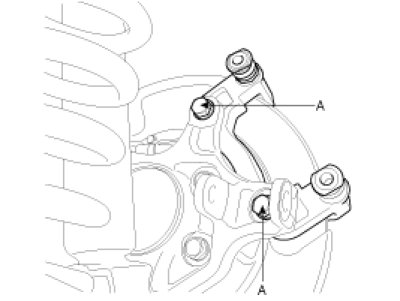

5. Remove the caliper bracket (B) and the caliper mounting bolts (A).

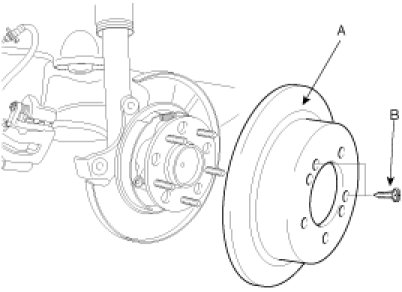

6. Remove the brake disc (A) and the screw (B).





NOTE:

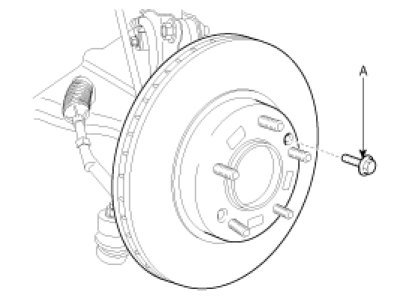

Remove the brake disc from hub using M8 bolt (A) if the brake disc has been seized with the hub due to corrosion or overheat.
Be careful not to use the hammer. The disc can be damaged if you remove the disc from the hub by hammer.





Replacement

CAUTION:
Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.
- Avoid breathing dust particles.
- Never use on air hose or brush to clean brake assemblies.

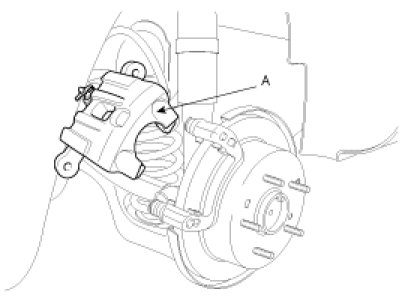

1. Remove guide rod bolt (B) and raise the caliper assembly (A).




2. Remove the pads (B), the pad shims (C) and the pad retainers (D) from the caliper bracket (A).






Installation

1. Install the brake disc (A) and tighten the screw (B).

Tightening torque :
4.9 - 5.9N.m (0.5 - 0.6kgf.m, 3.6 - 4.3lb-ft)





2. Install the caliper bracket (B) and tighten the caliper mounting bolts (A).

Tightening torque :
49.0 - 58.8N.m (5.0 - 6.0kgf.m, 36.2 - 43.4lb-ft)









3. Install the rear upper arm (A).




4. Install the pad retainers (D) to the caliper bracket (A).
5. Install the brake pads (B) and pad shims (C) on the pad retainer correctly. Install the pad with the wear indicator on the inside. If you are reusing the pads, always reinstall the brake pads in their original positions to prevent a momentary loss of braking efficiency.

NOTE:
Check the foreign material at the pad shims (A) and the back of the pads (B).
Contaminated brake discs or pads reduce stopping ability. Keep grease off the discs and pads.

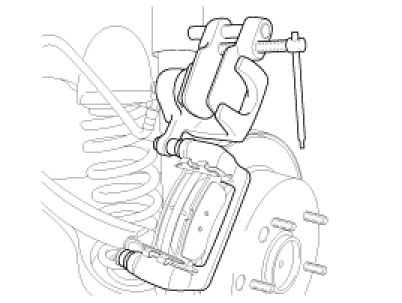

6. Push in the piston using the SST(09581-11000) so that the caliper will fit over the pads. Make sure that the piston boot is in position to prevent damaging it when installing the caliper.




7. Install the caliper assembly (A).

NOTE:
Be careful not to damage the piston pin boot.




8. Install the brake hose bolt (B) and the guide rod bolts (C) to the caliper assembly (A).

Tightening torque :
Bolt (B) : 24.5 - 29.4N.m (2.5 - 3.0kgf.m, 18.1 - 21.7lb-ft)
Bolt (C) : 21.6 - 31.4N.m (2.2 - 3.2kgf.m, 15.9 - 23.1lb-ft)





9. Refill the master cylinder reservoir to the MAX line.
10. Bleed the brake system.
11. Depress the brake pedal several times to make sure the brakes work, then test-drive.

NOTE:
Engagement of the brake may require a greater pedal stroke immediately after the brake pads have been replaced as a set. Several applications of the brake will restore the normal pedal stroke.

12. After installation, check for leaks at hose and line joints or connections, and retighten if necessary.
