Sunroof Assembly

REPLACEMENT

MOTOR REPLACEMENT

NOTE:
- Confirm the position of guide whether it is closed or not when you remove the motor.

1. Remove the over head console.

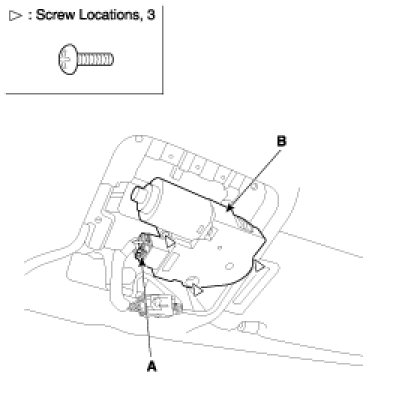

2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).




3. Installation is the reverse of removal.

NOTE:
- Make sure to initialize the motor.

DEFLECTOR REPLACEMENT
1. Open the glass fully.
2. Disconnect the deflector link (A) from the frame (B), and then remove the deflector (C).




3. Installation is the reverse of removal.
