Glove Compartment: Service and Repair

Replacement

Glove Box Replacement

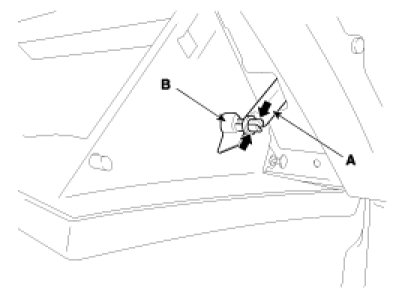

1. Disconnect the damper (B) from the glove box (A).

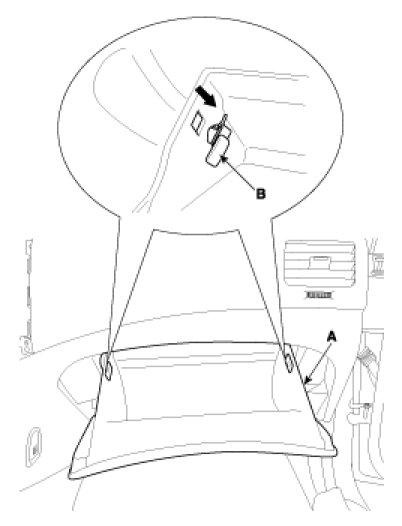

2. Remove the glove box (A) from the lift (B).

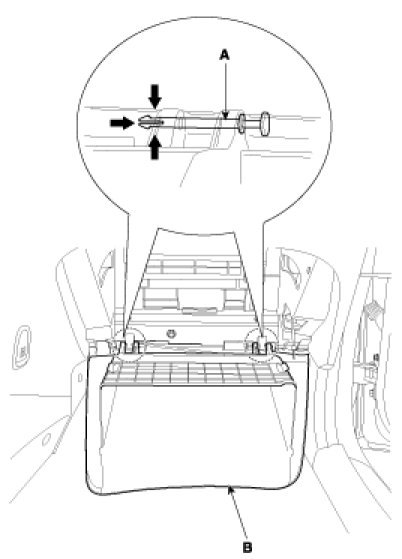

3. Disconnect the pine (A), then remove the glove box (B).




4. Installation is the reverse of removal.
