Rear Bumper: Service and Repair

Replacement

NOTE:
- After remove the rear combination lamp.
- When prying with a flat-tipped screwdriver, wrap it with protective tape , and apply protective tape around the related parts your hands.
- Put on gloves to protect your hands.
- Take care not bend or scratch the cover and other parts.

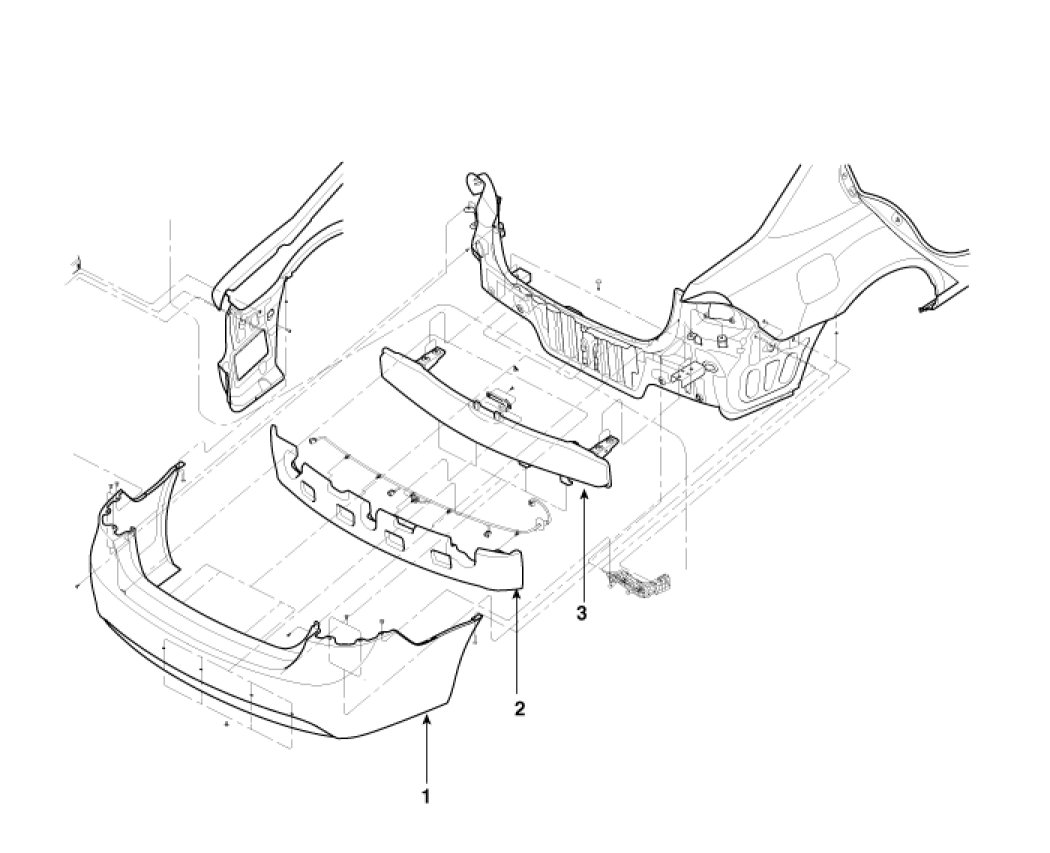

1. Remove rear combination lamp.
2. Loosen the rear bumper cover screws and clips.
3. Remove the rear bumper cover and rail.
4. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
