Overhaul

Disassembly

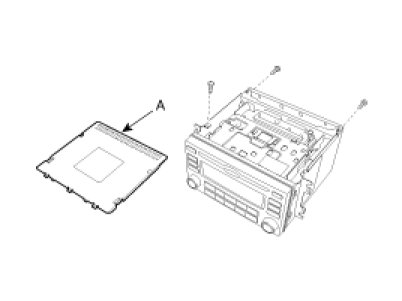

1. Disassemble the top cover (A) after loosening 4 screws.

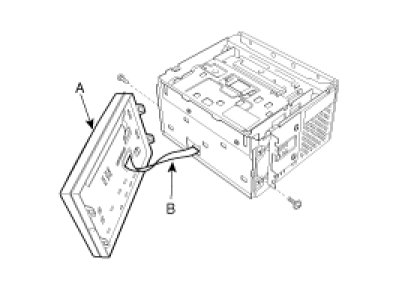

2. Disassemble the front cover (A) then disconnect the connector (B) between the unit and front cover if necessary.

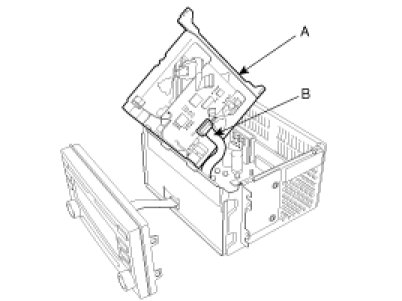

3. Disconnect the connector (B) between the unit and the deck after loosening 4screws.




4. Disassemble the deck (A) from the unit.
