Scantool Diagnostics

Monitor DTC Status

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode
2. Press F4 (DTAL) to select DTC information from the DTCs menu
3. Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
4. Read "DTC Status" parameter

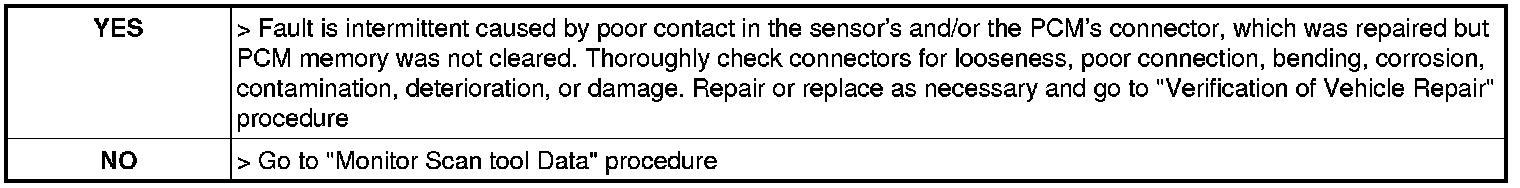

5. Is parameter displayed "History (Not Present) fault"?

NOTE:
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.





Monitor Scan tool Data

1. With vehicle raised on a lift, start the engine and place transaxle in Drive. Let vehicle idle and verify speedometer indicates approx. 10 km/h or more (6 mph or more) on the instrument cluster.
2. Connect Scantool and select ABS/ESP system.
3. Monitor the "WHEEL SPD SENSOR-FR" parameter on the current data list.

Specification : 10 km/h or more (6 mph or more)

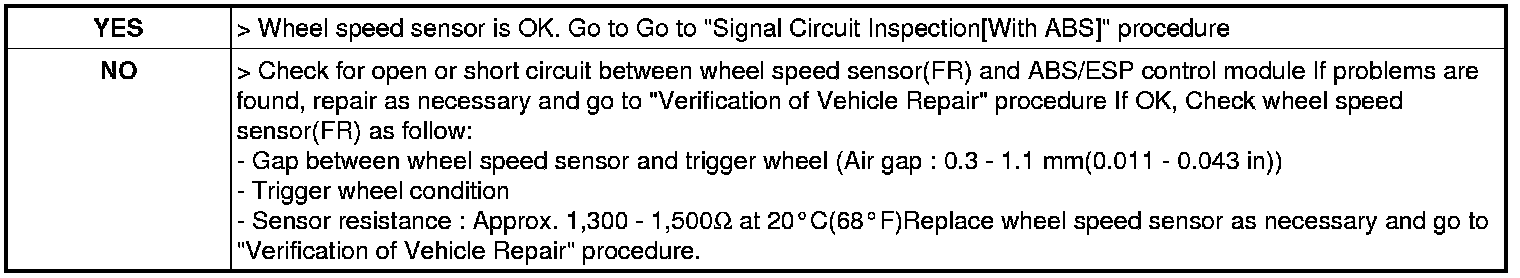

4. Is value within the specification?
