Component Inspection





Component Inspection

1. IG key ON.

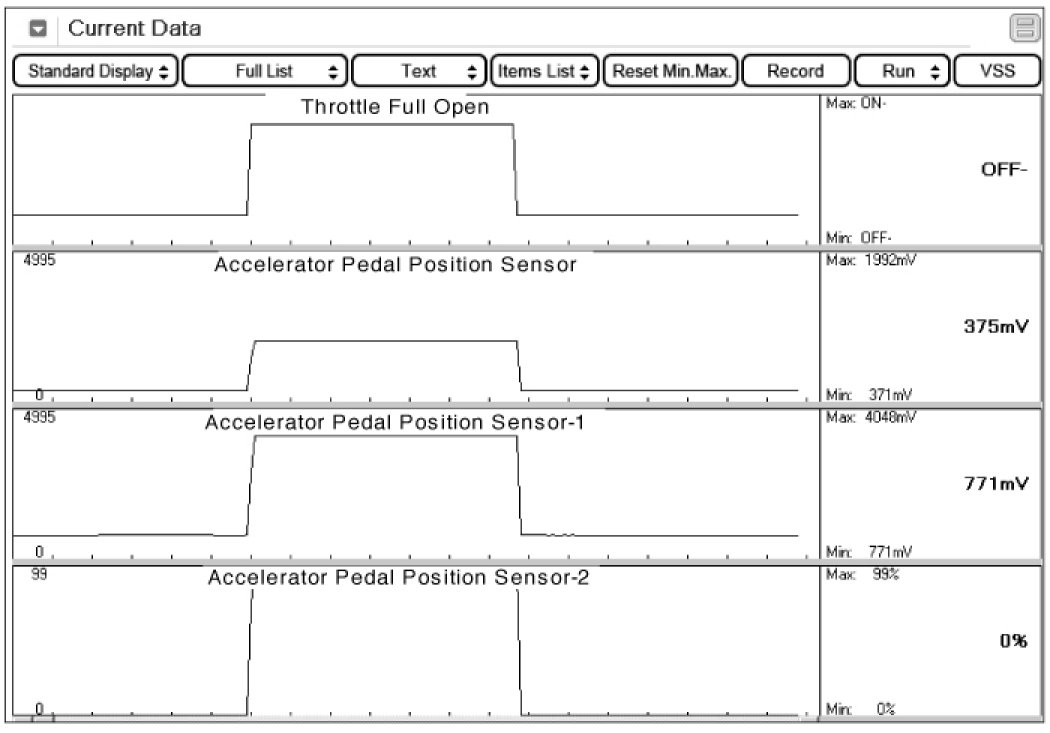

2. Check sensor data as below.

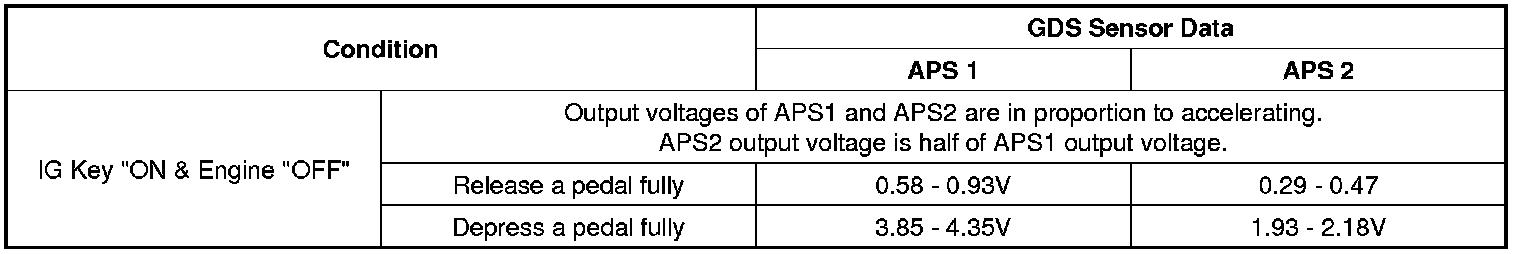

3. Data Analysis

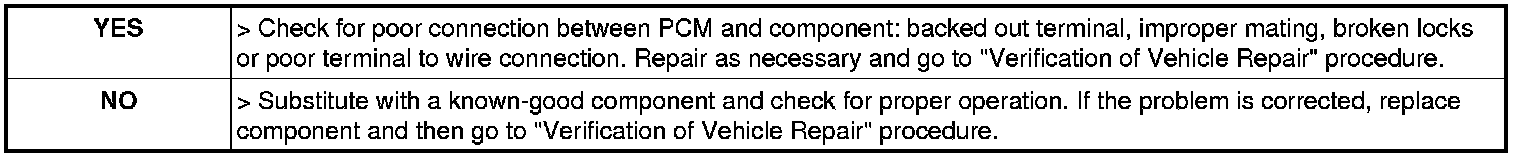

4. Is data in accordance with "Data Analysis"?
