Component Inspection

Component Inspection

1. IG "ON" & Engine "ON".
2. Measure voltage between signal terminal (back probe) of the switch harness connector and chassis ground.

Specification : Approx. B+
- Signal "OFF" (Steering wheel=Straight ahead) : Approx. B+
- Signal "ON" (Steering wheel=Turned) : Approx. 0V

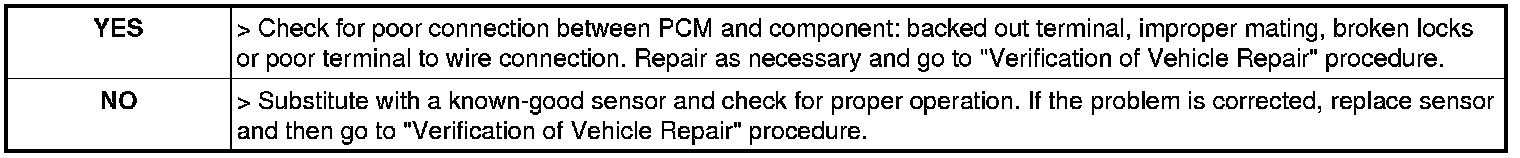

1. Is voltage within the specification?
