Component Inspection





Component Inspection

1. IG KEY 'OFF'.
2. Disconnect CCV harness connector.
3. Measure resistance between control terminal and power terminal of CCV connector. (Component side)
Specification

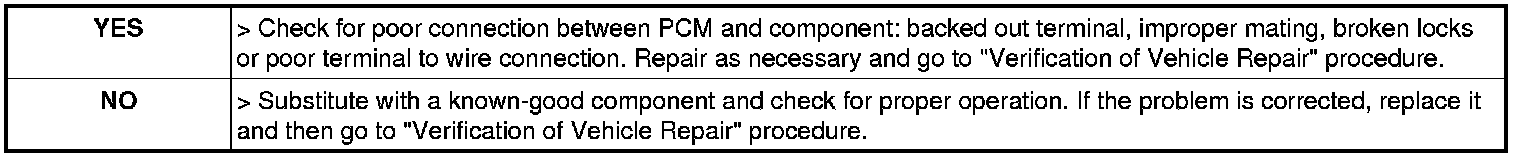

4. Is resistance within the specification?
