W/Harness Inspection

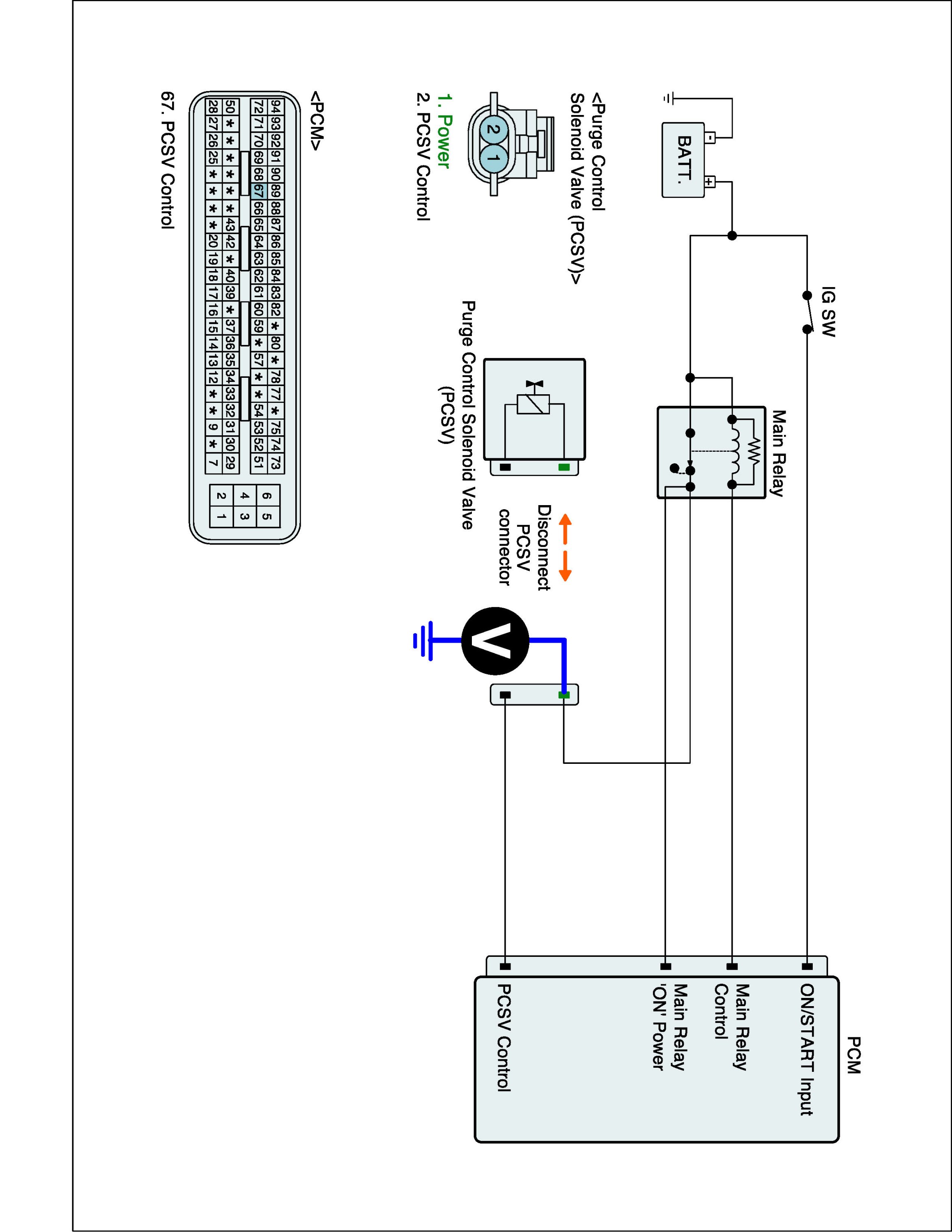

Power Supply Circuit Inspection

1. Ignition "ON" & Engine "OFF"
2. Measure voltage between power terminal of PCSV harness connector and chassis ground.

Specification : Approx. B+

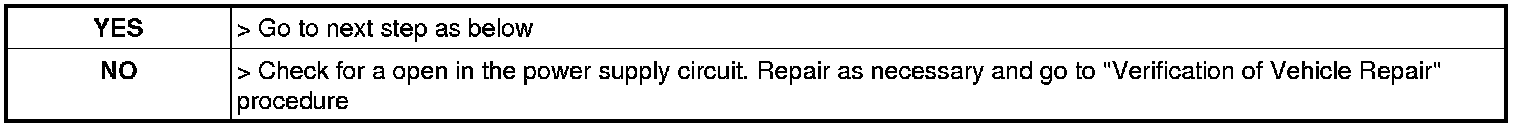

3. Is voltage within the specification?

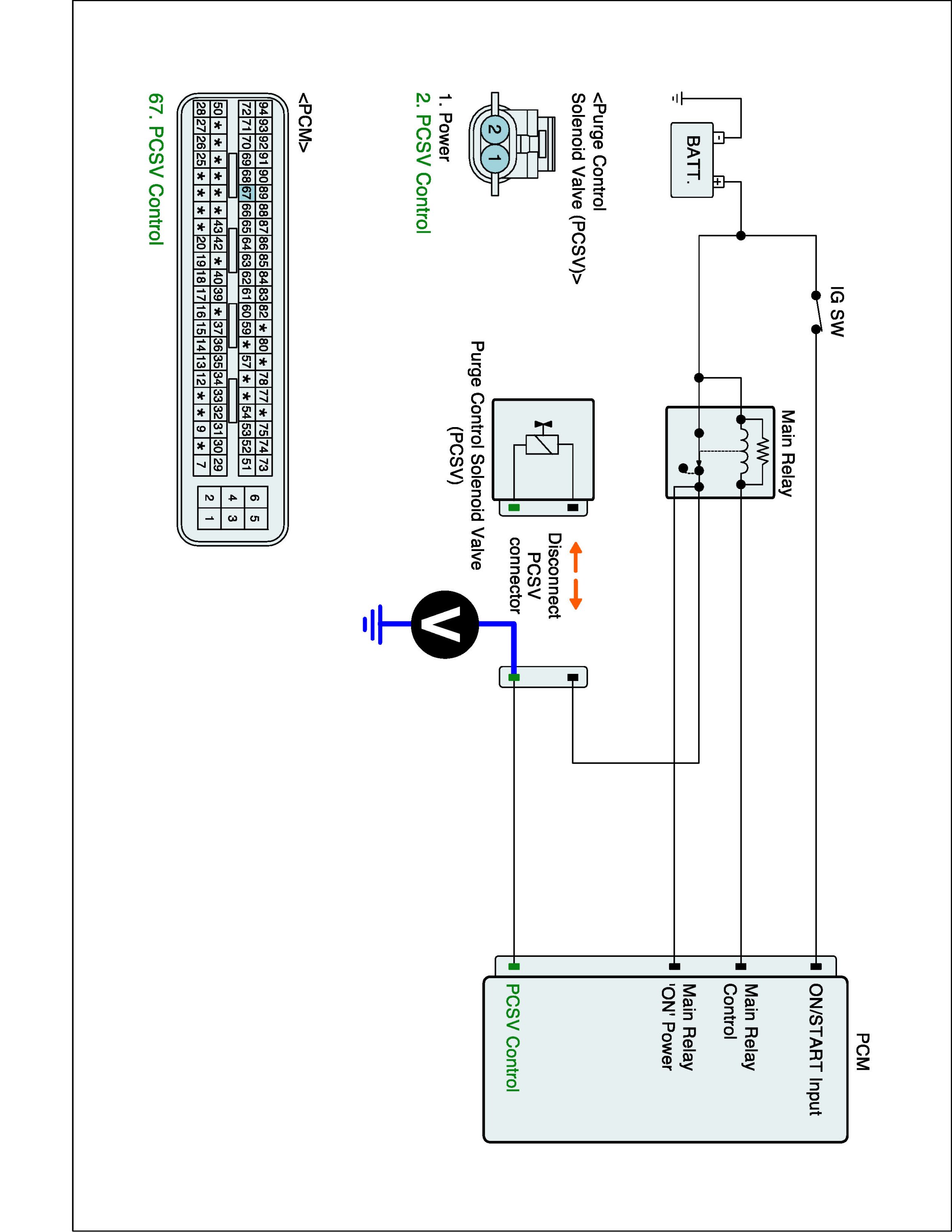

Control Circuit Inspection

1. Measure voltage between power terminal of the PCSV harness connector and chassis ground.

Specification : Approx. 4-5V





2. Is voltage within the specification?






Terminal and connection inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
3. Has a problem been found?
