Component Inspection

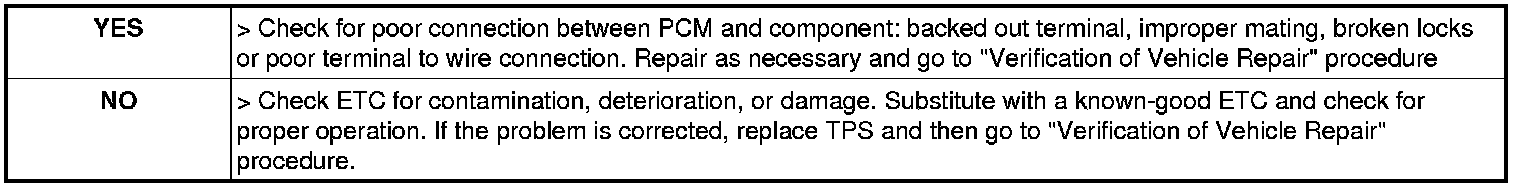

Component Inspection

1. Select 'Actuation Test' mode and execute 'ETC motor' item.




- During 'ETC Motor' test, TPS1 and TPS2 show symmetrical movements.
2. Is the waveform normal?






NOTE:
It is necessary to perform the TPS adaptation procedure after the ETC assembly or PCM replacing.
TPS adaptation procedure
Ignition "OFF" and then "ON" without cranking. Wait for 10 seconds under enable conditions.
-> Enable conditions : Battery >10V & Intake Air Temp. >5.3 °C (41.5 °F) & 5.3 °C (41.5 °F) < Engine Coolant Temp.<99.8 °C (211.6 °F)
