Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect IATS connector3) Measure the resistance between signal terminal and
3. Measure the resistance between signal terminal and ground terminal of the sensor connector (Component side).

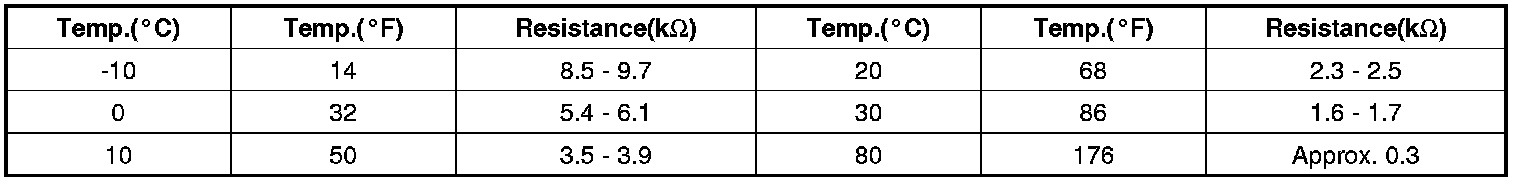

Specification

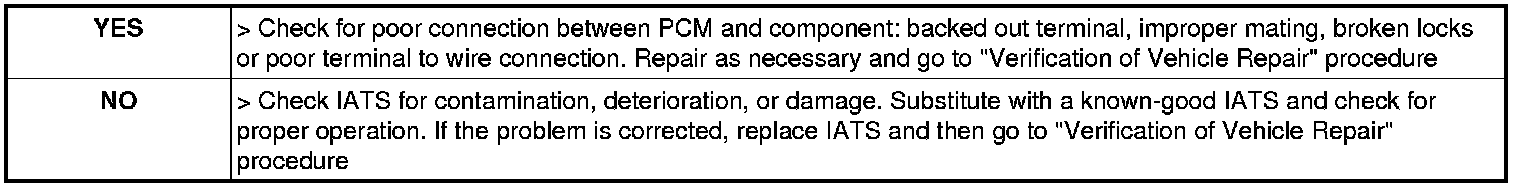

4. Is resistance within the specification?
