General Information

Component Location





General Description

The CVVT (Continuously Variable Valve Timing) system is installed to the chain sprocket of the exhaust camshaft. There is no variation in valve timing of the exhaust cam because the exhaust camshaft is driven by the timing belt. The timing of the intake cam is varied by the relative operation the CVVT vane to the housing. The CVVT controller regulates the intake camshaft angle using oil pressure through the OCV (Oil Control Valve). As result, the relative position between the camshaft and the crankshaft becomes optimal and the engine torque improves, fuel economy improves, exhaust emissions decrease by changing the valve open/close timing of the intake camshaft.

DTC Description

The deviation of the camshaft position from the target point is evaluated during stable driving condition. The PCM accumulates this deviation for a certain period and sets DTC P0014 when the accumulated deviation is too high. The target camshaft position is predetermined value depending on engine speed and throttle angle in the PCM.

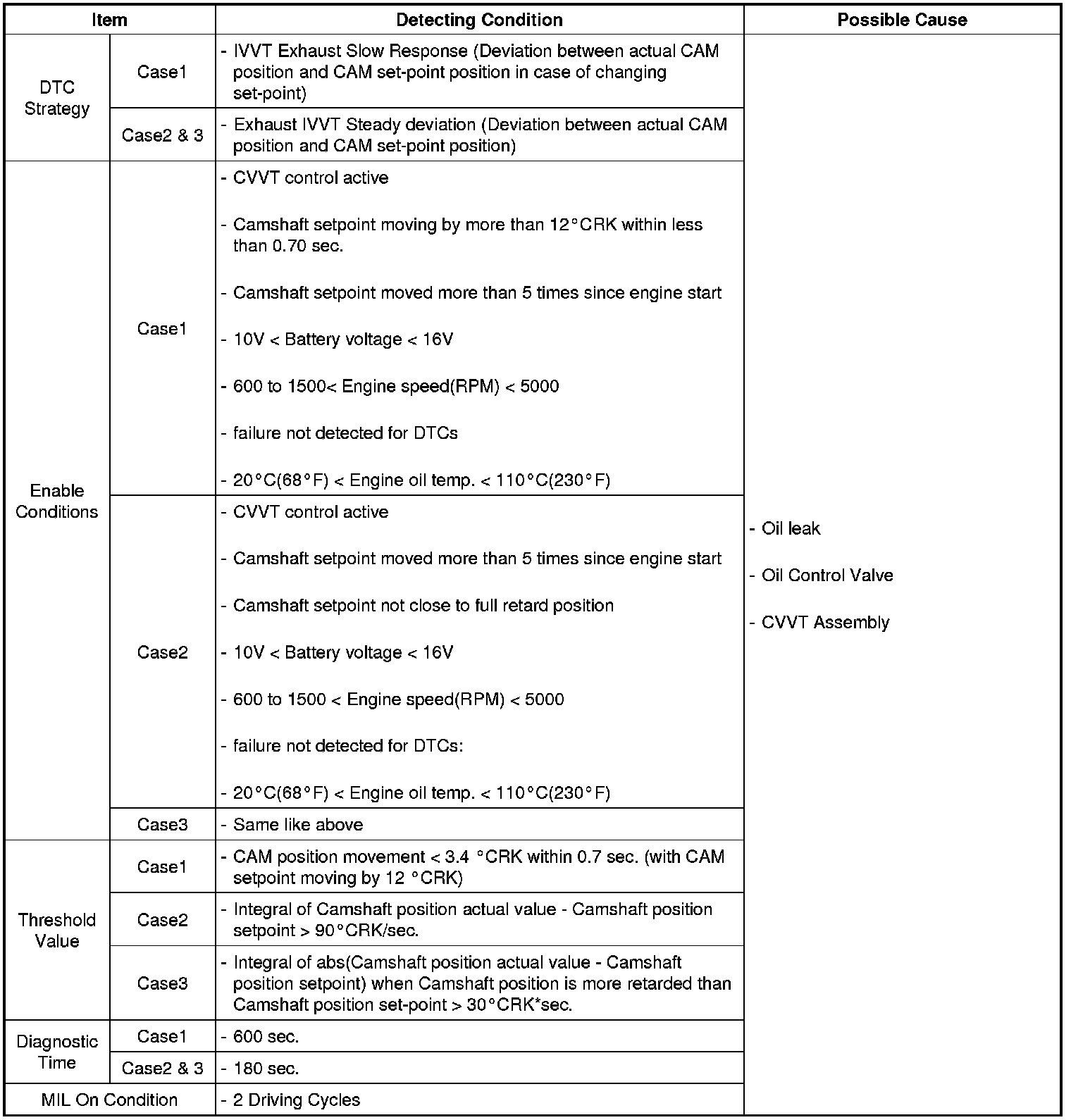

DTC Detecting Condition





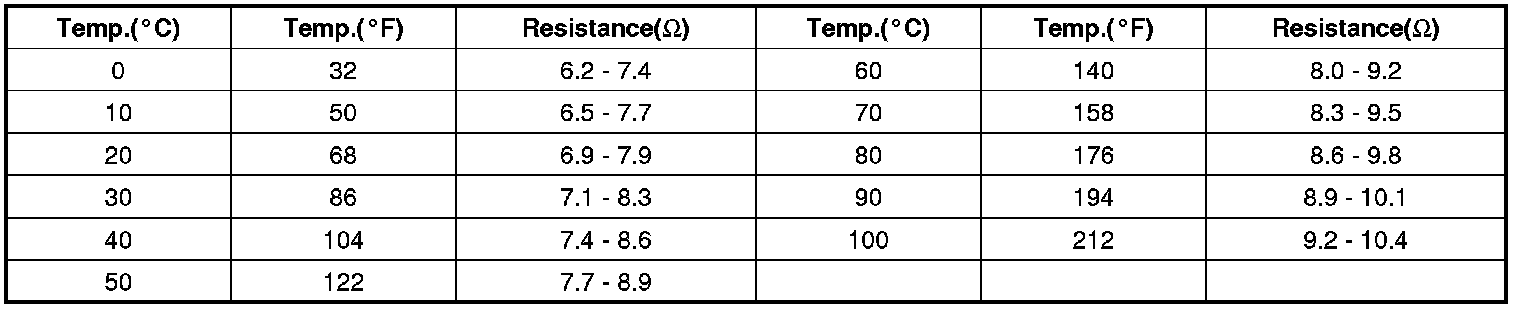

Specification









Diagnostic Circuit Diagram





Signal Waveform & Data




1 Engine Speed (RPM)
2 Inlet Camshaft Position Control
3 Exhaust Camshaft Position Control
