General Information

General Description

Driver can inhibit the ESC control by ESC switch.
When switch signal send into HECU, ESC warning lamp go ON and ESC control is stopped and if next switch signal is inputted again, ESC control is ready. This function is used for sporty driving or vehicle inspection.

DTC Description

Trouble code is set when the condition that the level of ESC switch is high is continued for 60 sec.
When the ESC switch failure is set, Warning lamps won't illuminate and HECU allow the ABS/EBD/ESC control.

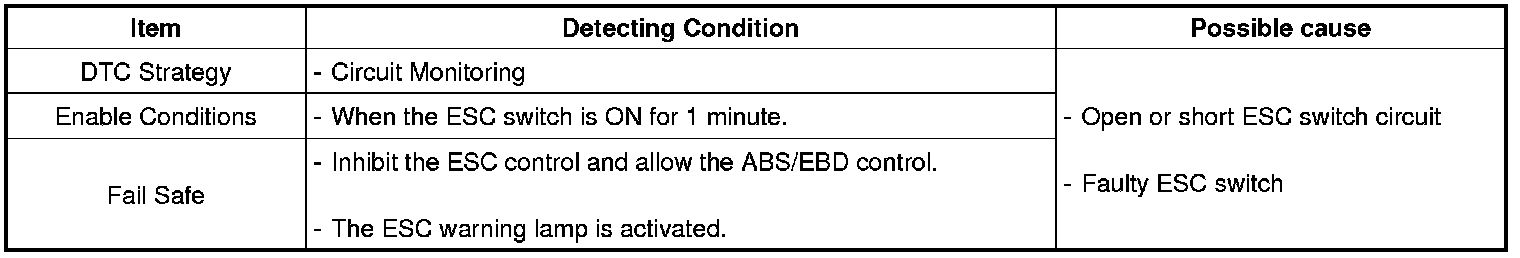

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram
