General Information

Componet Location





General Description

The mode control actuator mounted on heater unit adjusts position of mode door by operating Direction Motor based on signal of A/C control unit. Pressing mode select switch makes the mode control actuator shift in order of vent -> B/L -> floor -> mix.

DTC Description

Air conditioner Control Module sets DTC B1249 if Feedback signal of Mode Actuator has been detected below 0.1V for 0.3 second

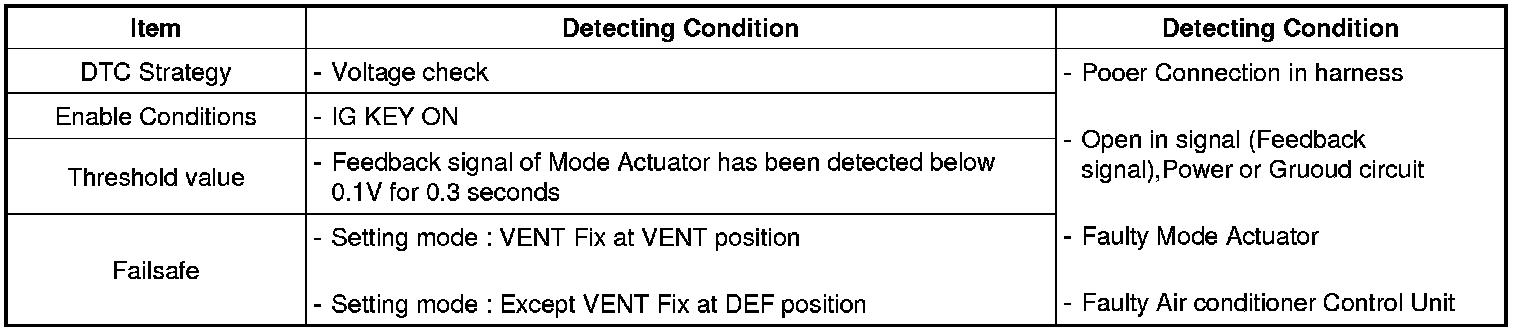

DTC Detecting Condition

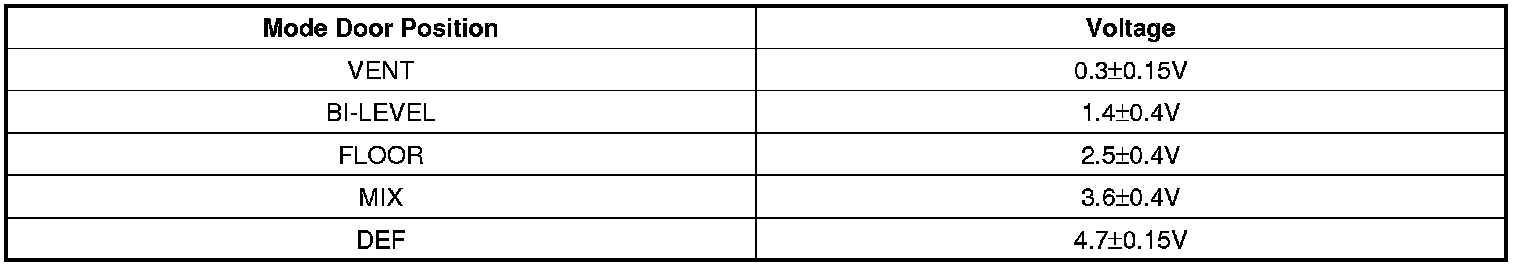

Specification

** Voltage value of potentiometer as a function of mode door position.






Diagnostic Circuit Diagram
