Specifications
>>
Mechanical Specifications
>>
Specifications (M5GF2)
Specifications (M5GF2)
SPECIFICATION

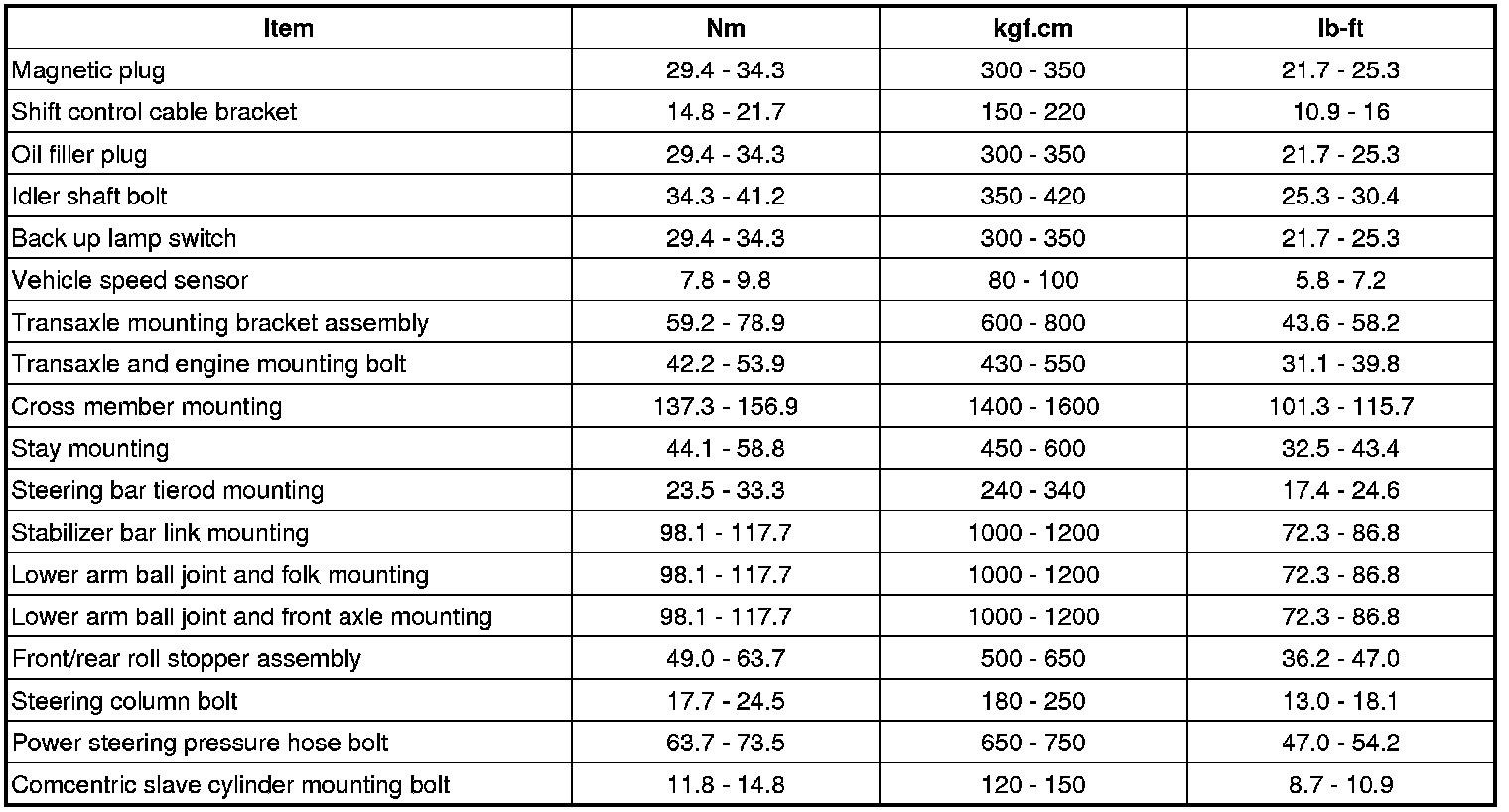

TIGHTENING TORQUE

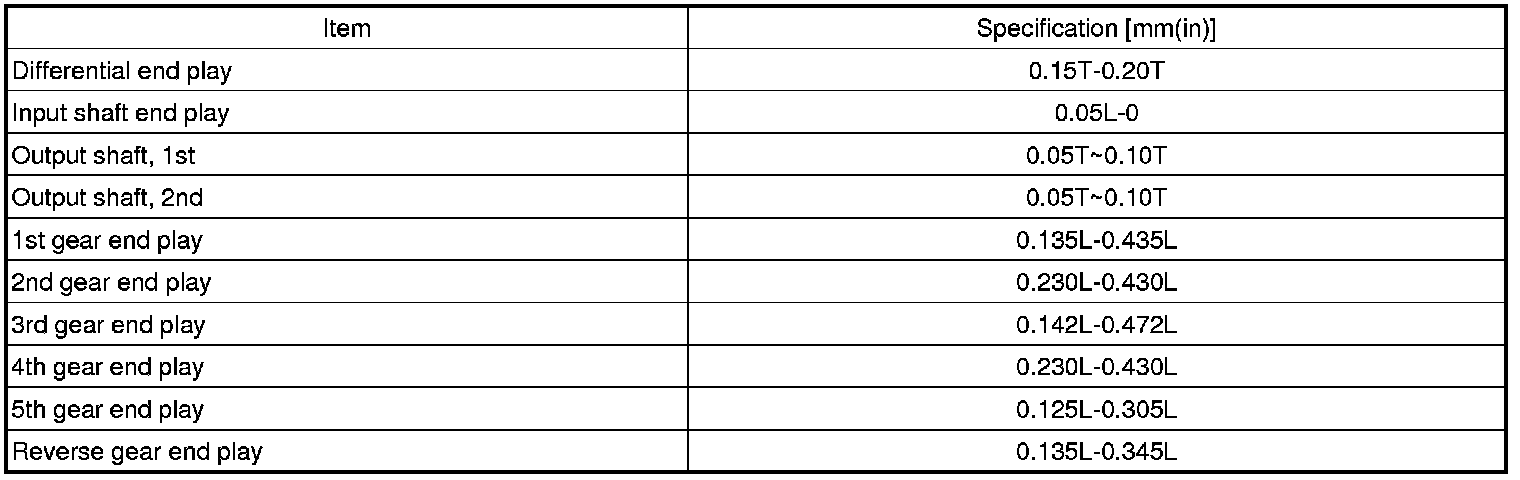

SERVICE STANDARD
