Home >> Kia >> 2009 >> Magentis (CANADA) L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Testing and Inspection

Fuel Pump: Testing and Inspection

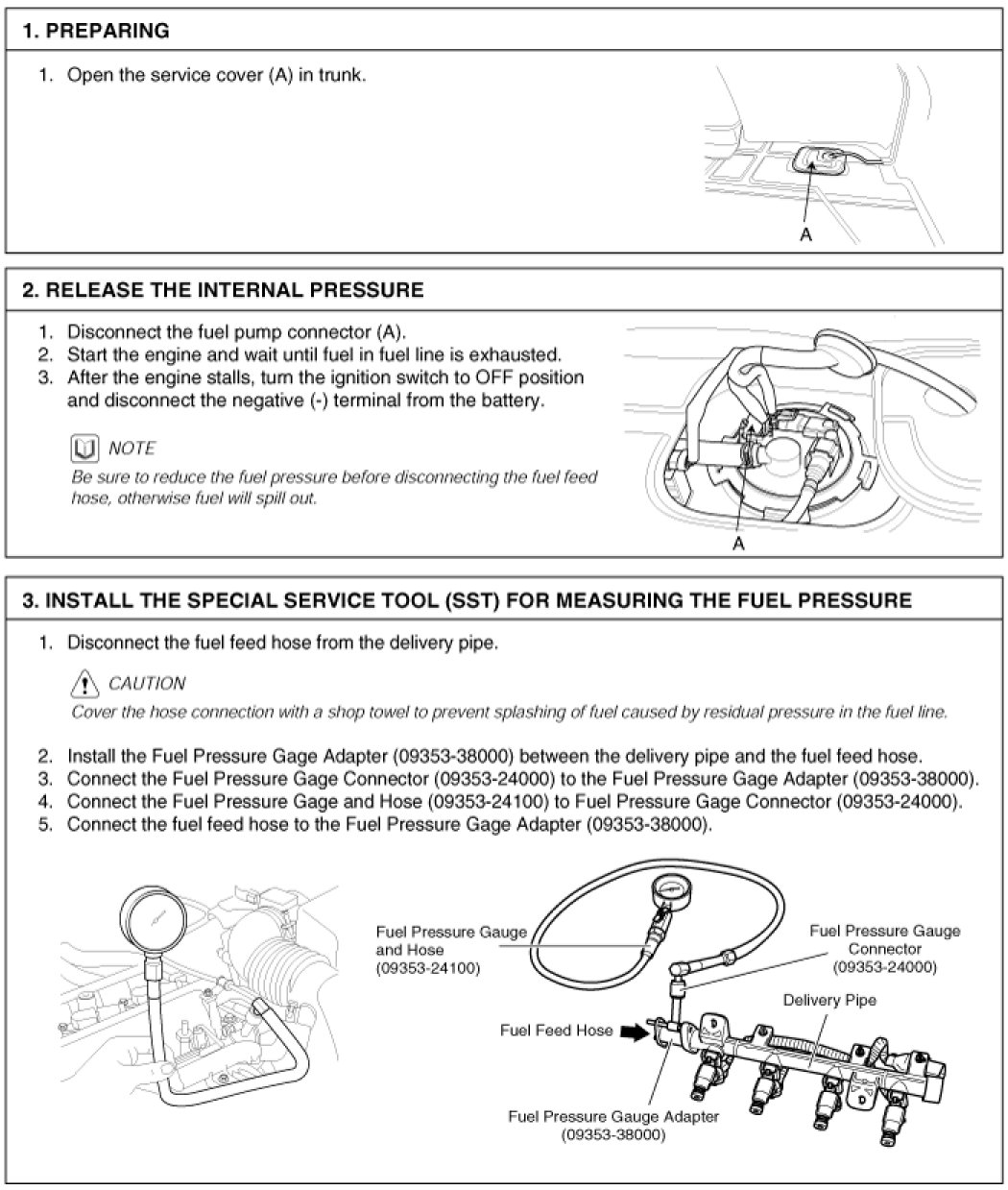

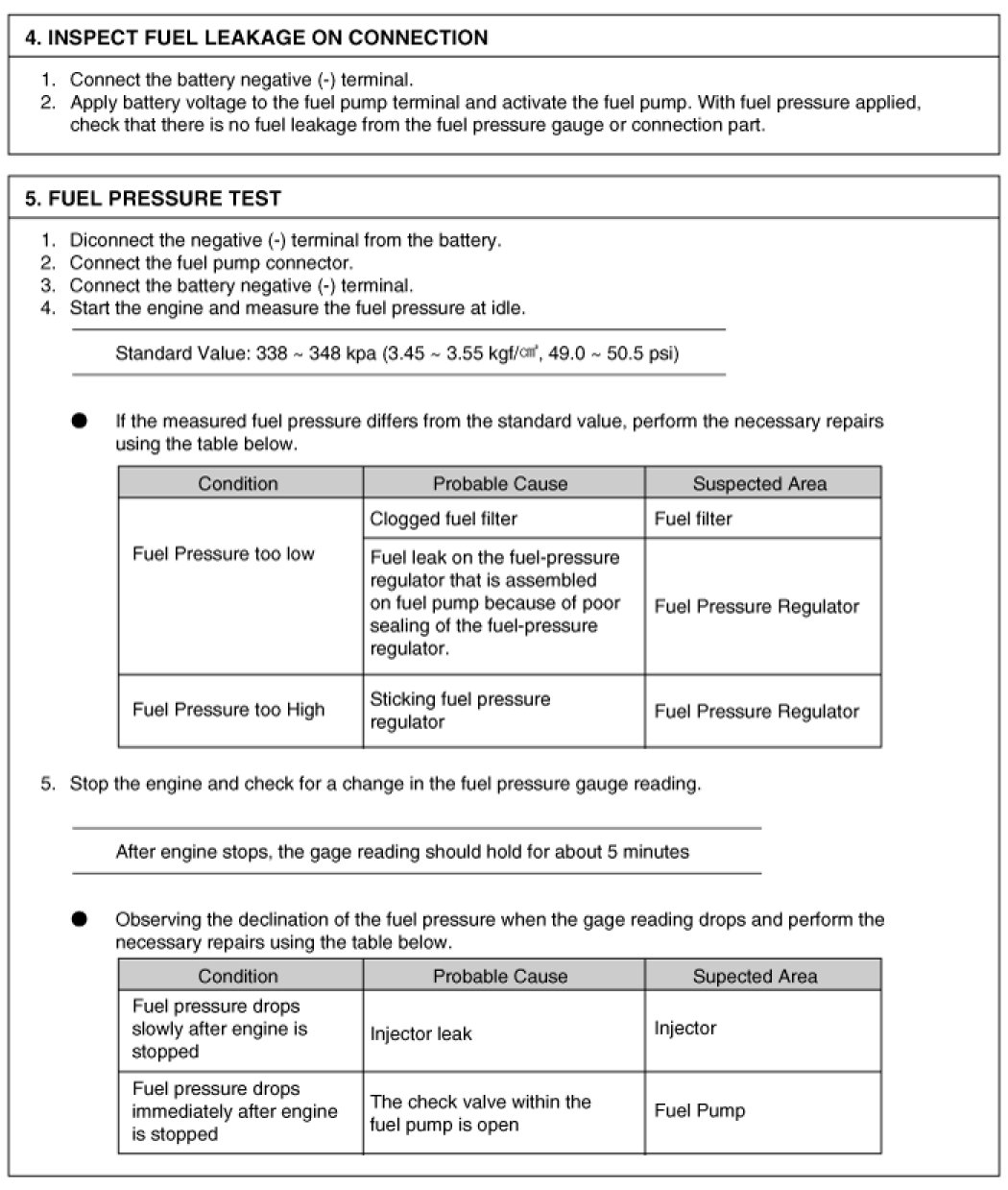

FUEL PRESSURE TEST
