Repair Procedures

Removal

1. Remove the front bumper. .

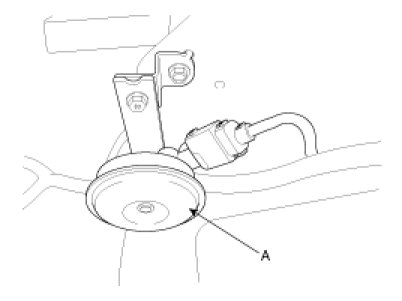

2. Remove the bolt and disconnect the horn connector, then remove the pitch horn (A).






Installation

1. Connect the horn connector, then reassemble the high pitch horn and low pitch horn.
2. Reassemble the front bumper.
