Engine: Application and ID

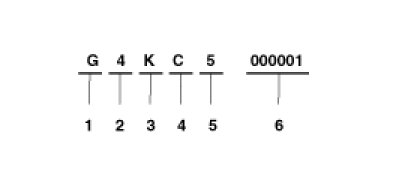

ENGINE IDENTIFICATION NUMBER




1. Engine fuel
- G : Gasoline

2. Engine range
- 4 : 4 cycle 4 cylinder
- 6 : 4 cycle 6 cylinder

3 - 4. Engine development order and capacity
- KC : Theta engine, 2359 cc
- EA : Mu engine, 2656 cc

5. Production year
- 5 : 2005, 6 : 2006

Engine production sequence number
- 000001 - 999999
