General Information

General Description

The PCM provides a 5 volt reference voltage to the Air-con Pressure Transducer (APT) and. The PCM monitors reference voltage deviation from the power supply circuit of the APT.

DTC Description

PCM sets DTC P06A5 if the PCM detects reference voltage of APT is Higher than threshold value.

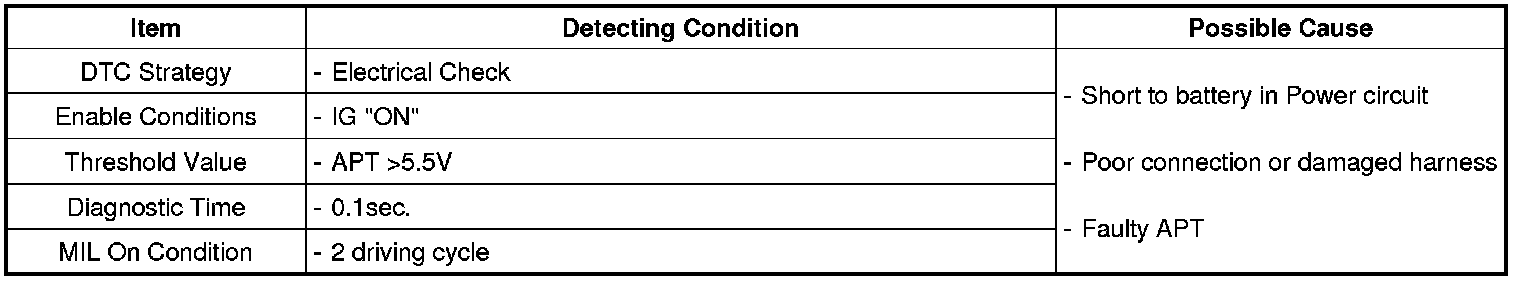

DTC Detecting Condition





(** APT : Air-Con Pressure Transducer)

Diagnostic Circuit Diagram
