W/Harness Inspection

Control Circuit Inspection

1. Ignition "OFF"

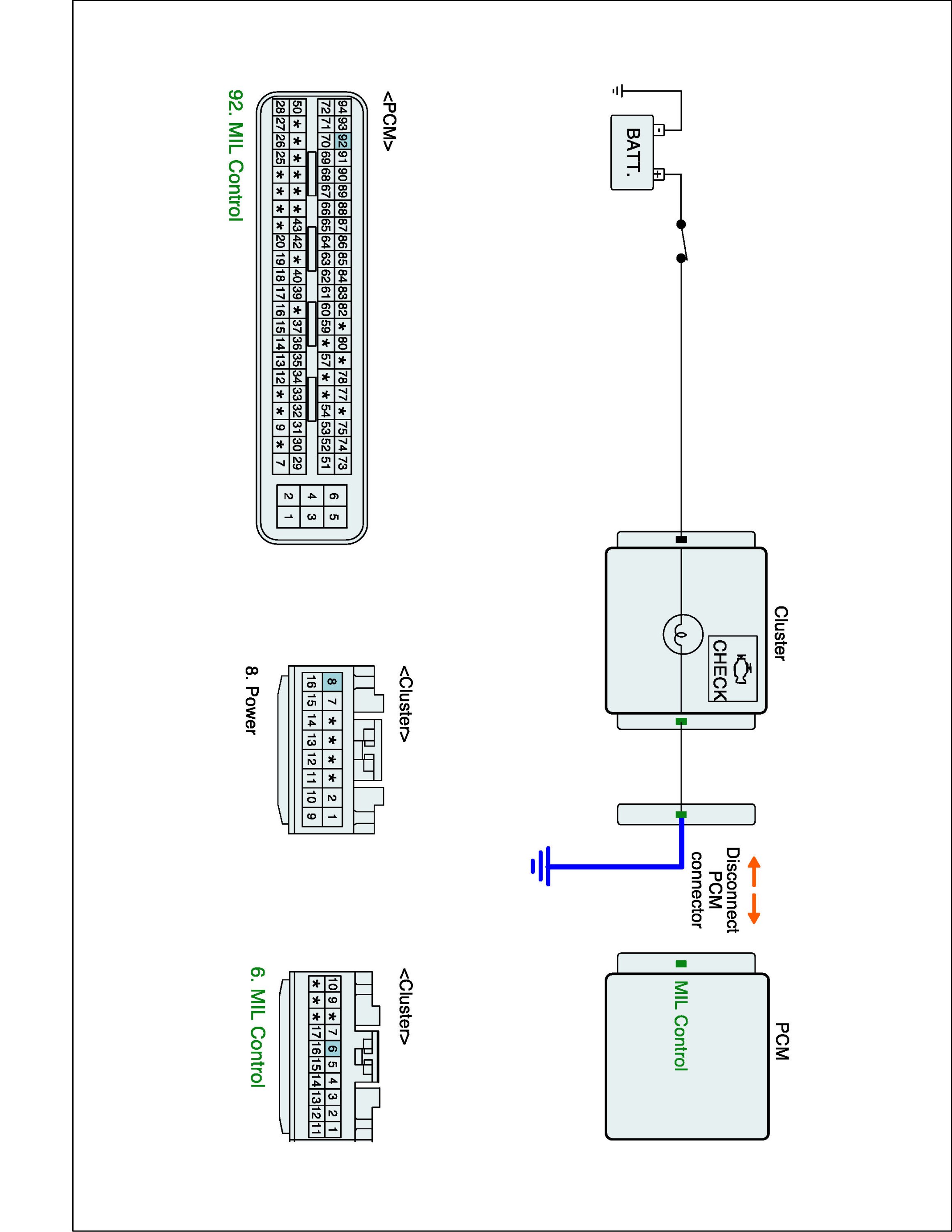

2. Disconnect PCM connector
3. Ignition "ON" & Engine "OFF"
4. Using a suitable wire, jumper the terminal 92 of the PCM harness connector to chassis ground.

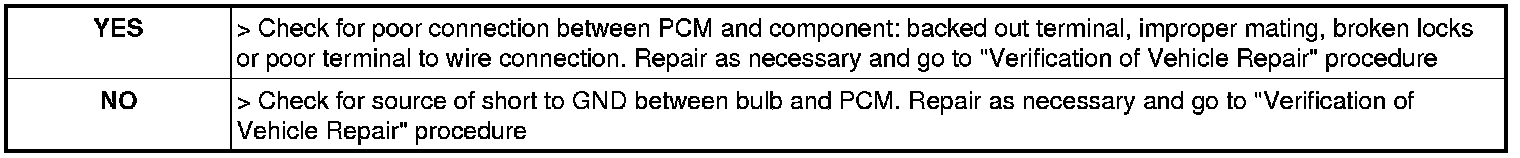

5. Is MIL bulb illuminated?
