Wiper Motor: Service and Repair

Removal

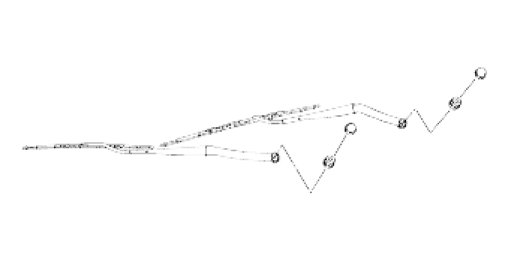

1. Remove the wiper arm




(1) Remove the wiper arm cap.
(2) Loosen the wiper arm nut (2).
2. Remove the cowl top cover.




(1) Remove the fastener of cowl top cover.
(2) Remove the cowl top cover.

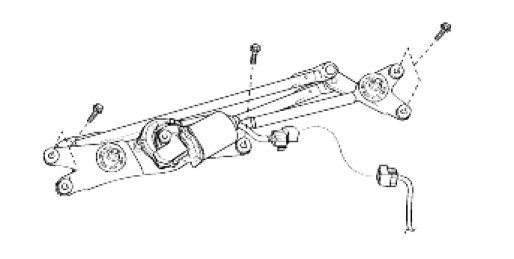

3. Remove the wiper motor and link assembly.




(1) Remove the bolt (5) of wiper link assembly.
(2) Disconnect the wiper motor connector.


Installation

1. Install the wiper motor and link assembly.
(1) Install the bolt of wiper link assembly.

Tightening torque :
7 - 11 Nm (0.7 - 1.1 kg-m, 5.1 - 8.0 lb-ft)


(2) Connect the wiper motor connector.
2. Install the cowl top cover.
(1) Install the fastener of cowl top cover.
3. Install the wiper arm.
(1) Align the wiper arm and blade at the original position.
(2) Tighten the nut (2) of wiper arm.

Tighten torque :
28 - 33 Nm (2.8 - 3.3 kg-m, 20 - 24 lb-ft)


(3) Install the cap of wiper arm.
