Repair Procedures (A5HF1)

REMOVAL

1. Remove the center console.

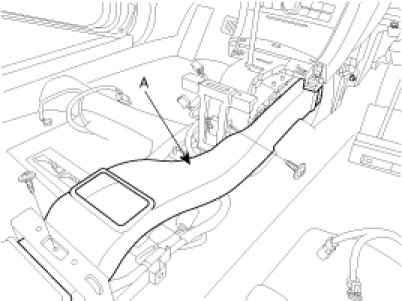

2. Remove the air duct (A).

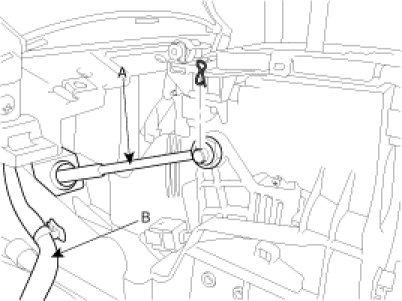

3. Remove the shift cable (A) and wire (B) from the shift lever assembly.

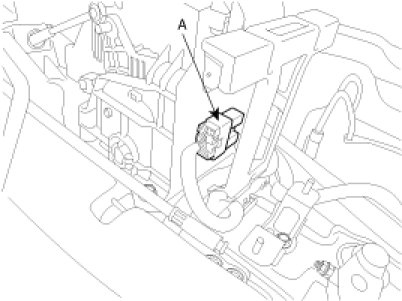

4. Remove the sport mode connector (A).

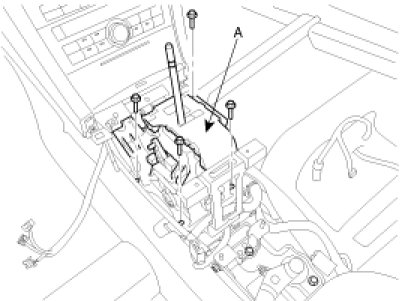

5. Remove the shift lever assembly (A).

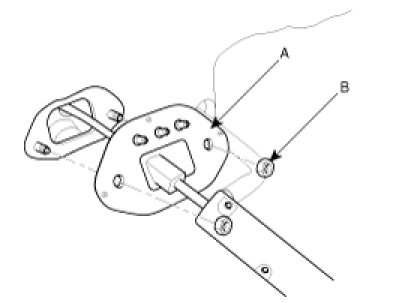

6. Remove the retainer (A) and the nuts (B).





NOTE:
In case, remove the crush pad and cowl cross bar.

7. Remove the shift cable from the transaxle assembly.

INSTALLATION

1. Install the retainer (A) and the nuts (B).

TORQUE : 8-12Nm(0.8-1.2kgf.m, 5.8-8.6lb-ft)







NOTE:
In case, install the crush pad and cowl cross bar.

2. Install the shift lever assembly (A).

TORQUE: 9-14Nm(0.9-1.4kgf.m, 6.5-10.1lb-ft)






3. Install the sport mode connector (A).




4. Install the shift cable (A) and the wire (B) to the shift lever assembly.





CAUTION:
Install the shift cable to the transaxle assembly before installing the shift cable to the shift lever assembly.

5. Install the air duct (A).




6. Install the center console.
7. Install the shift cable to the transaxle assembly.

TORQUE : 8-12Nm(0.8-1.2kgf.m, 5.8-8.6lb-ft)
