Reassembly

REASSEMBLY

1. Install the front shock absorber to SST (09546-26000).
2. Assemble the components of the front strut assembly in sequence.

CAUTION:

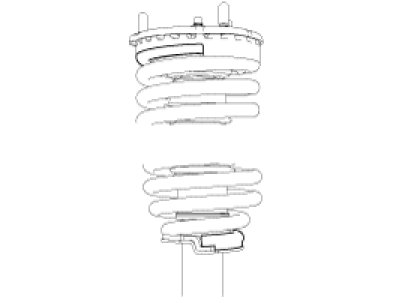

After seating the upper and lower ends of the coil spring in the upper and lower spring seat grooves correctly, tighten new self-locking nut temporarily.




Align the assembling mark and fork bracket protrusion (A) and then tighten the self-locking nut as illustration below.
