Repair Procedures









REMOVAL

1. Remove the rear wheel & tire.

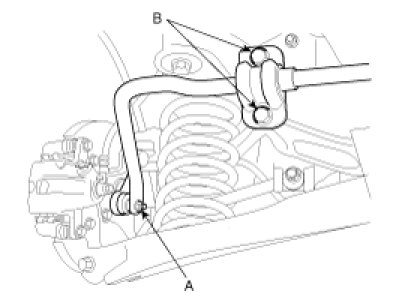

2. Disconnect the rear stabilizer bar with link by loosening the nut (A).
3. Remove the rear stabilizer bar from the rear cross member by loosening the bracket mounting bolts (B).






INSTALLATION

1. Install the rear stabilizer bar to the rear cross member by tightening the bracket mounting bolts (B).

Tightening torque Nm (kgf.m, lb-ft):
45 - 55 (4.5 - 5.5, 3 - 40)


2. Connect the rear stabilizer bar with link and tighten the nut (A).

Tightening torque Nm (kgf.m, lb-ft):
35 - 45 (3.5 - 4.5, 25 - 33)






3. Install the rear wheel & tire.

Tightening torque Nm (kgf.m, lb-ft):
90 - 110 (9.0 - 11.0, 65 - 8)
