Home >> Kia >> 2009 >> Amanti V6-3.8L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Relays and Modules - Steering >> Steering Control Module >> Testing and Inspection

Steering Control Module: Testing and Inspection






Troubleshooting

NOTE:

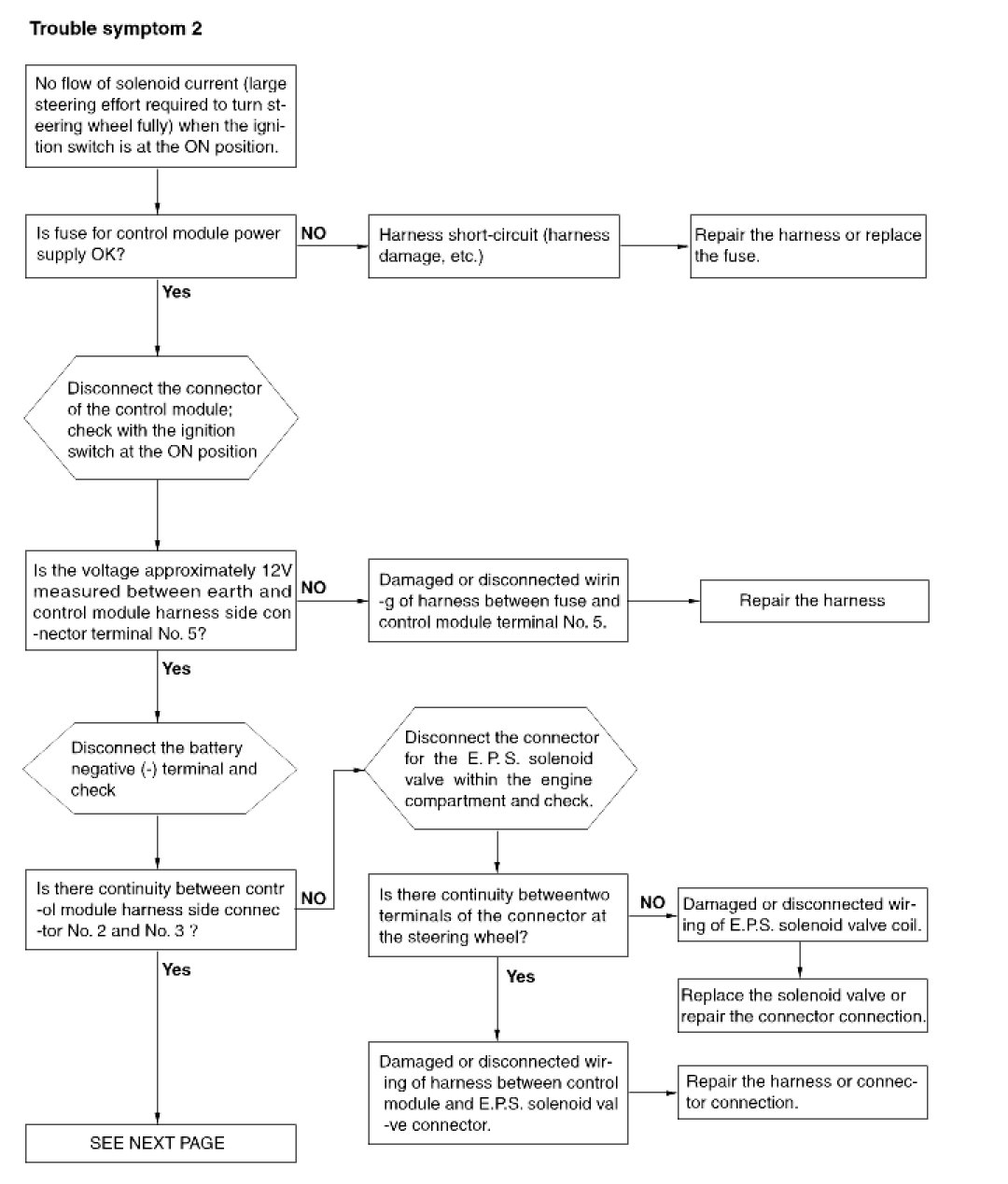

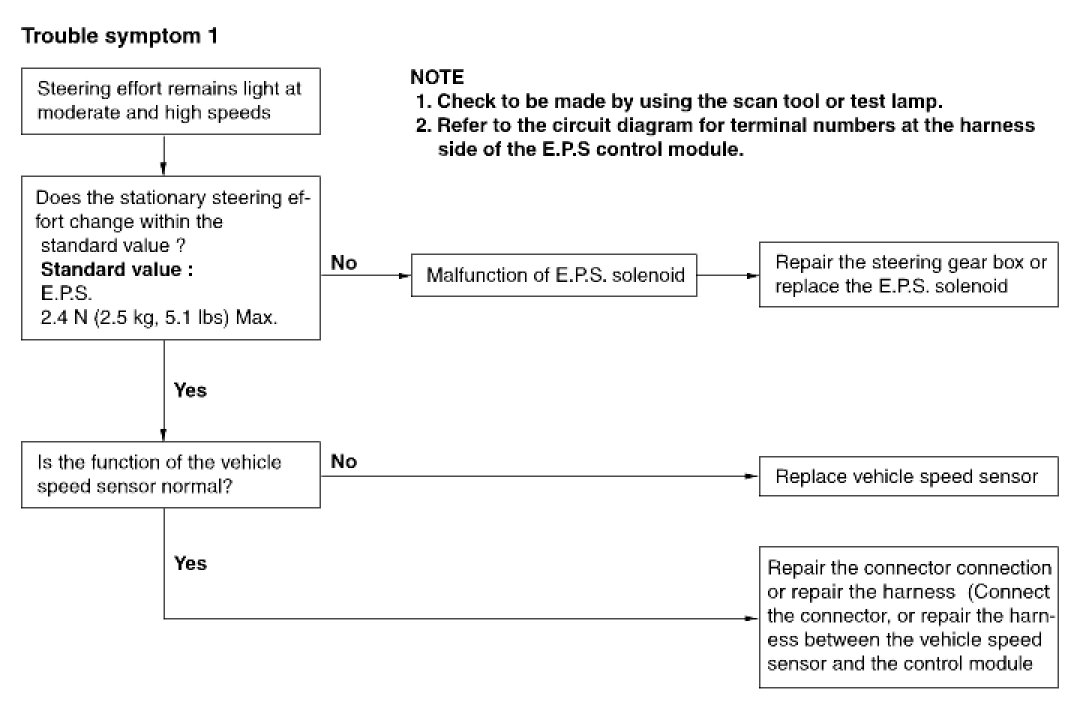

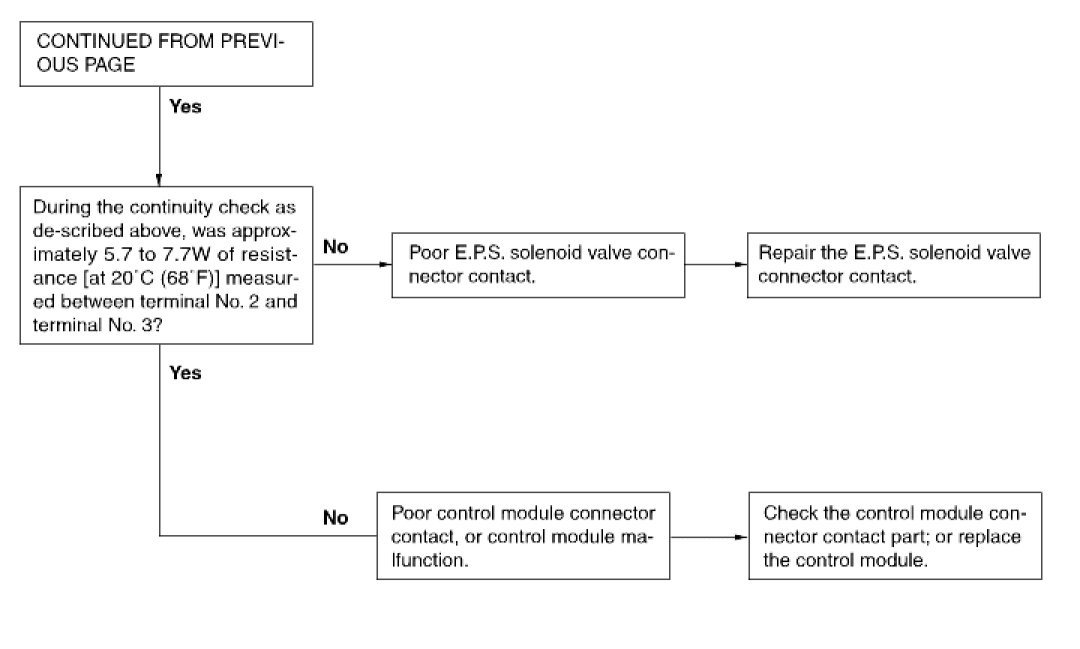

For checking procedures for each problem, refer to the flow-chart type of troubleshooting guide on the following:
