Repair Procedures

REMOVAL

1. Disconnect the starter cable from the B terminal on the solenoid, and the connector from the S terminal.

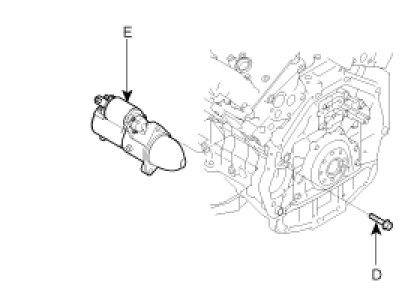

2. Remove the 2 bolts (D) holding the starter, then remove the starter (E).

TORQUE :
49.0 - 63.7 Nm (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft) - starter mounting(D)






3. Installation is the reverse of removal.
4. Connect the battery negative cable to the battery.
