Home >> Kia >> 2009 >> Amanti V6-3.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Fuel Tank Pressure Sensor >> Specifications >> Fuel System

Fuel System






SPECIFICATION

SENSOR

FUEL TANK PRESSURE SENSOR (FTPS)

- Type : Piezo-Resistivity type

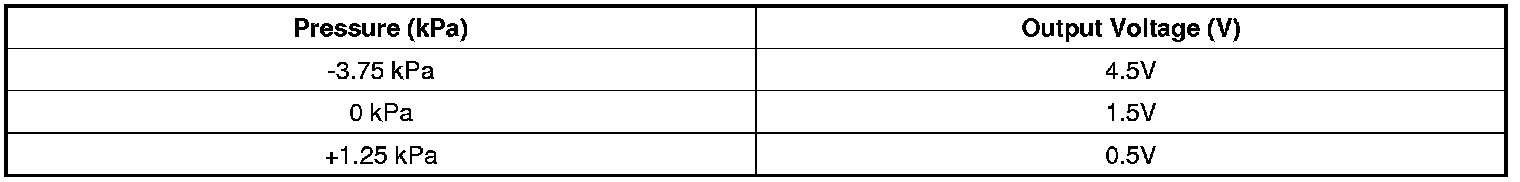

- Specification
