Air Temperature Sensor ( Ambient / Intake ): Specifications






SPECIFICATION

SENSOR

INTAKE AIR TEMPERATURE SENSOR (IATS)

- Type: Thermistor type

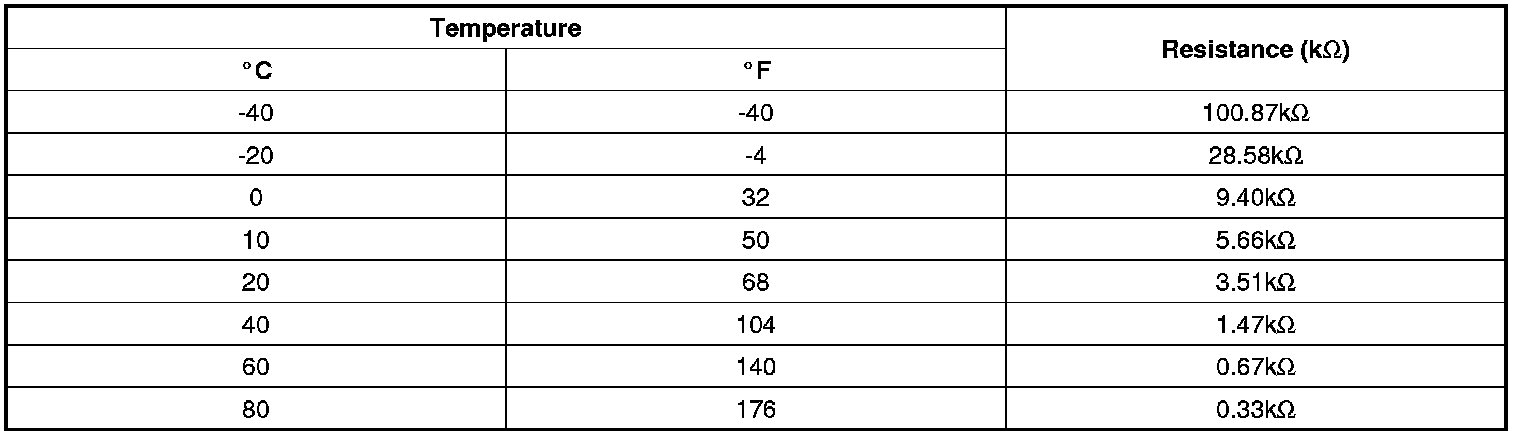

- Specification
