Accelerator Pedal Position Sensor: Specifications

SPECIFICATION

SENSOR

ACCELERATOR POSITION SENSOR (APS)

- Type: Variable resistor type

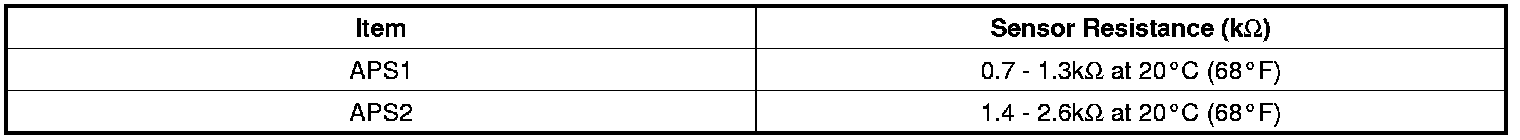

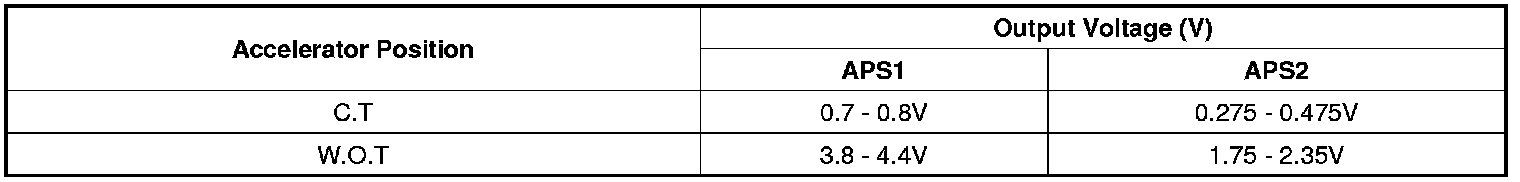

- Specification (When reference voltage = 5.0V)
