Seat Fan Switch: Testing and Inspection

INSPECTION

FRONT AIR VENTILATION SEAT SWITCH
1. Remove the front air ventilation seat switch assembly after removing the center facia panel.

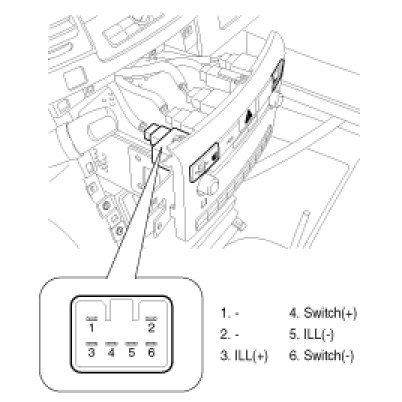

2. Remove the front air ventilation seat switch (Drive, Assist) Connectors(6P).




3. Cheek the resistance between switch connector terminals 4 and 6 at each switch position if the resistance is not as specified, replace the switch.

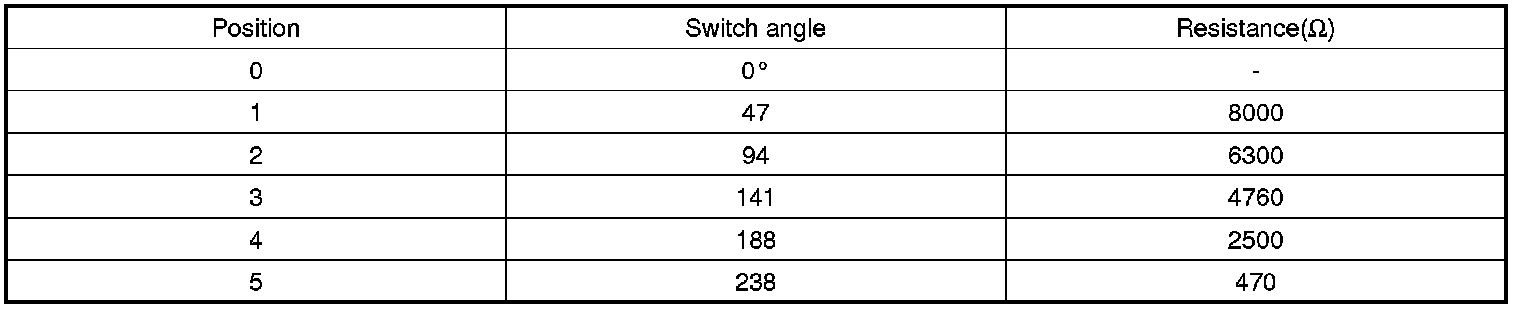

SWITCH(SEAT WARMER ONLY)

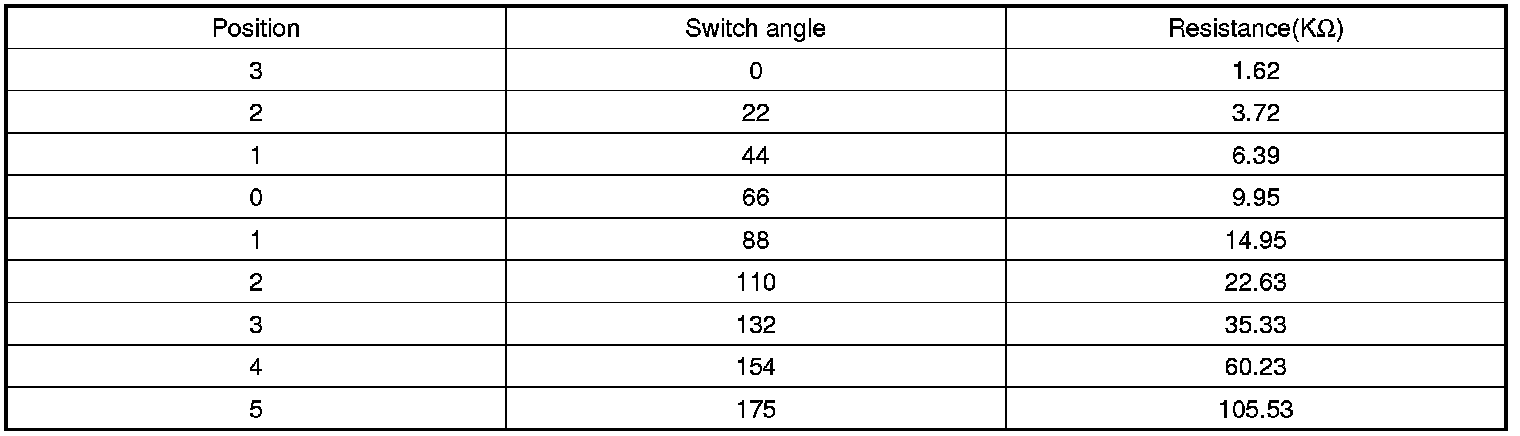

SWITCH(SEAT WARMER AND AIR VENTILATION)
