Fuel Pump: Testing and Inspection

FUEL PRESSURE TEST

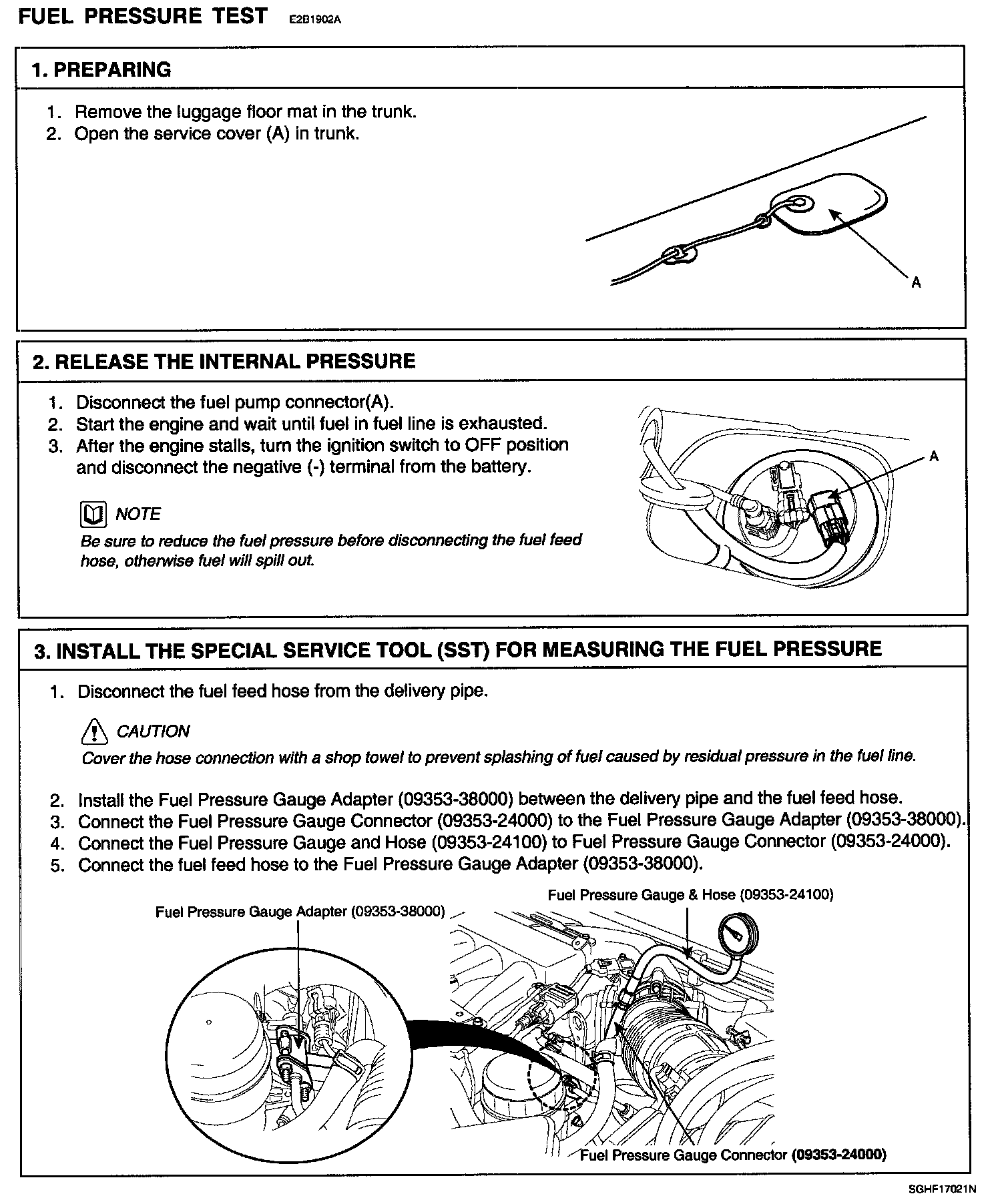

Fuel Pressure Test (Part 1):

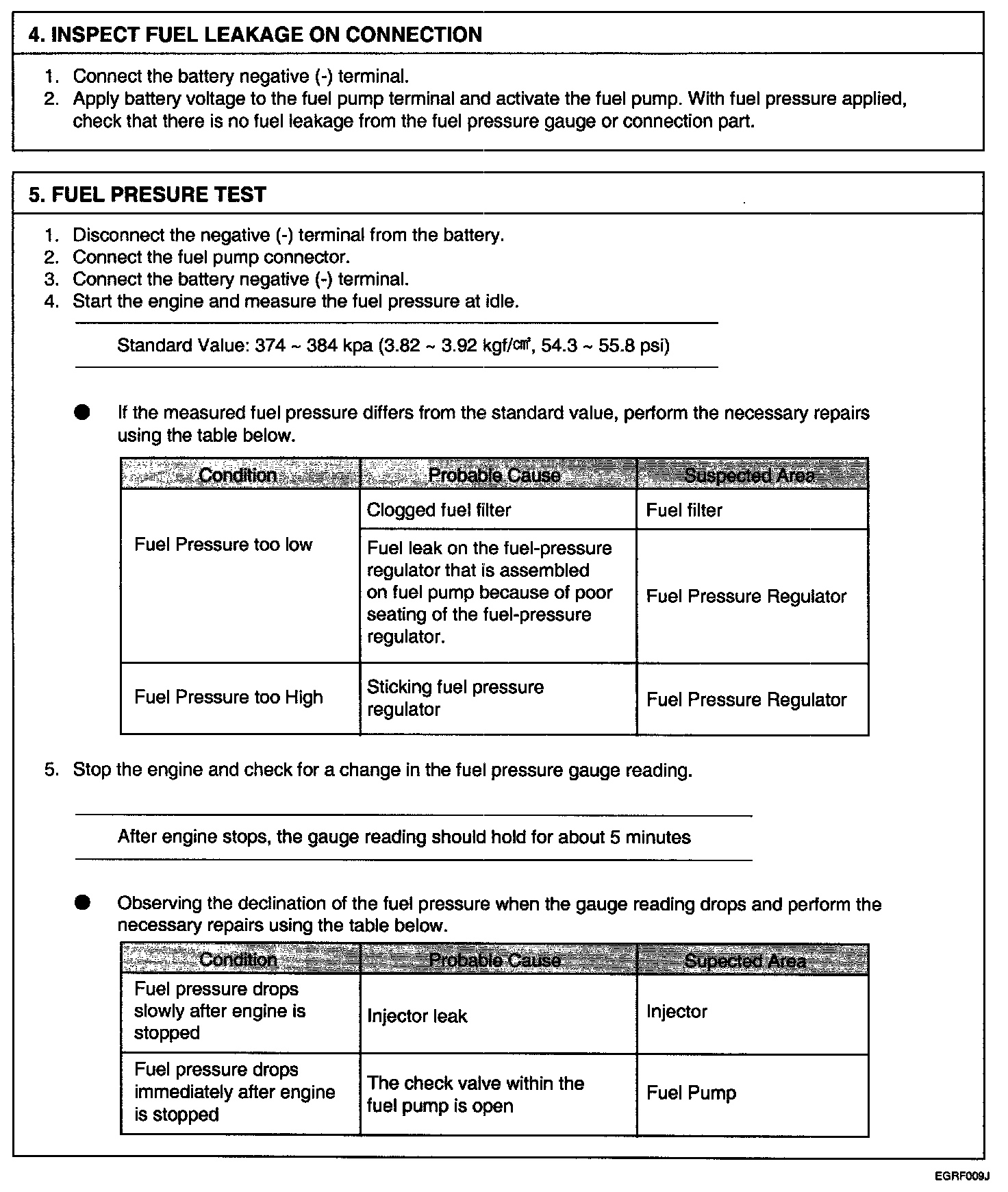

Fuel Pressure Test (Part 2):

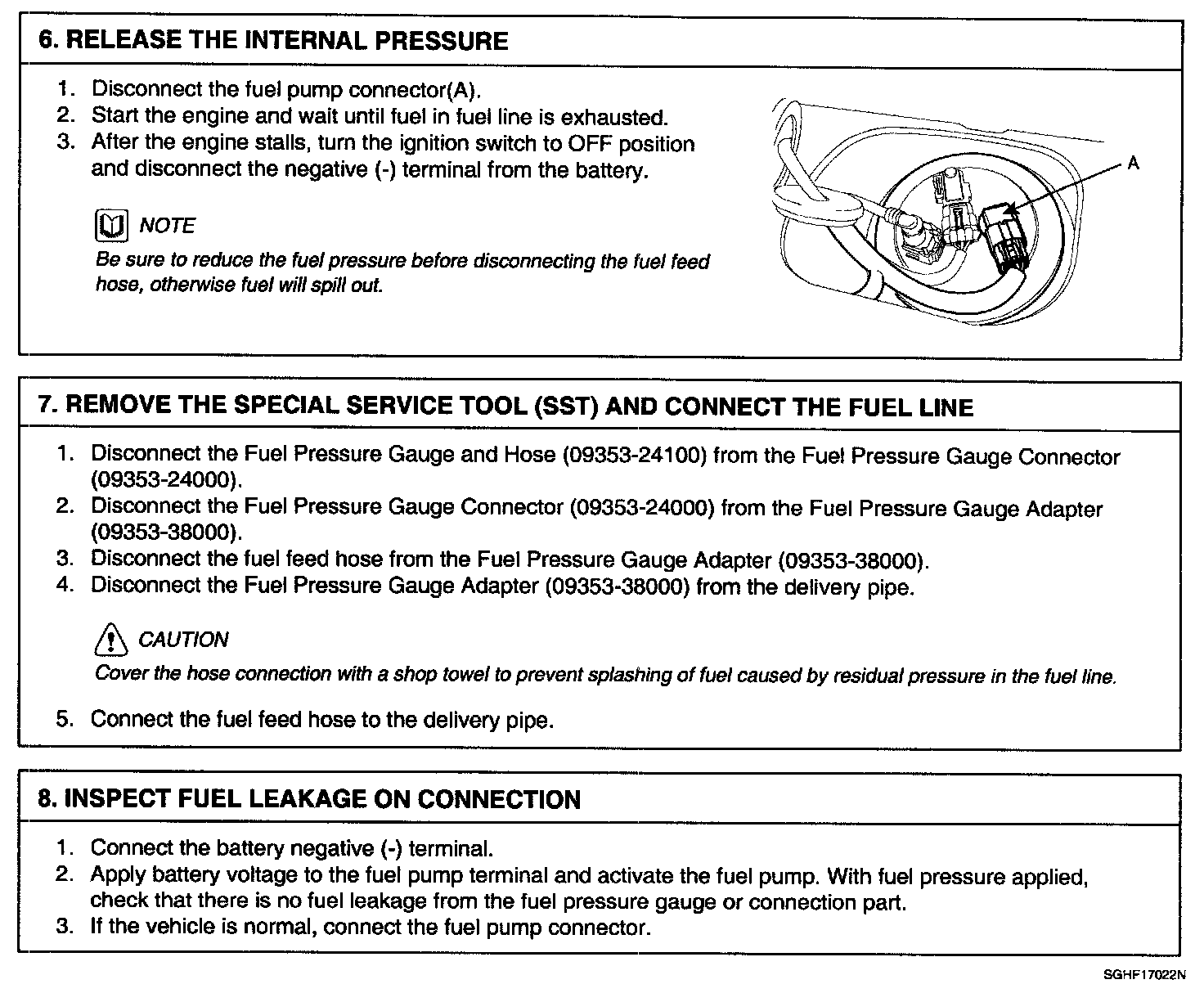

Fuel Pressure Test (Part 3):
