Evaporative Emission Control Canister: Service and Repair

REMOVAL

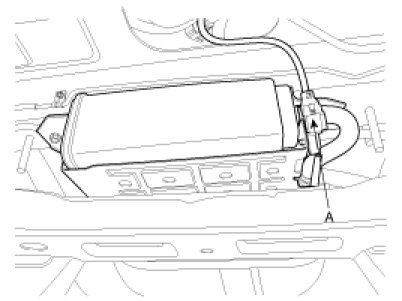

1. Disconnect the canister close valve connector (A).

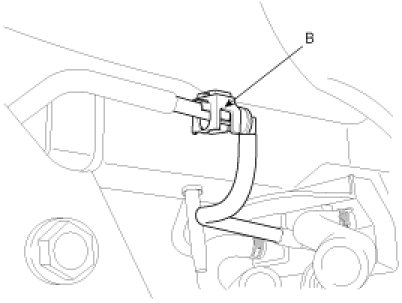

2. Disconnect the vacuum tube quick-connectors (B).

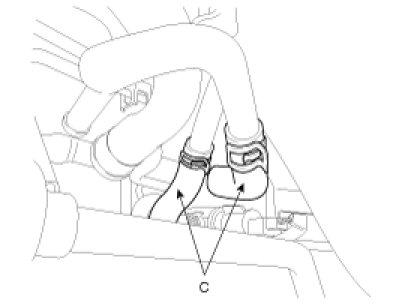

3. Disconnect the canister vacuum hoses (C).




4. Unscrew the mounting bolts (A) and remove the canister assembly.






INSTALLATION

Installation is in reverse order of removal.
