Home >> Kia >> 2009 >> Amanti V6-3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Application and ID

Relay Box: Application and ID

FUSE & RELAY INFORMATION

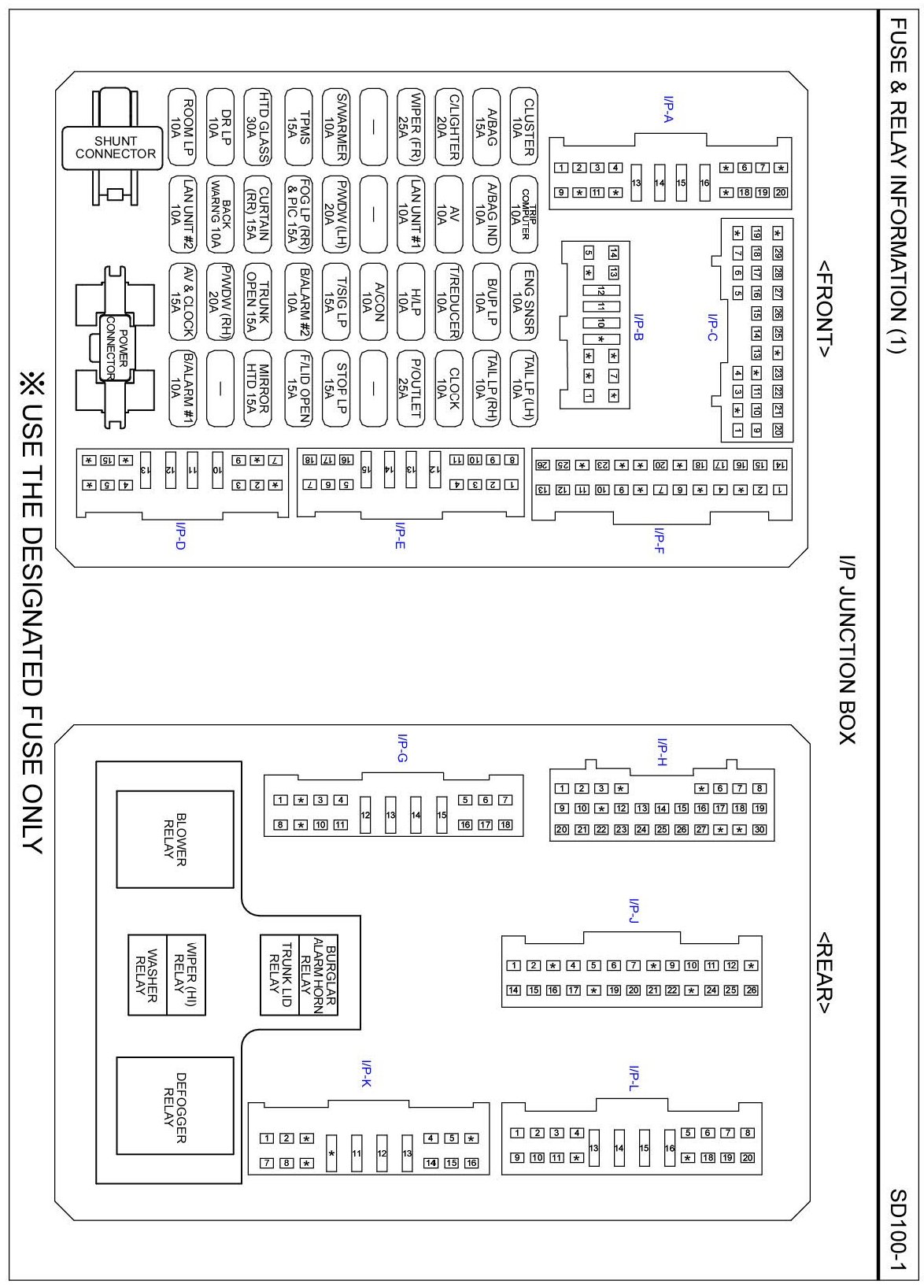

I/P Junction Box Layout View:

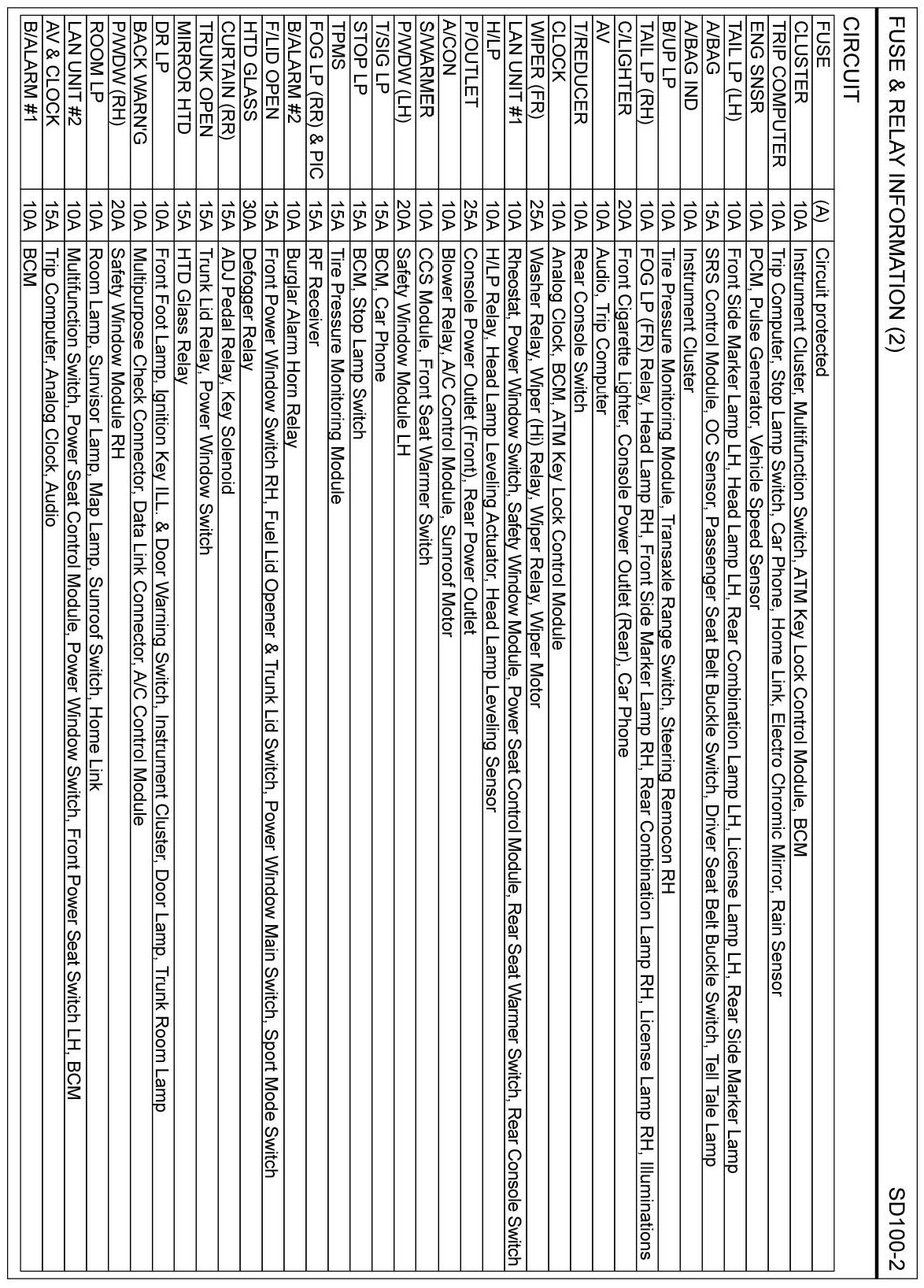

I/P Junction Box Circuit Details:

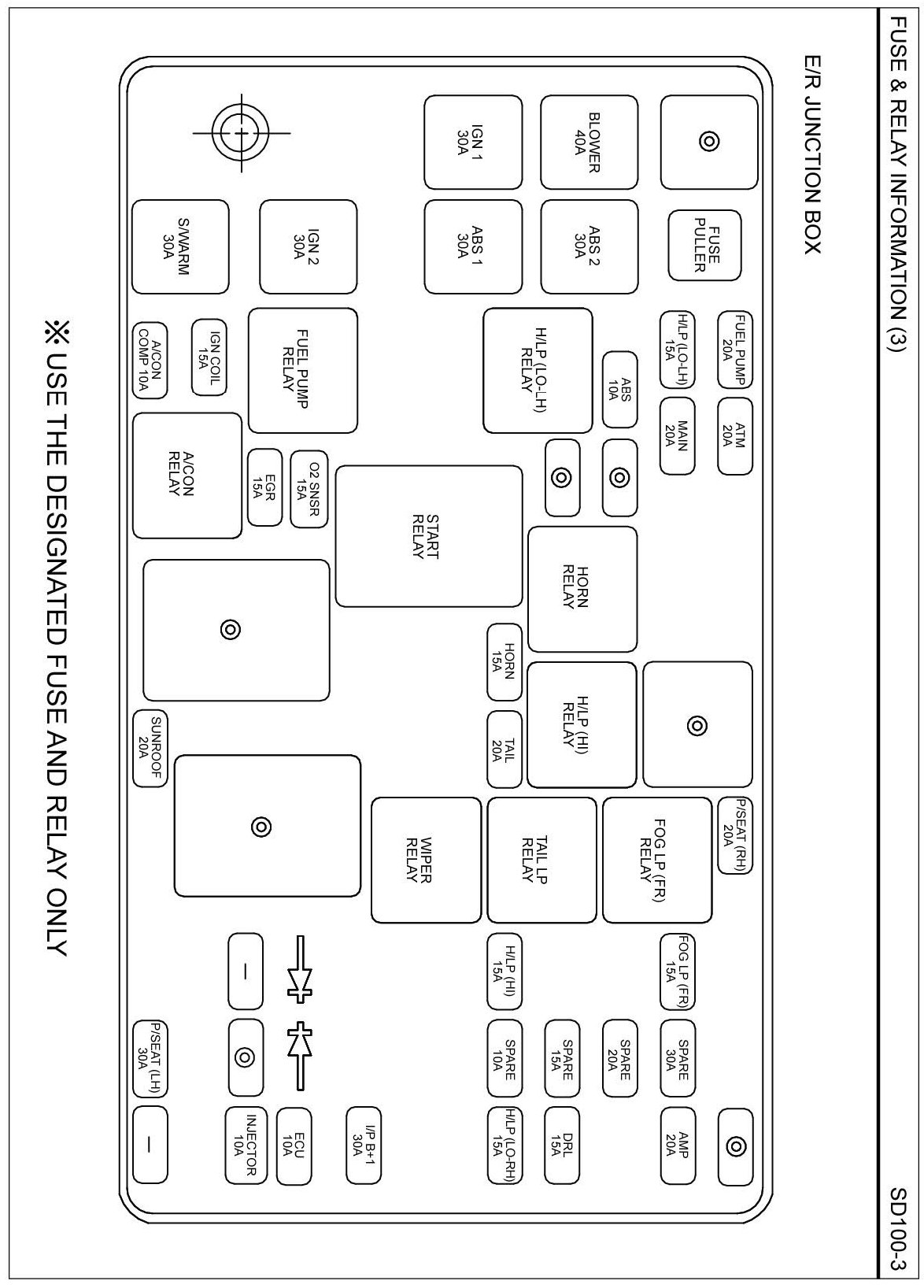

E/R Junction Box Layout View:




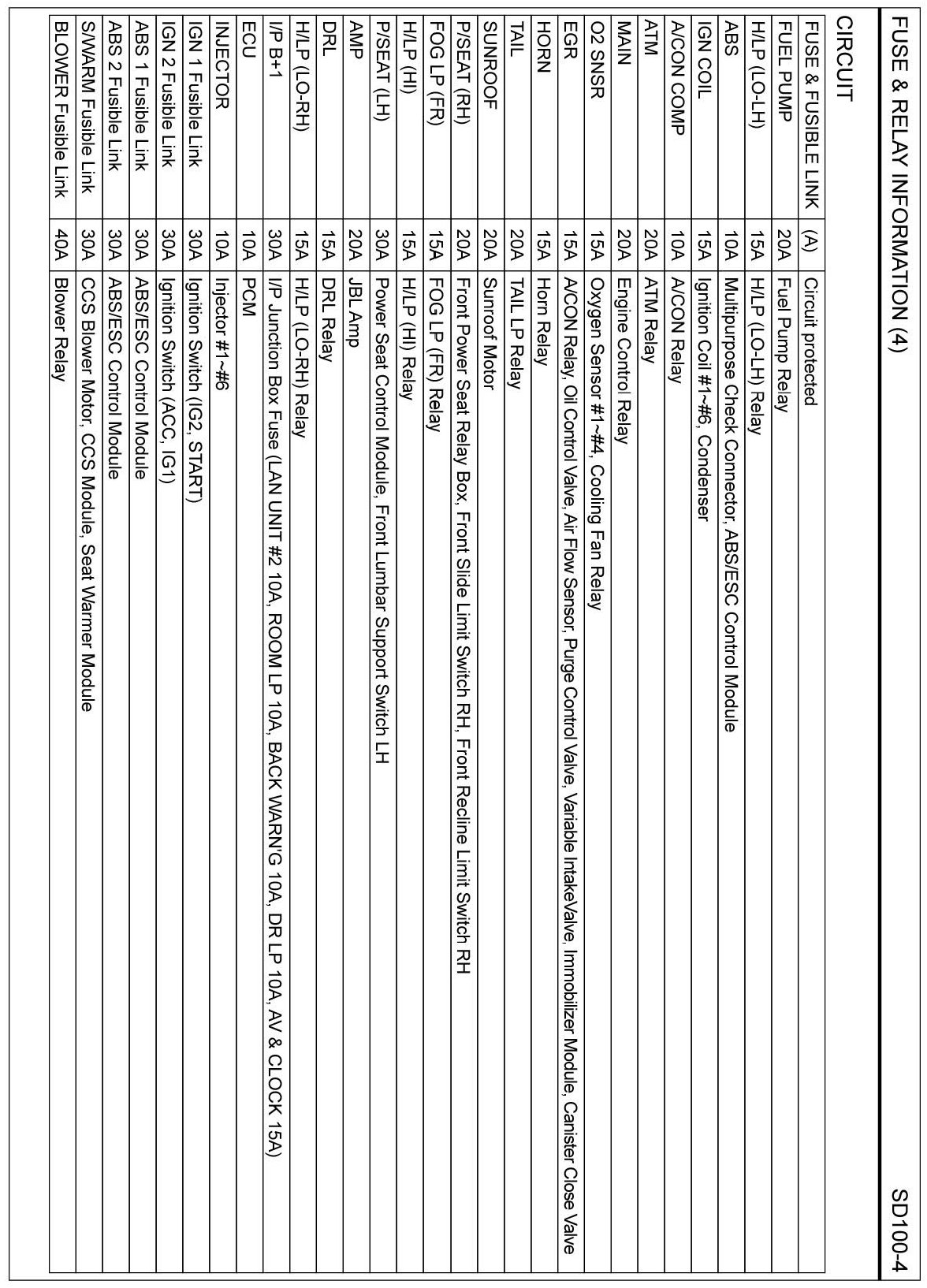

E/R Junction Box Circuit Details:

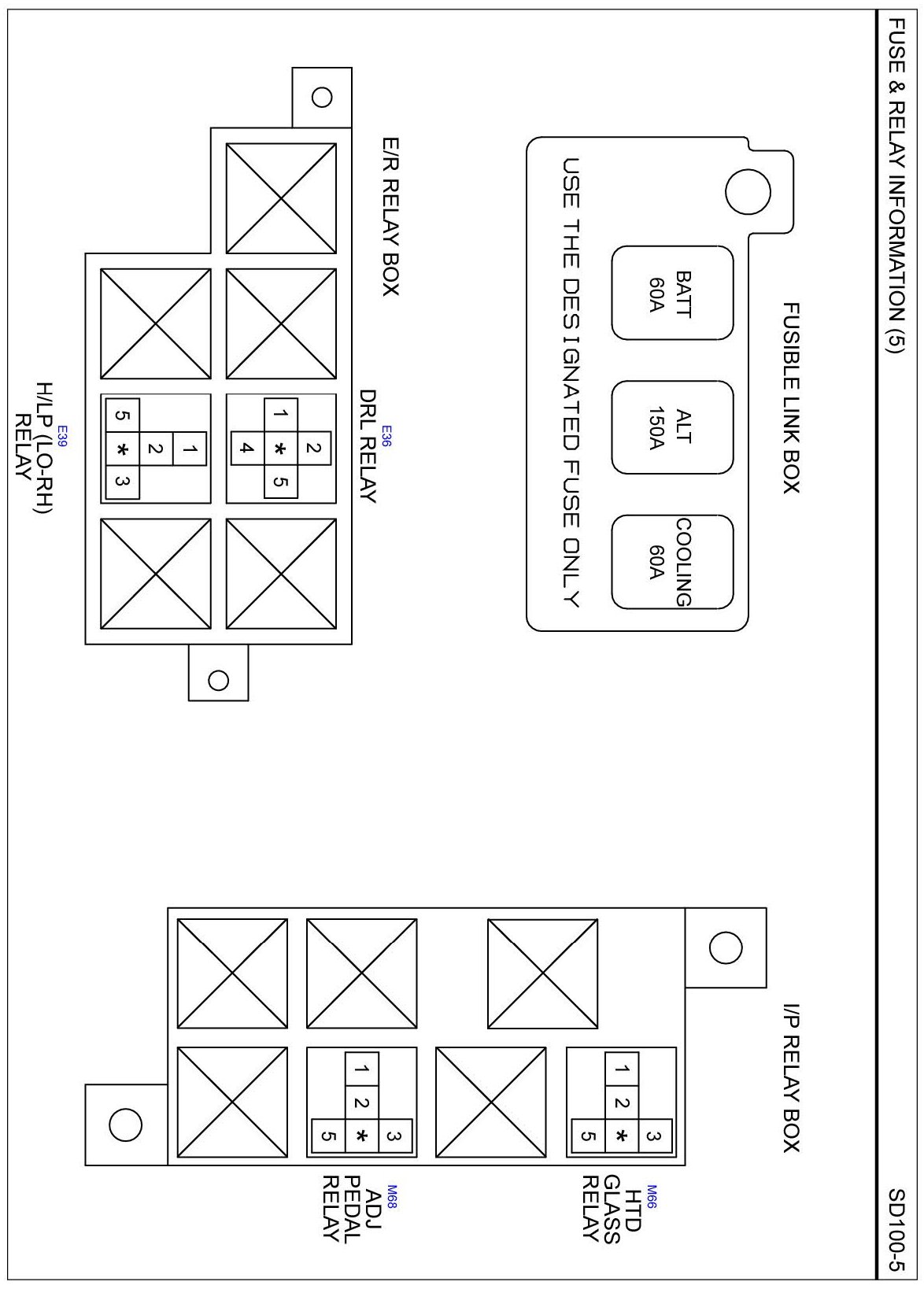

Fuse & Relay Information (5):
