Electrical Diagrams









Schematic Diagram

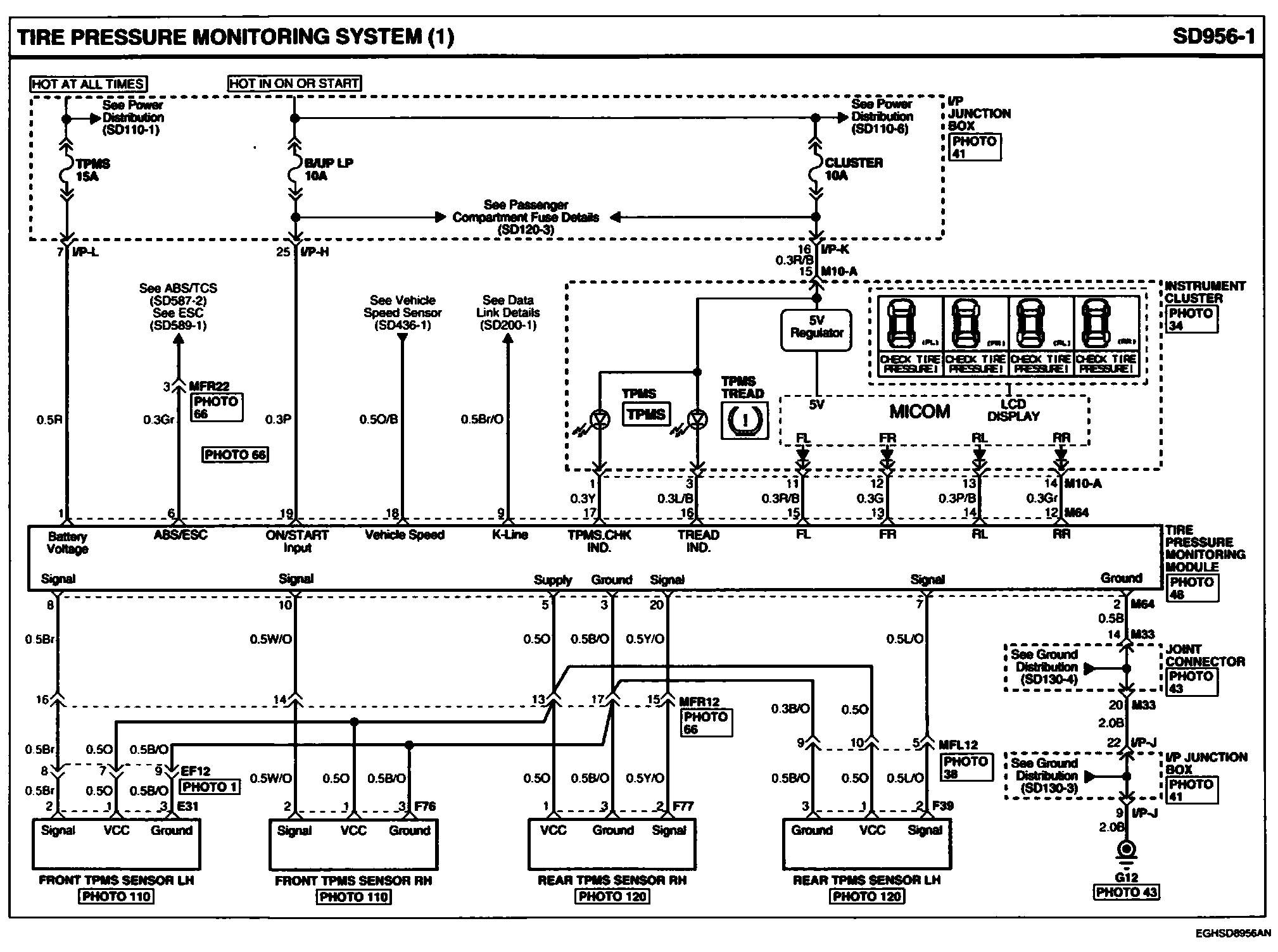

Tire Pressure Monitoring System (1):

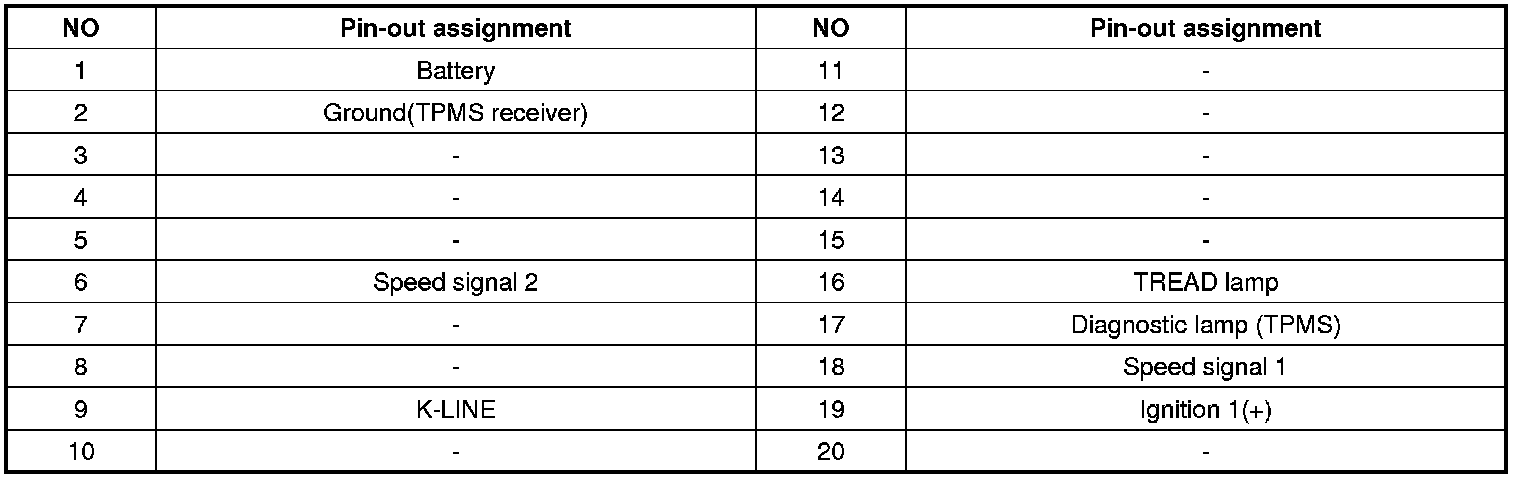

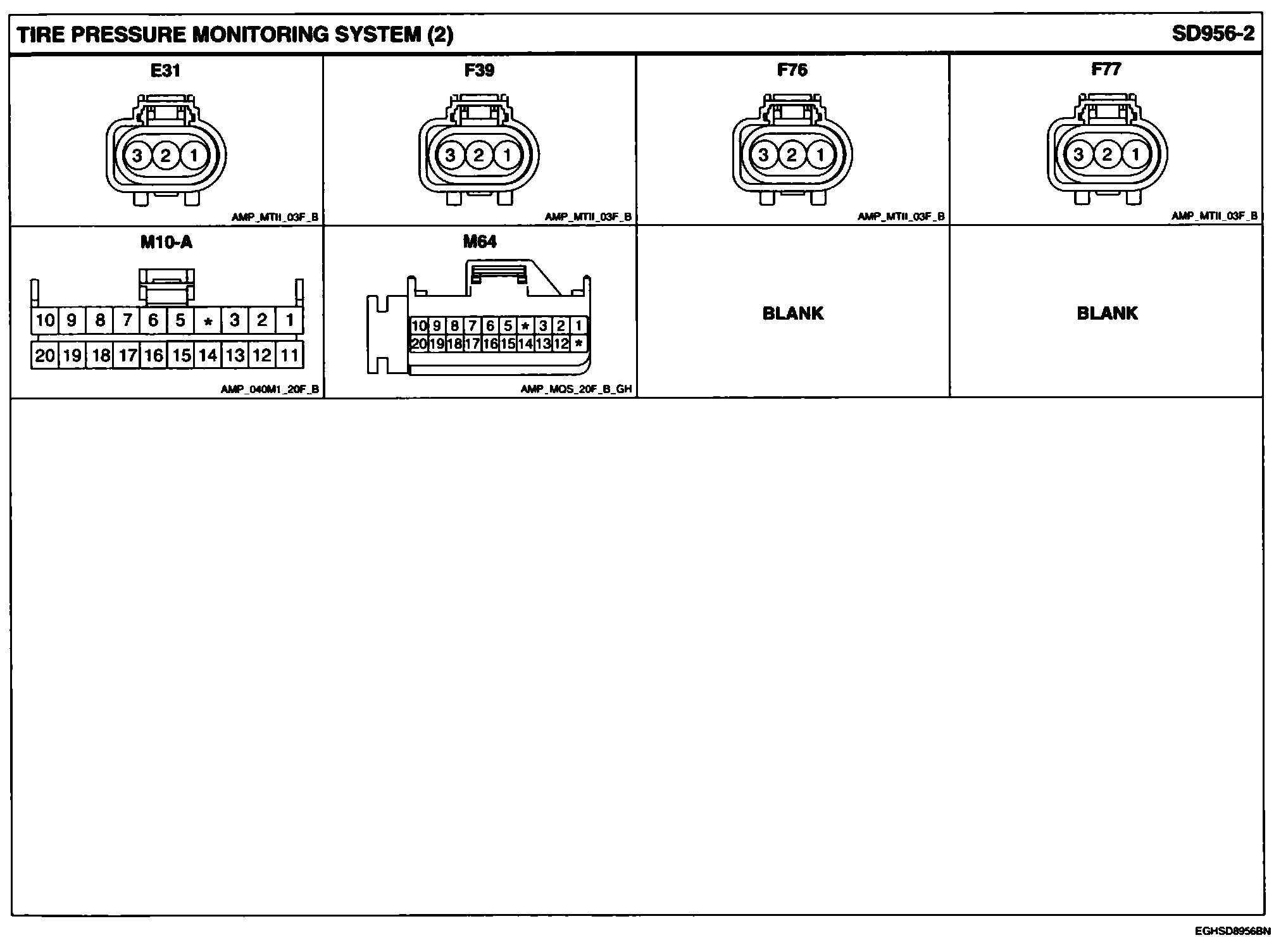

Tire Pressure Monitoring System Connector Pin Outs:

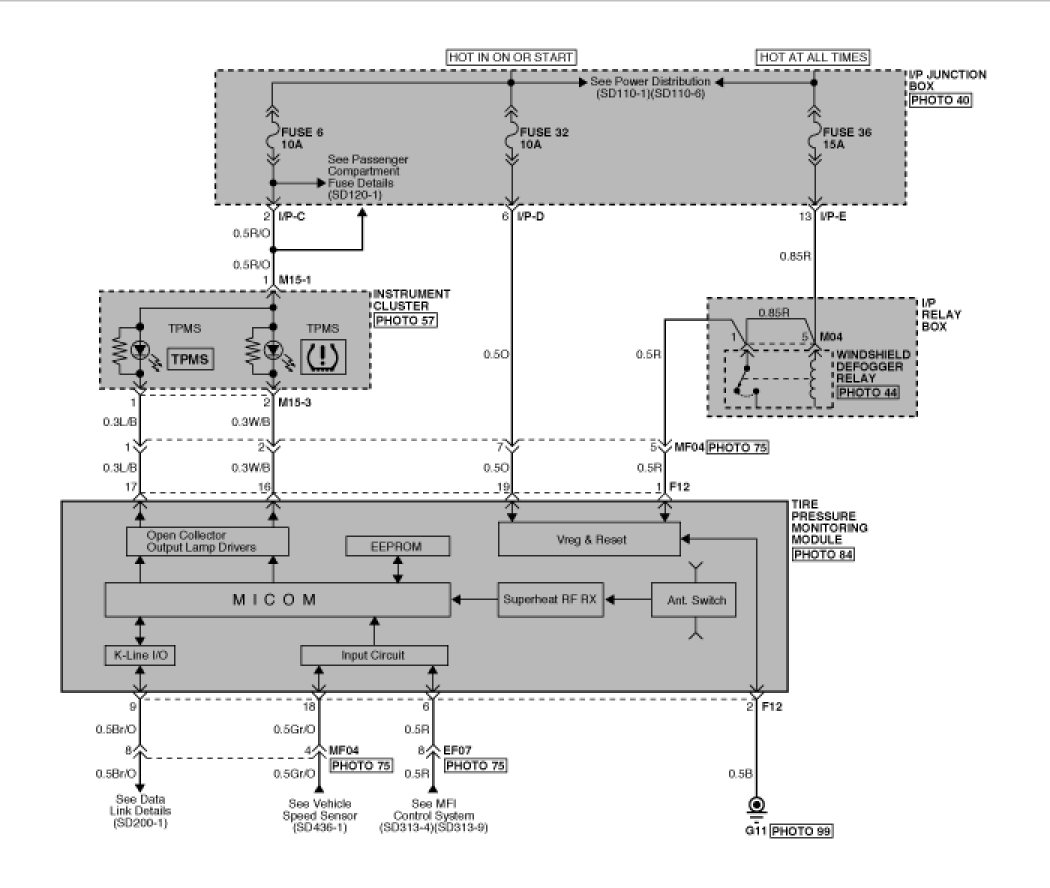

Circuit Diagram
