Repair Procedures

REMOVAL

WATER TEMPERATURE CONTROL ASSEMBLY
1. Drain the engine coolant.
2. Remove air cleaner assembly.
3. Disconnect radiator upper and lower hose(A).




4. Disconnect ECT sensor connector.
5. Disconnect heater hose, water vent hose and water hose from water temperature control assembly.
6. Remove wiring protector.

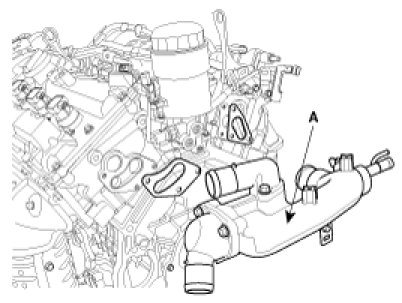

7. Remove water temperature control assembly(A).





INSTALLATION

WATER TEMPERATURE CONTROL ASSEMBLY

NOTE:
Clean the contact face before assembly.

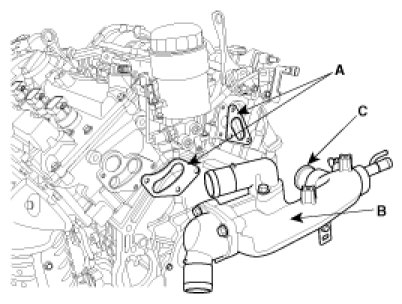

1. Install water temperature control assembly(B) and new gasket(A).

Tightening torque
18.62 - 23.52Nm (1.9 - 2.4kgf.m, 13.74 - 17.36lb-ft)







NOTE:
Use new O-rings(C) when reassembling.

2. Connect water hoses to the water temperature control assembly.
3. Install wiring protector.
4. Connect ECT sensor connector.
5. Connect radiator upper and lower hose(A).




6. Install air cleaner assembly.
7. Fill with engine coolant.
8. Start engine and check for leaks.
9. Recheck engine coolant level.
