Home >> Kia >> 2009 >> Amanti V6-3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Power Window Control Module

Power Window Control Module

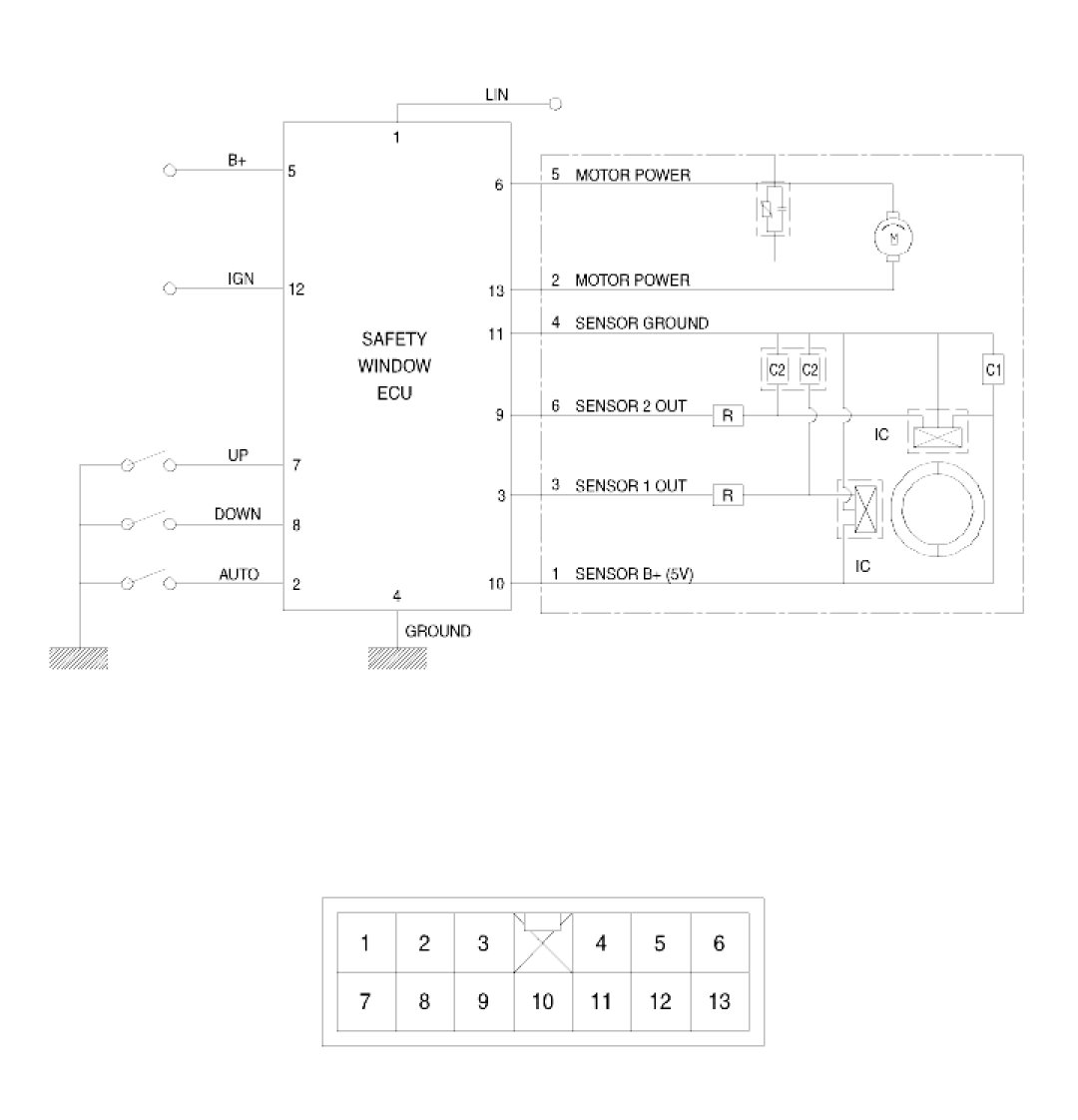

Circuit diagram
