Trip Computer

Trip Computer (1):

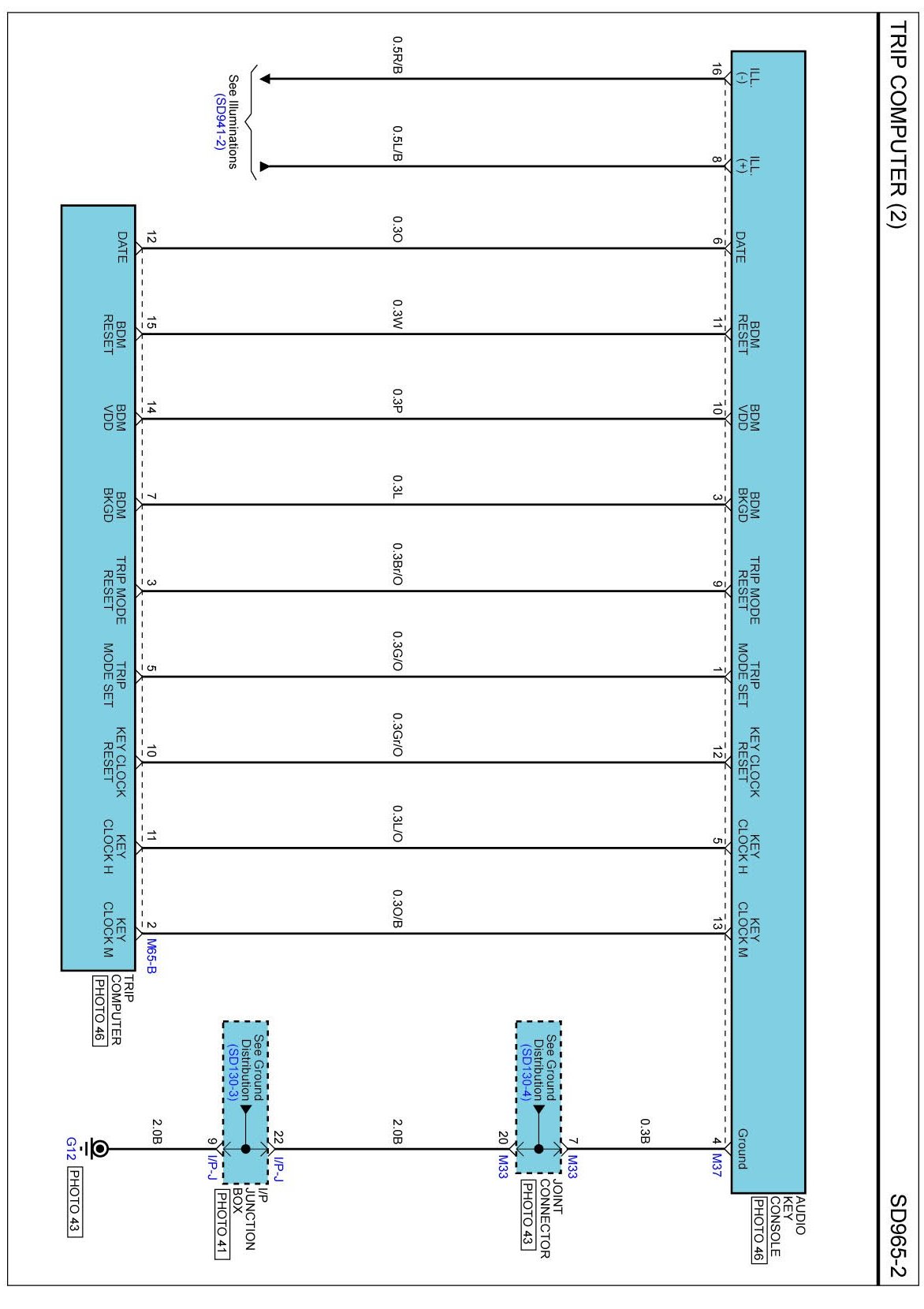

Trip Computer (2):

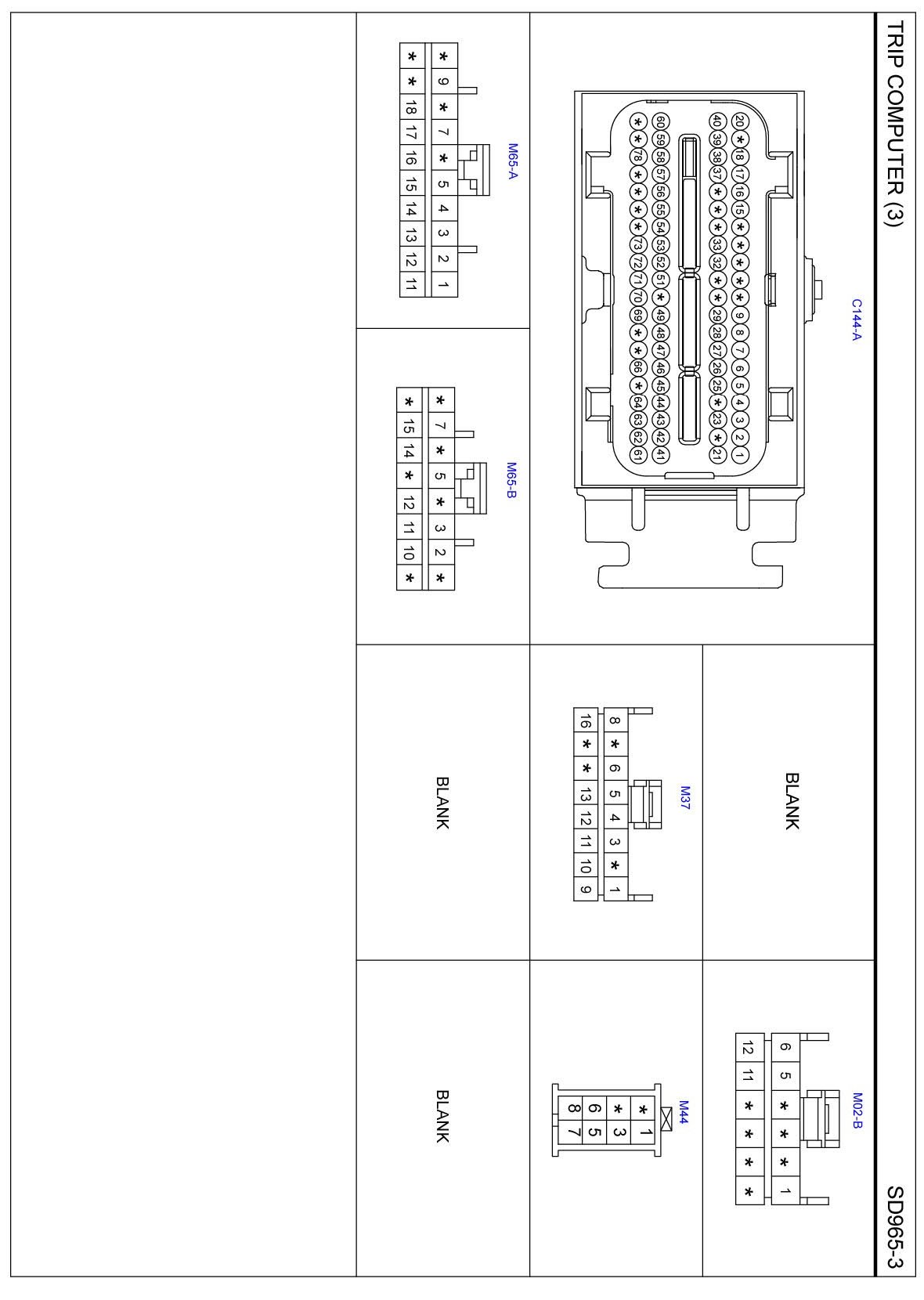

Trip Computer Connector Pin Outs:

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.

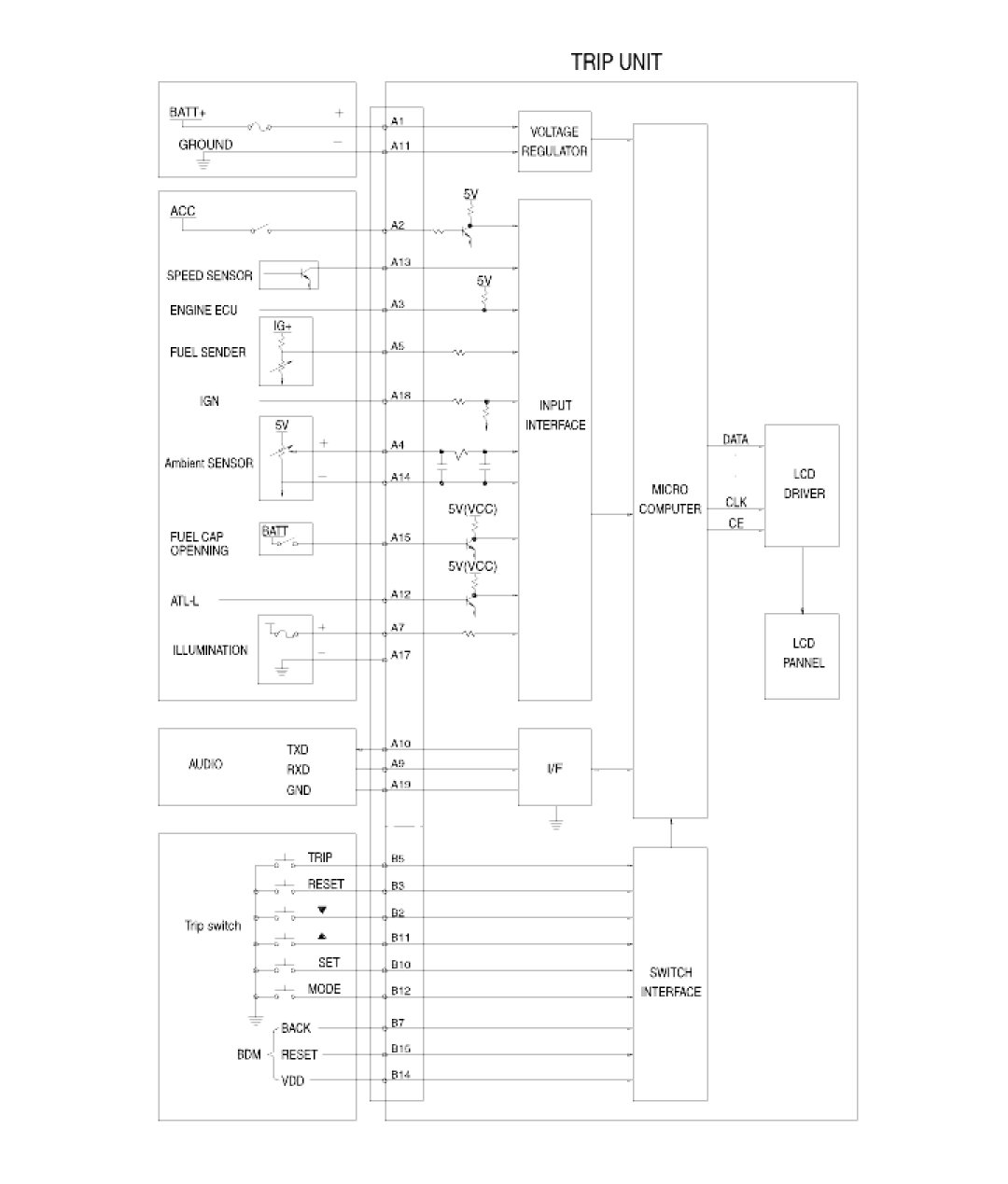

Circuit diagram

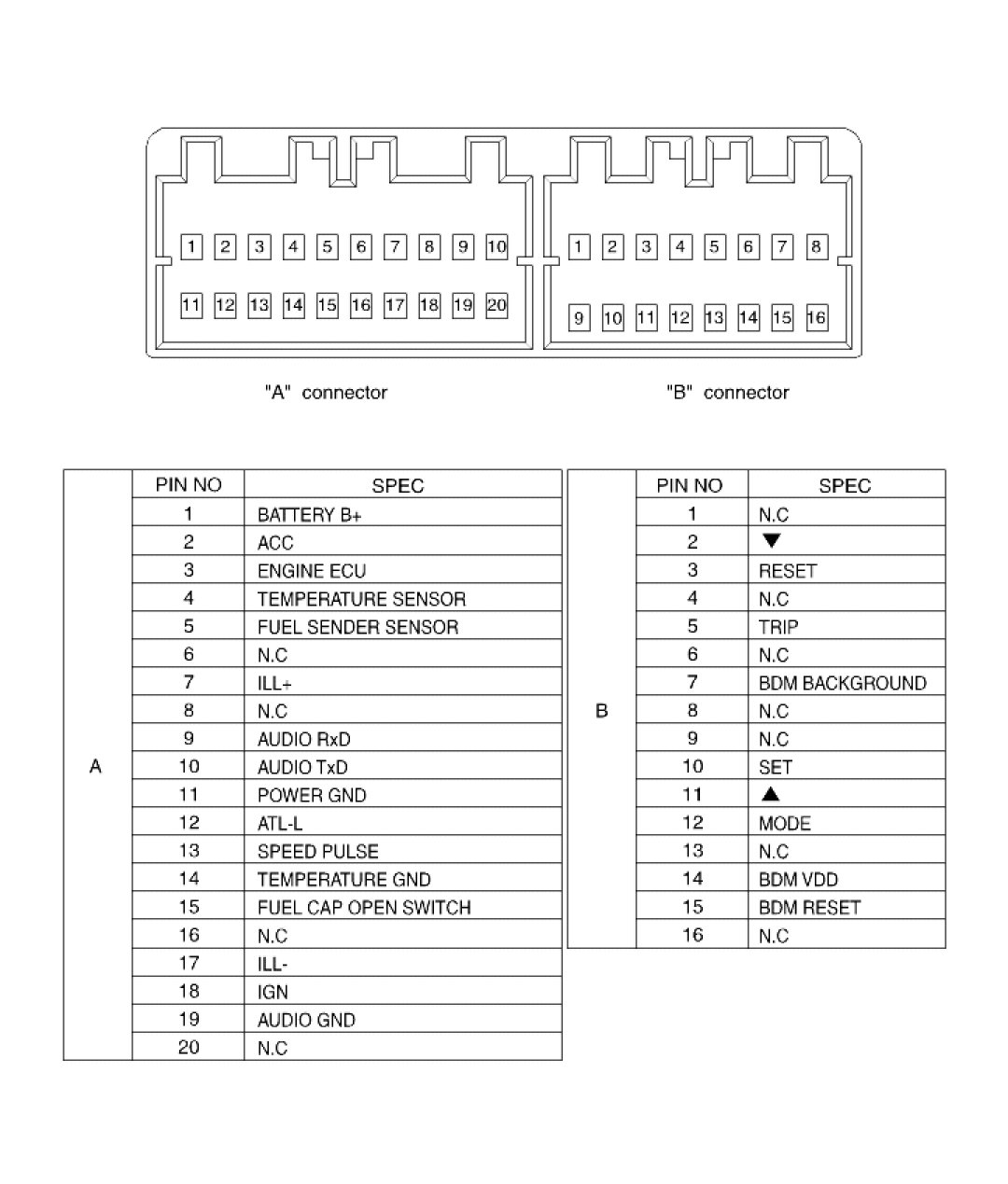

Trip computer connector configuration
