ESP(Electronic Stability Program) System






ESC CONTROL UNIT (HECU)

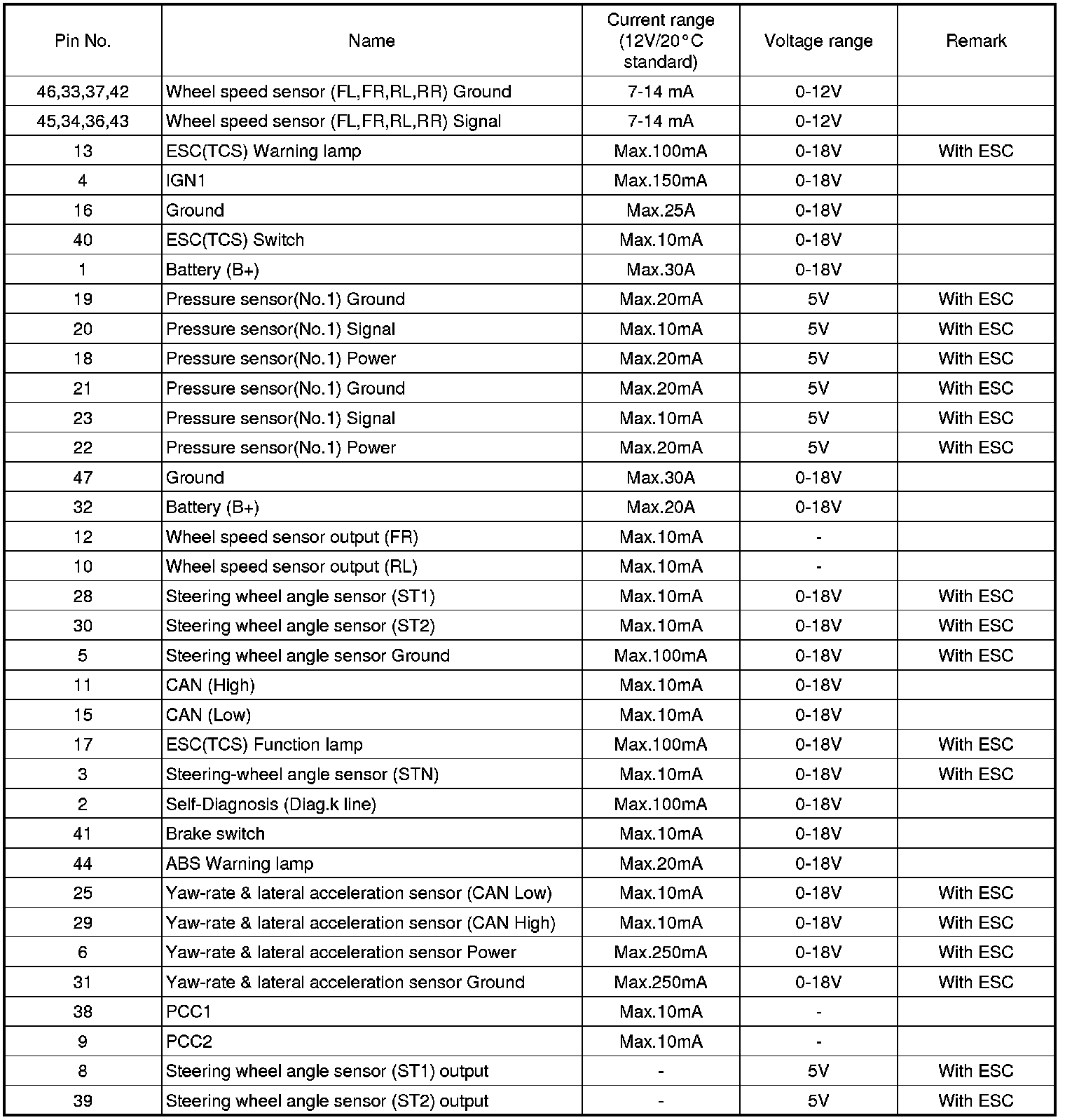

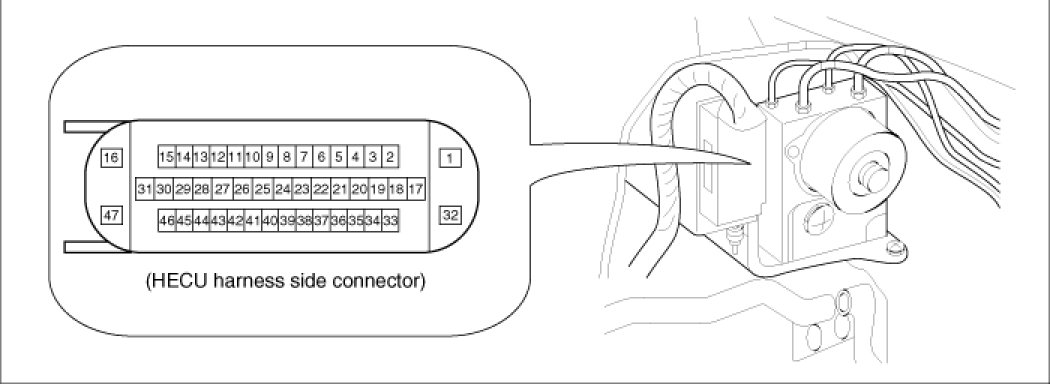

HECU Connector Inspection

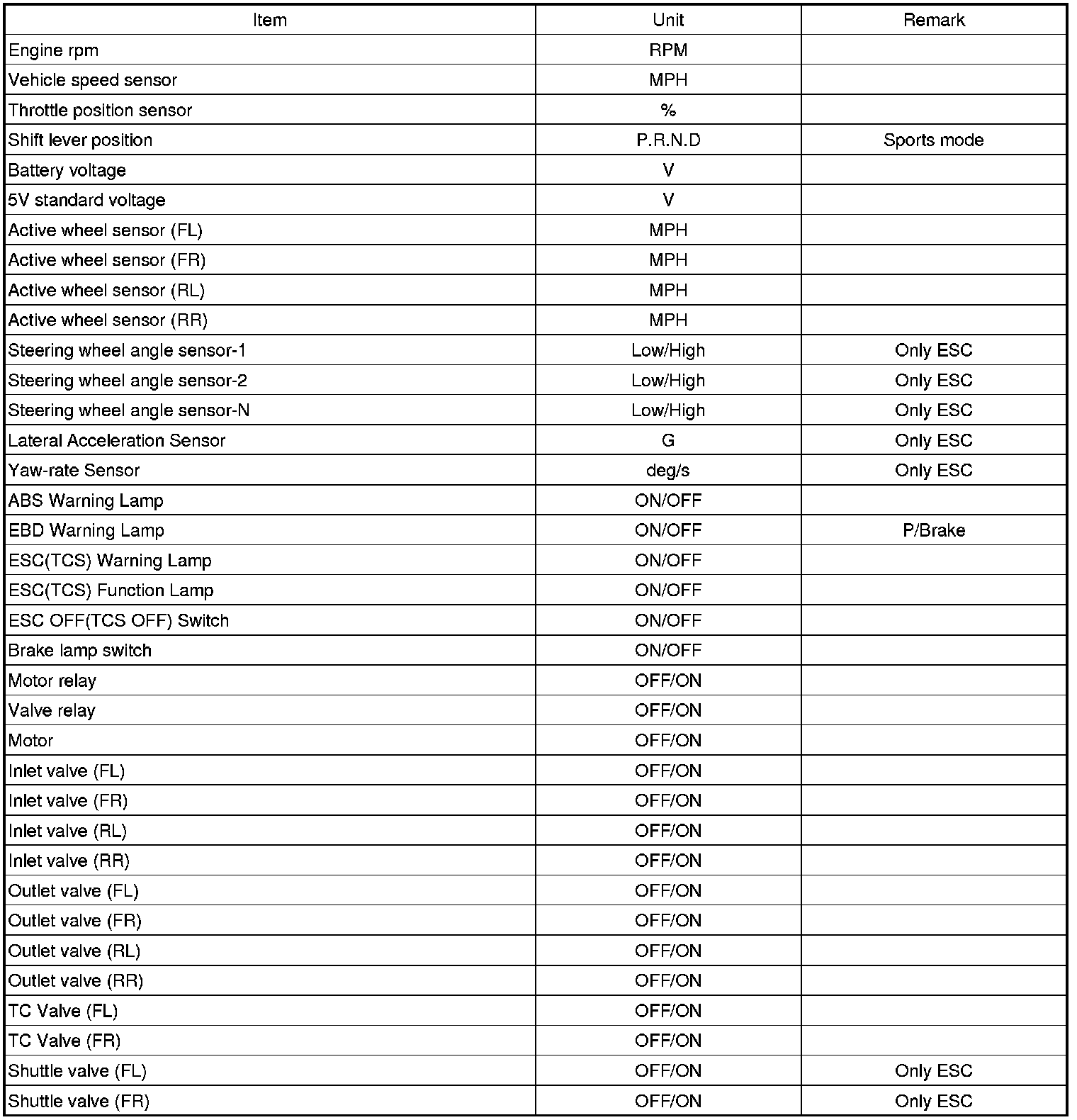

SENSOR OUTPUT DATA

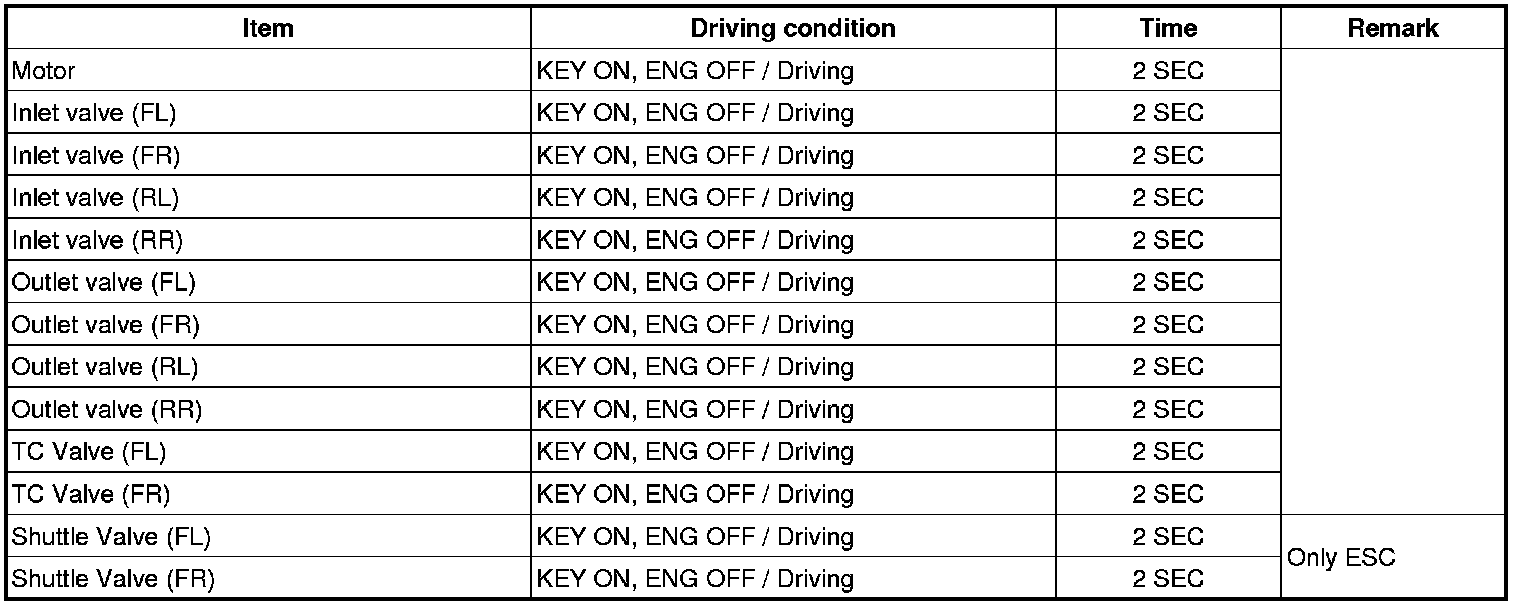

ACTUATOR DRIVING

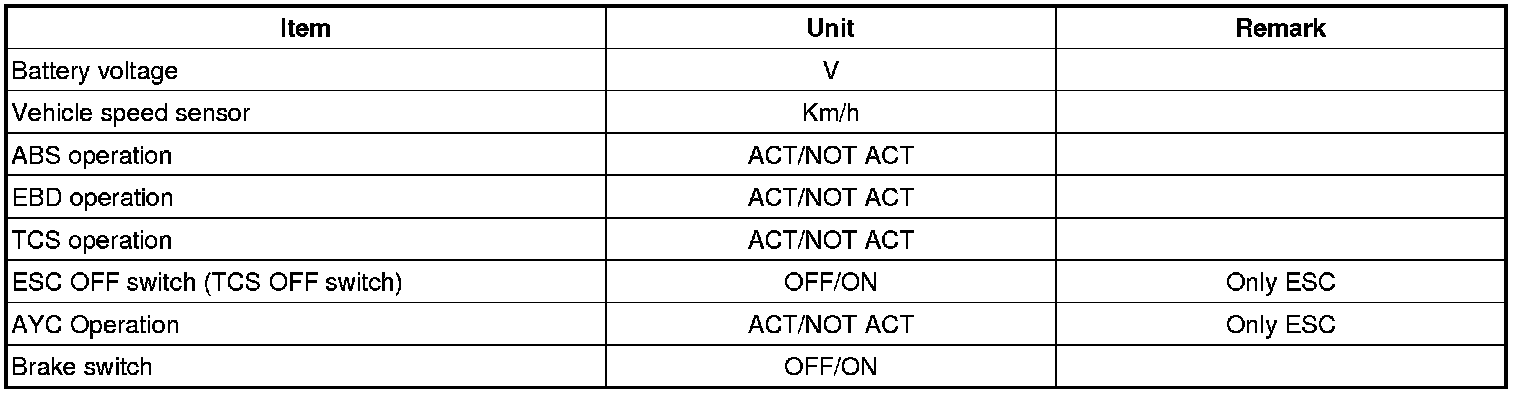

FREEZE FRAME

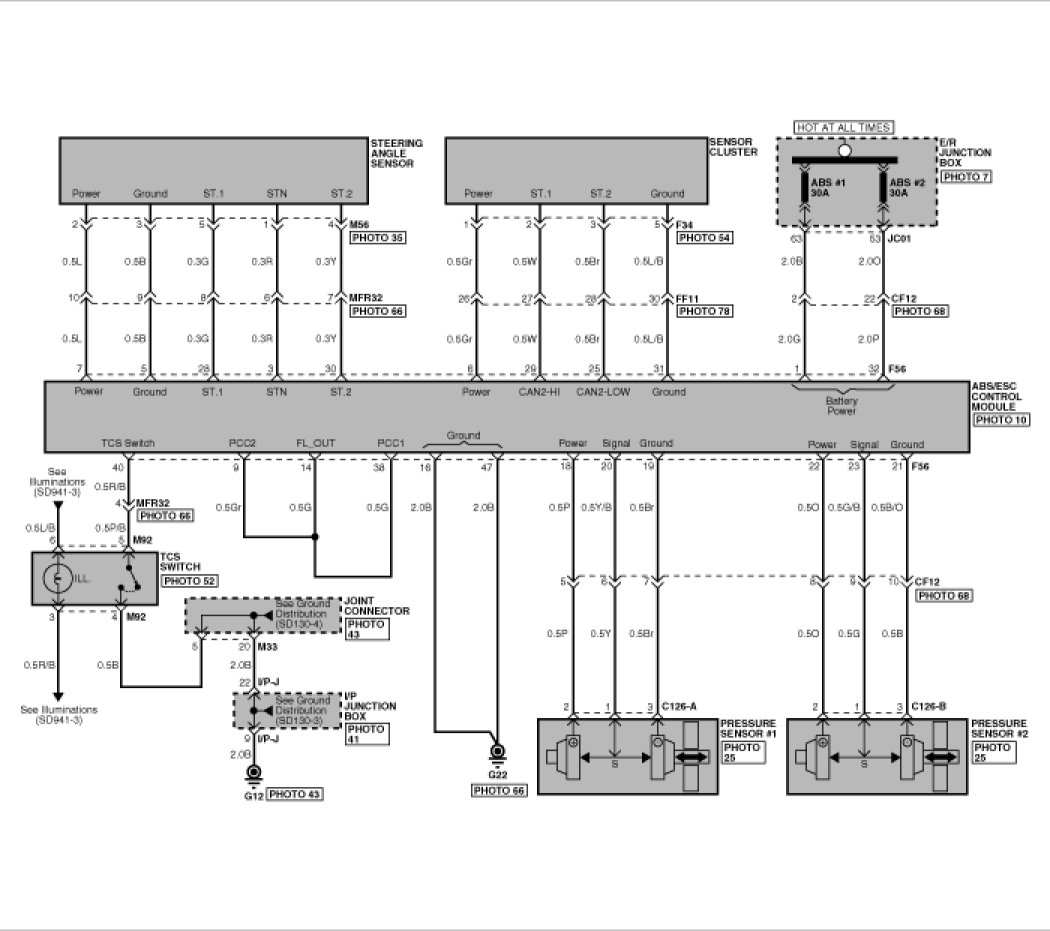

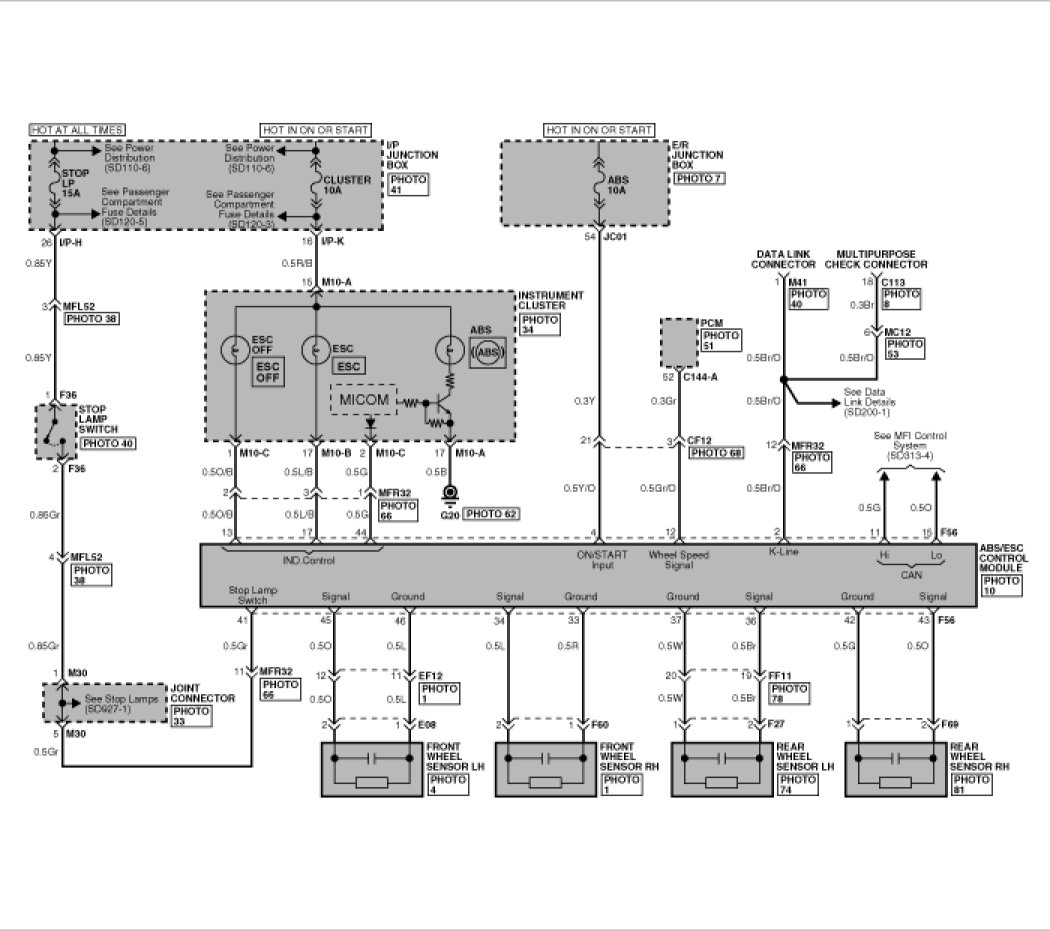

HECU CONTROL UNIT (ESC) CIRCUIT DIAGRAM
