Brakes and Traction Control: Specifications

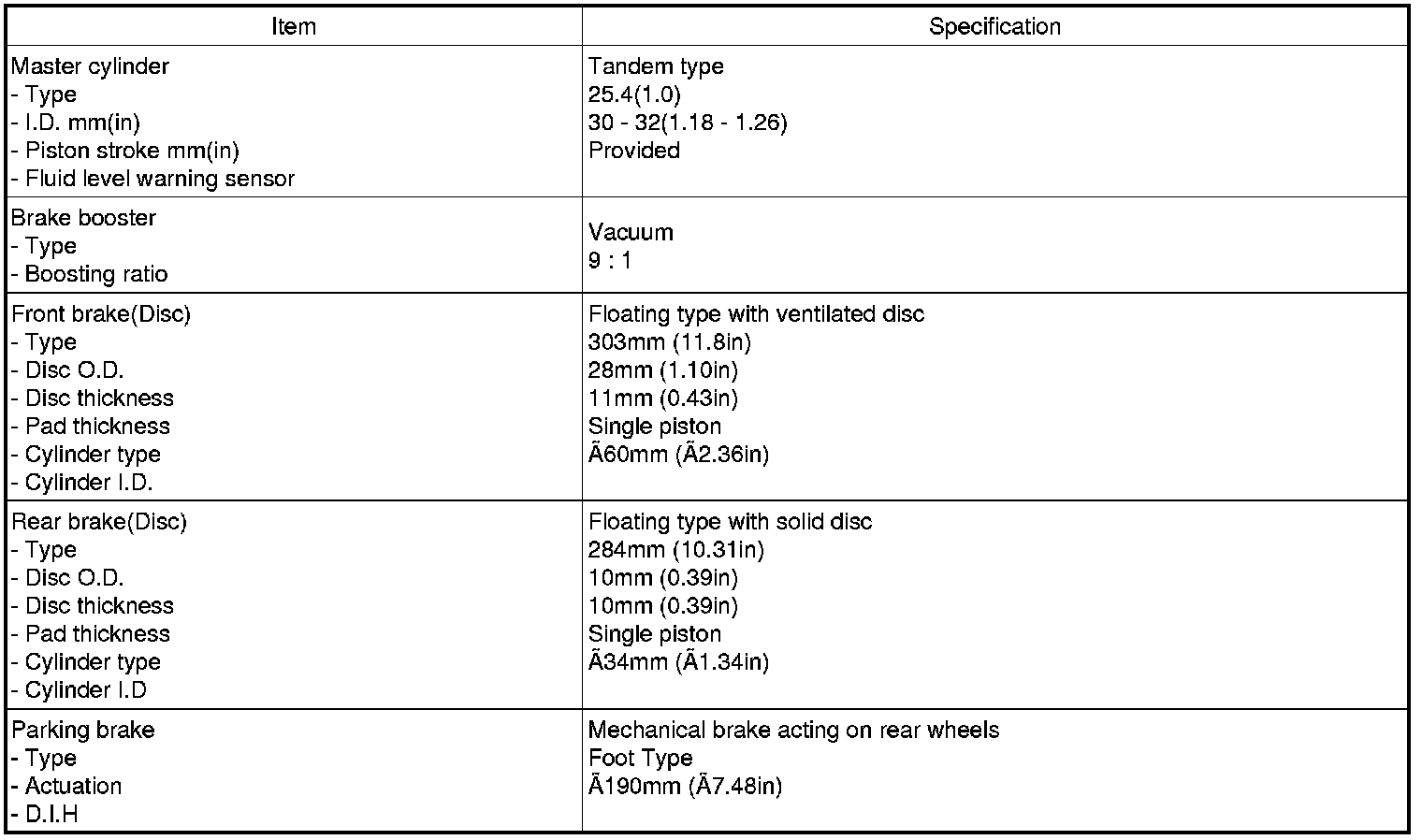

SPECIFICATIONS






O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
ABS : Anti-lock Brake System
ESC : Electronic Stability Control

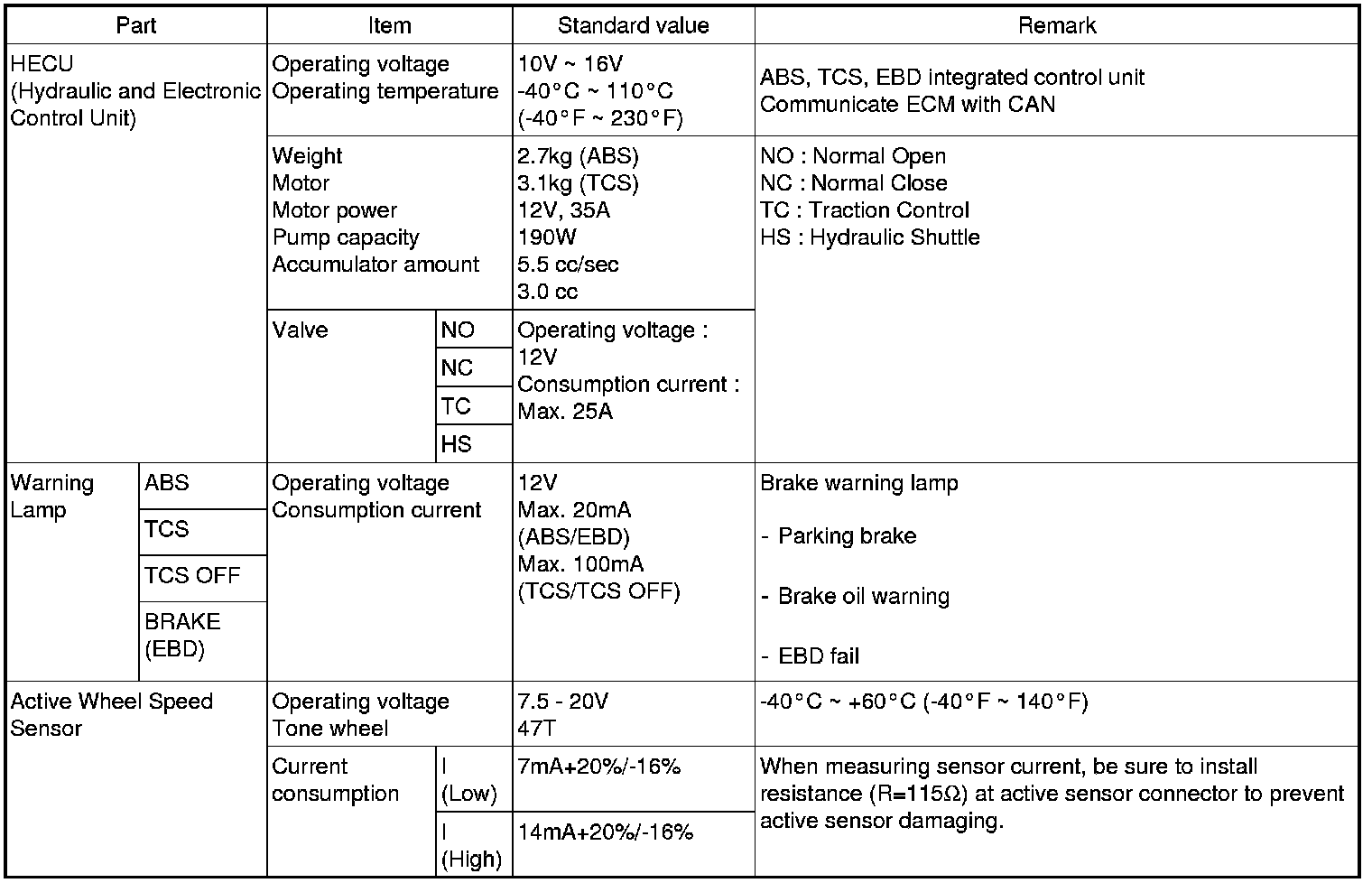

SPECIFICATIONS(ABS)

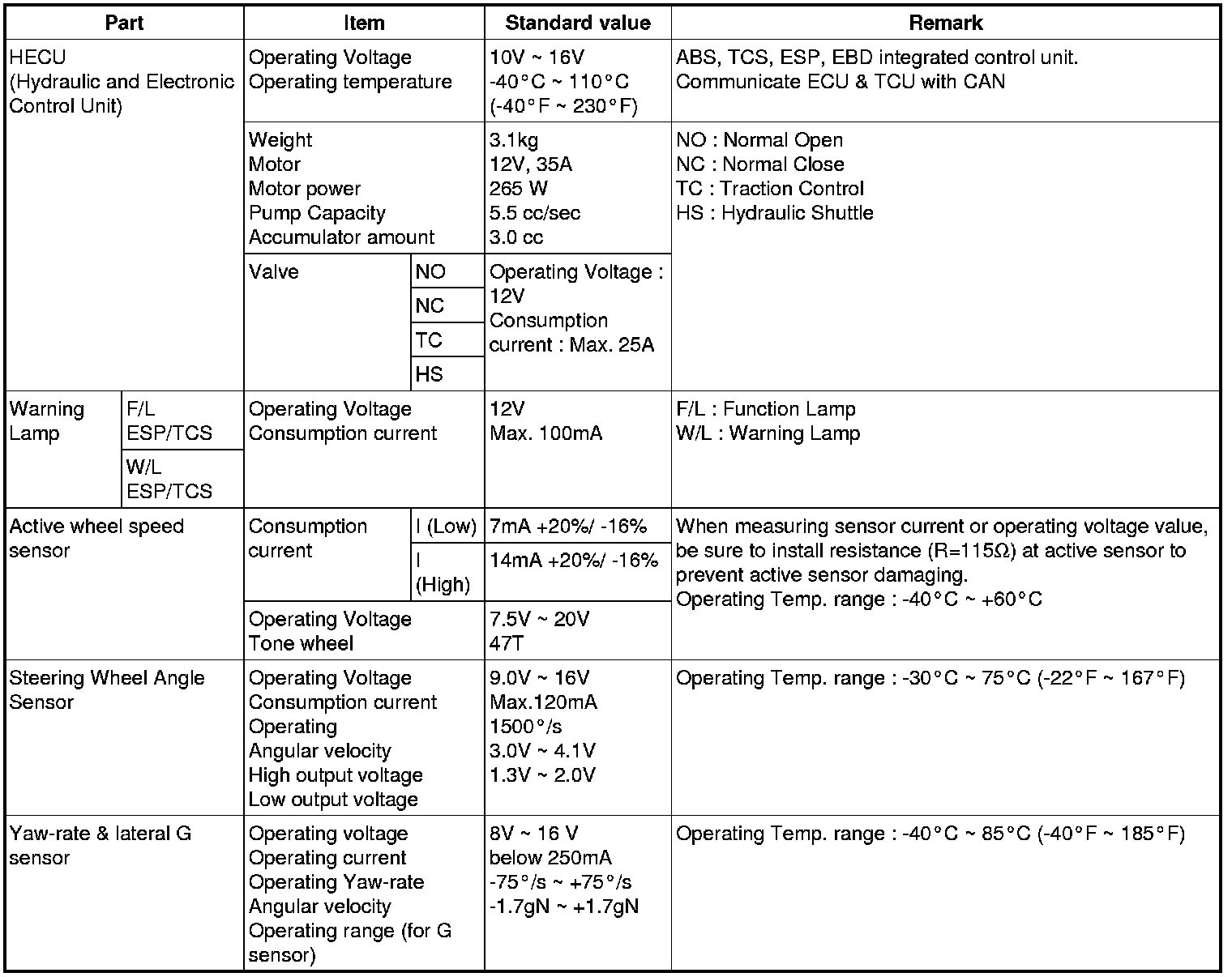

ESC (ELECTRONIC STABILITY CONTROL)
Specification

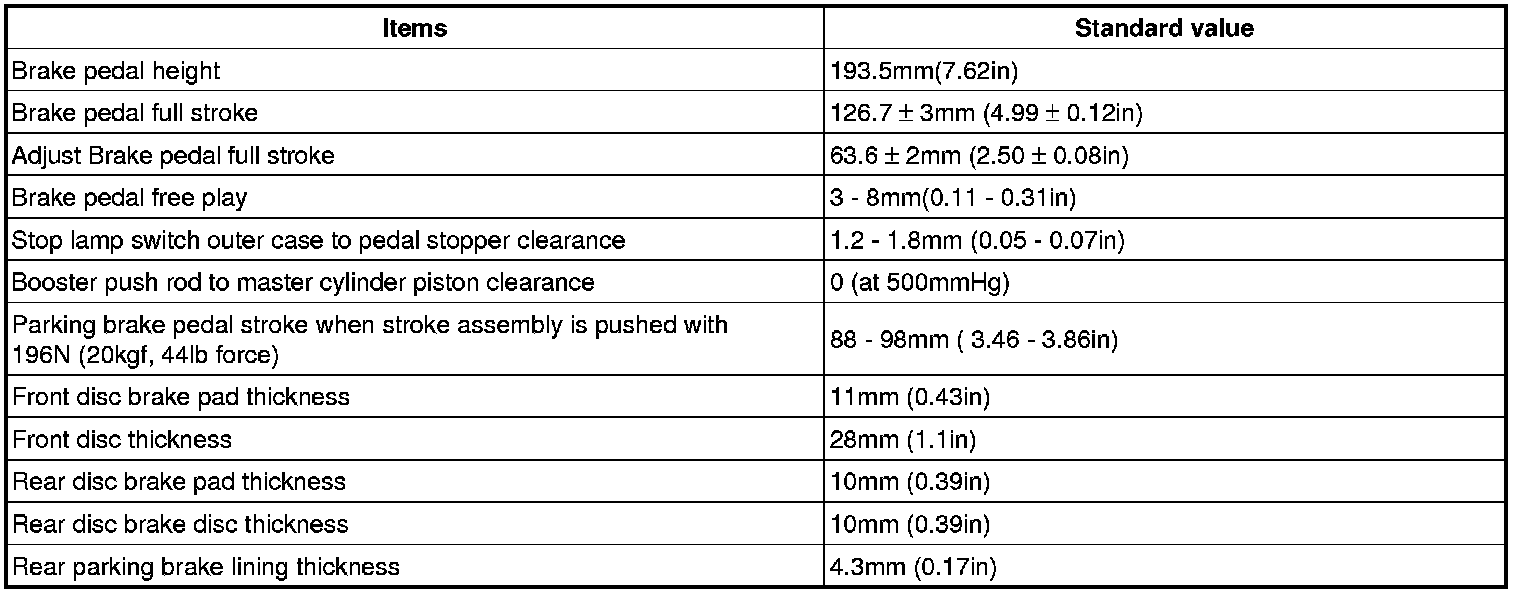

SERVICE STANDARD

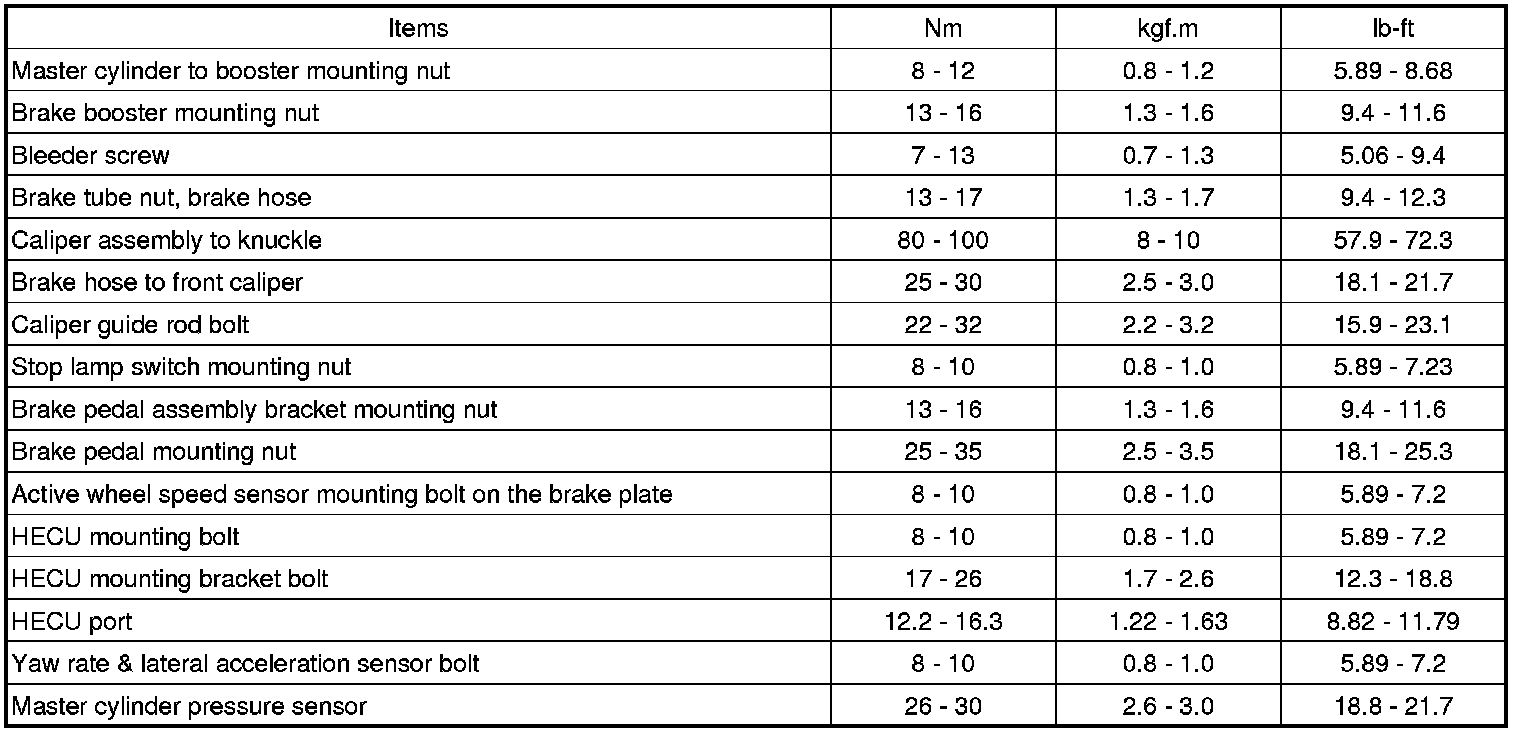

TIGHTENING TORQUE
