Parking Brake System: Adjustments

ADJUSTMENT


ADJUSTMENT OF REAR BRAKE SHOE CLEARANCE
1. Raise the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire from the rear hub.

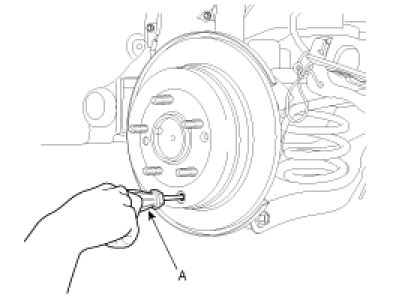

3. After removing the plug from the disk, rotate the toothed wheel by a screw driver until the disk is not moving, and then return it by 5 notches.





ADJUSTMENT PROCEDURE OF DIH FOOT PARKING BRAKE

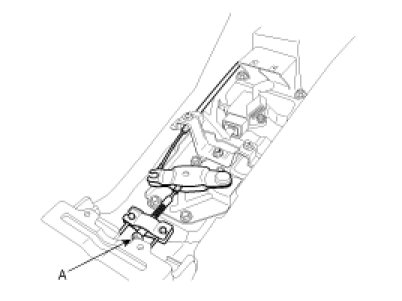

1. Push the parking brake pedal to its maximum point of travel. Release and repeat 2 additional times. Adjust the nut (A) so that the parking brake pedal stroke is 88 - 98mm(3.46 - 3.86in) at an operating effort of 196N(20kgf, 44lb).





CAUTION:
1. The parking brake adjustment must be carried out after adjusting the rear shoe.
2. After adjusting parking brake, verify the following;
1) Must be free from interference between adjusting nut and pin.
2) Verify that the brake is not dragging


BED-IN PROCEDURE FOR DIH FOOT PARKING BRAKE
