Pinout Values and Diagnostic Parameters

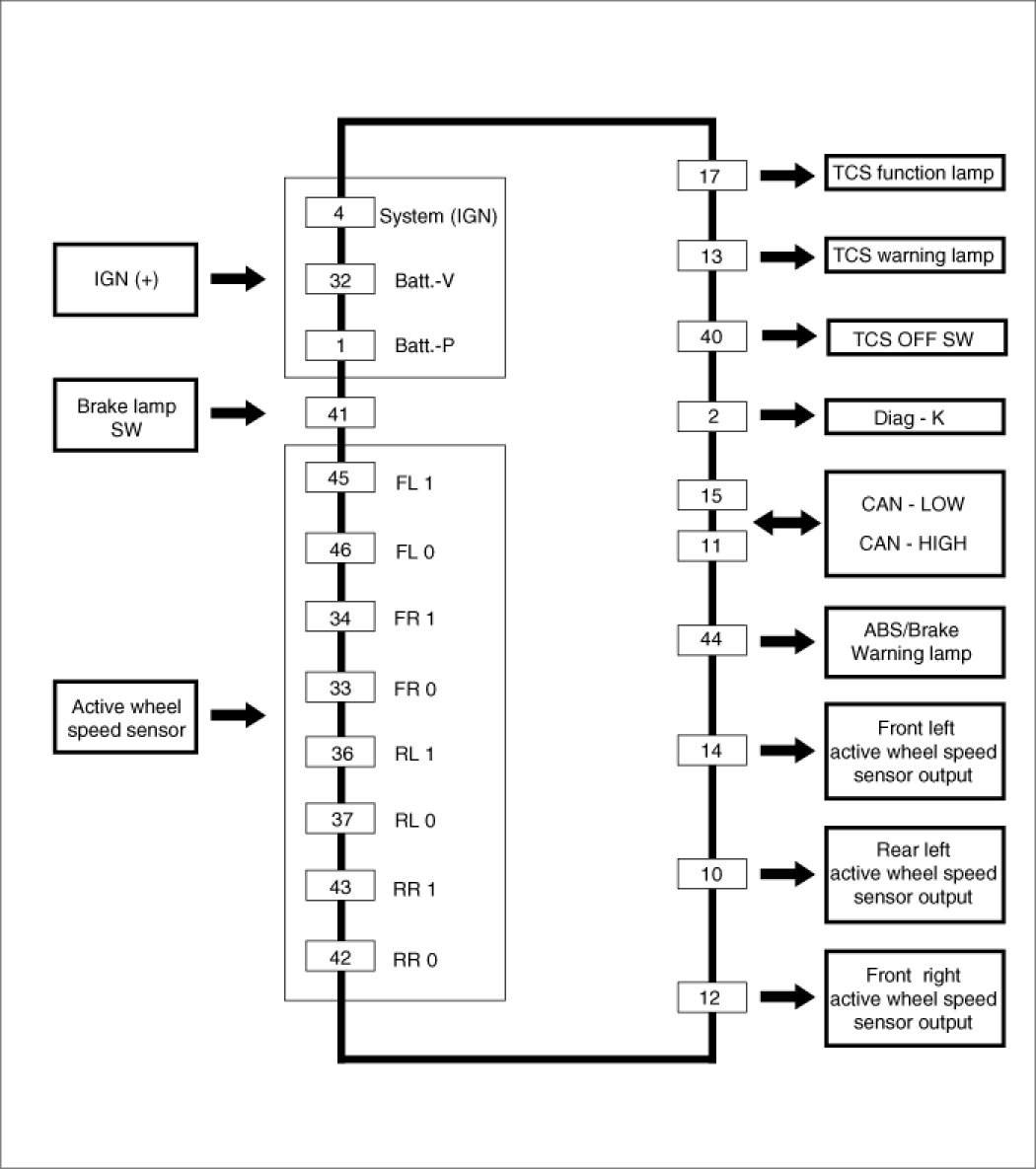

HECU INPUT/OUTPUT DIAGRAM






ABS/TCS control unit

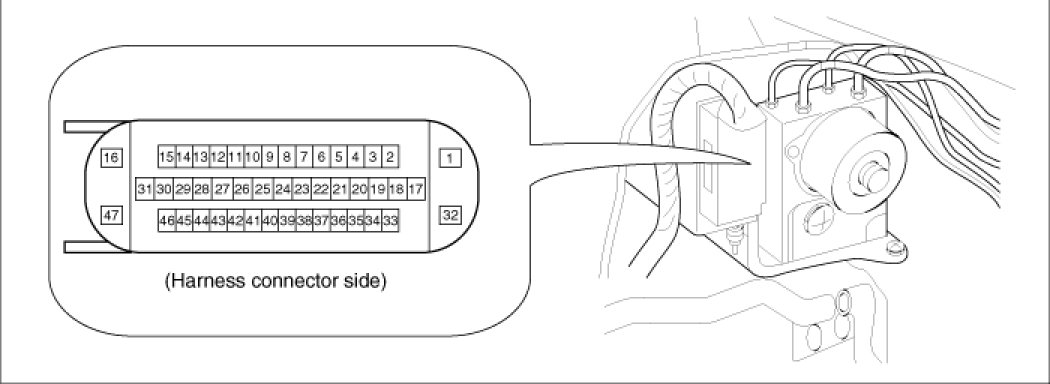

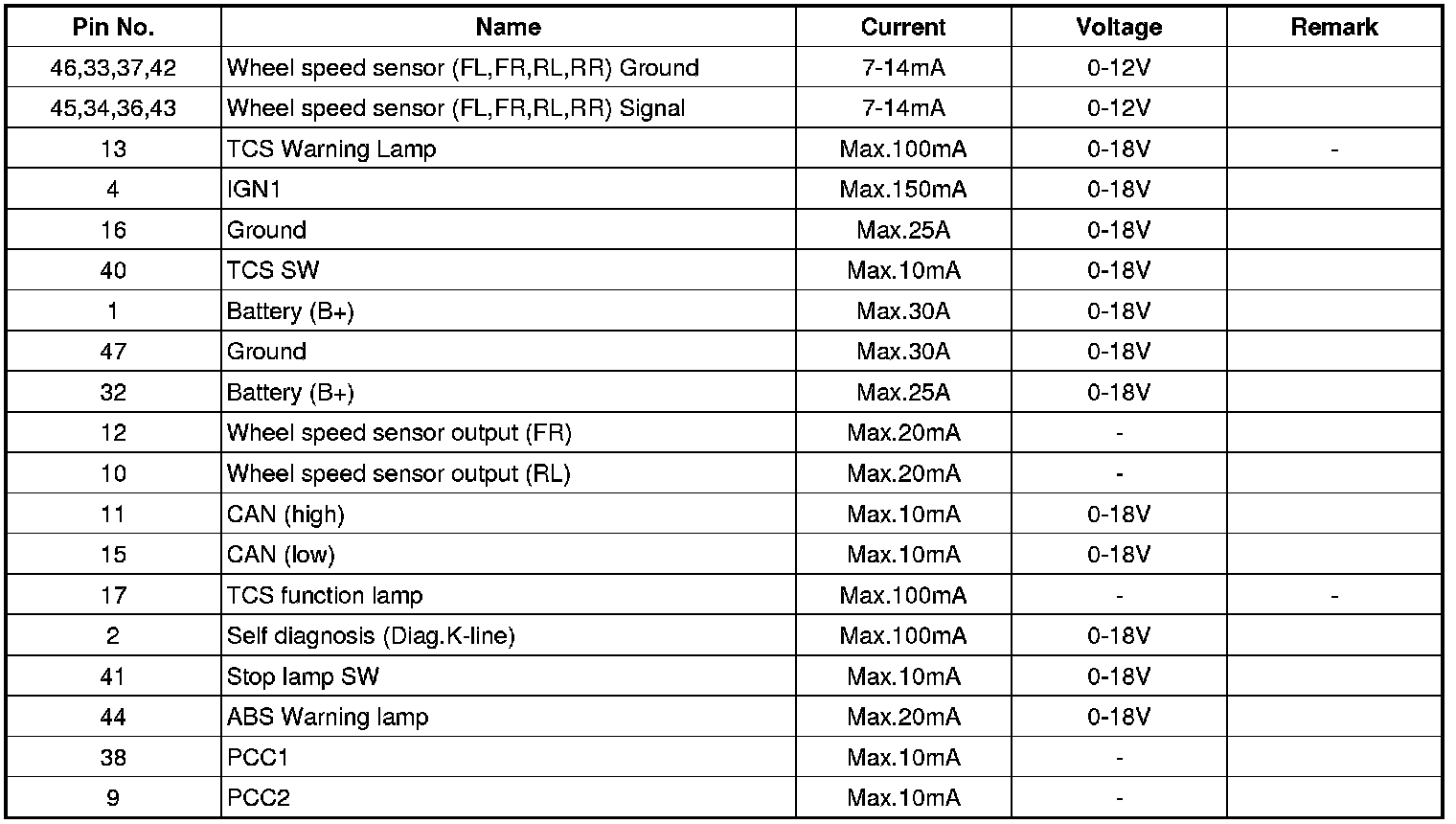

HECU Connector Inspection










ACTUATOR DRIVING

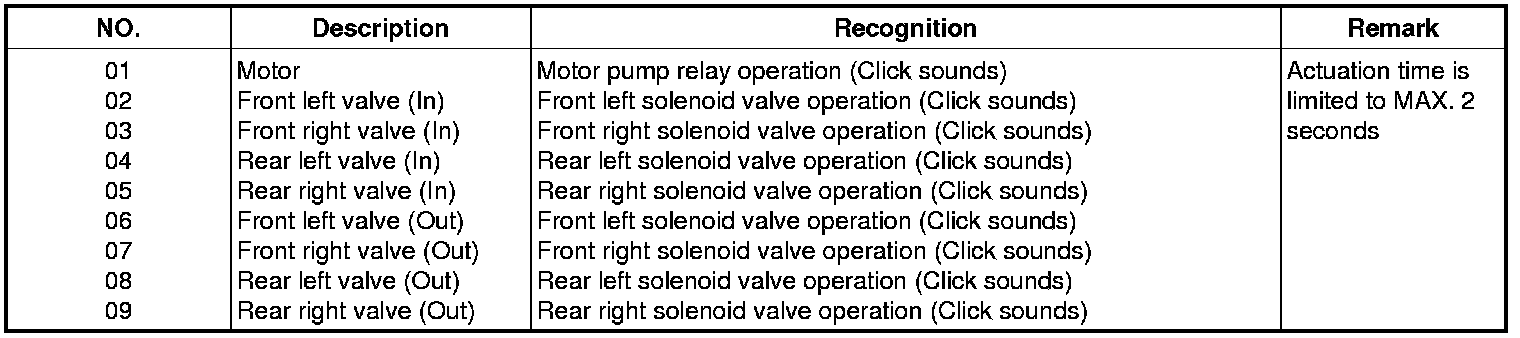

ABS

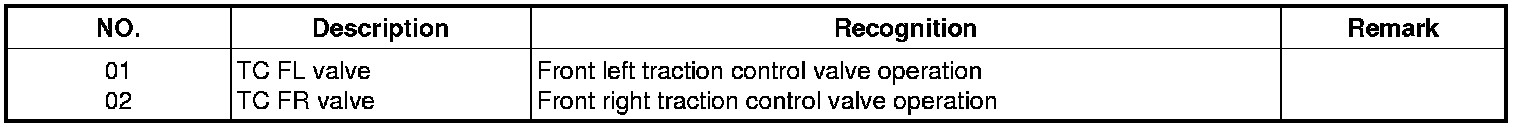

TCS






CURRENT DATA

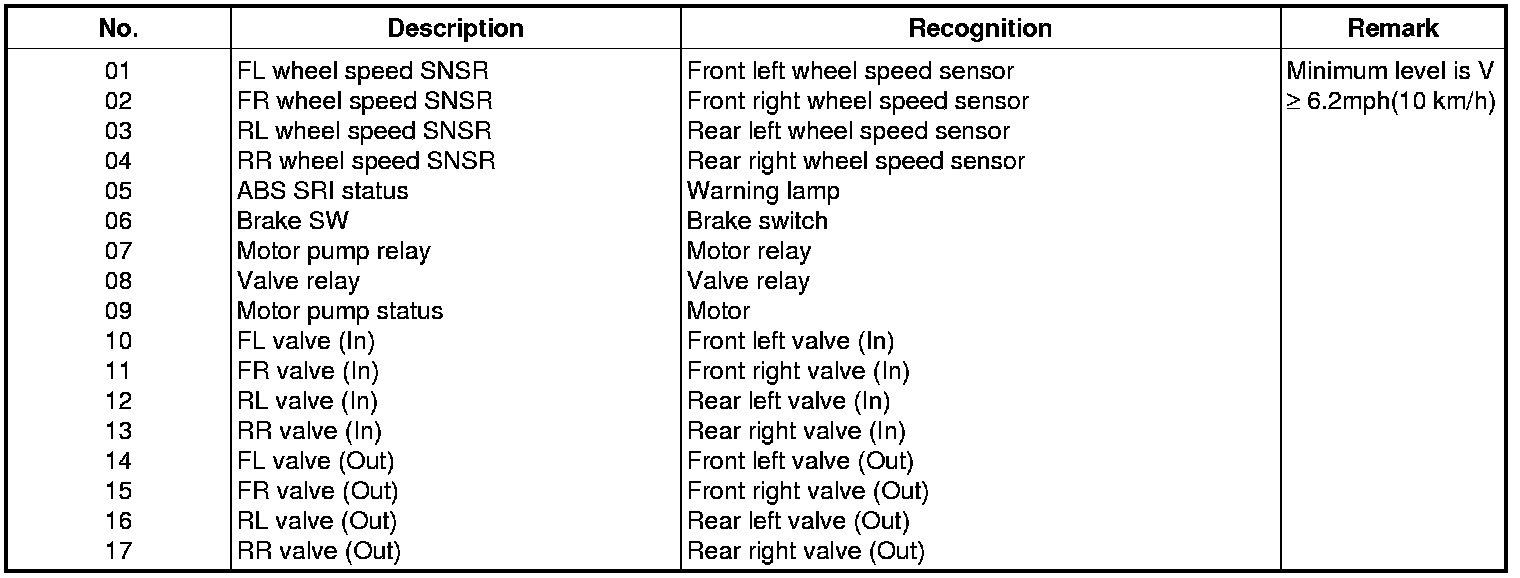

ABS

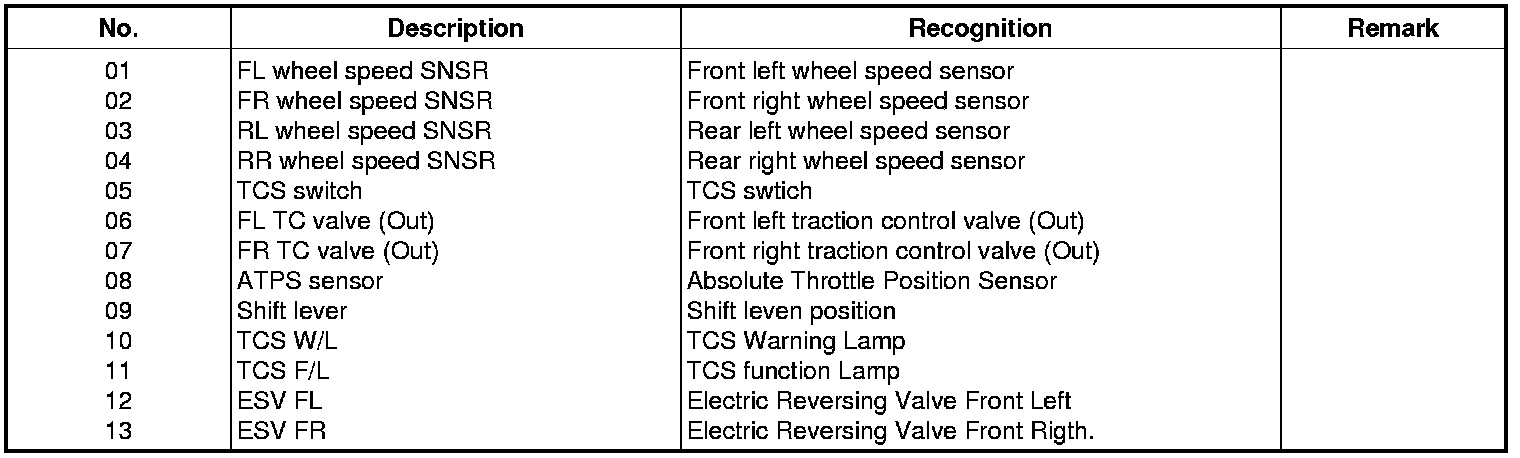

TCS
