Seat Fan: Service and Repair

BACK FAN

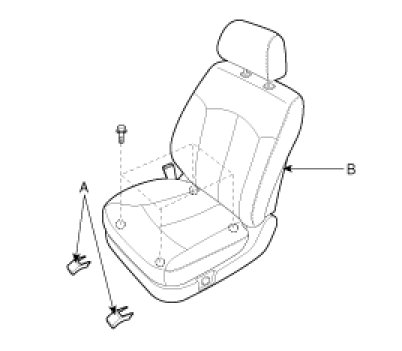

1. Remove the seat assembly mounting cover (A). After loosening the seat assembly mounting bolts, remove the seat assembly (B).

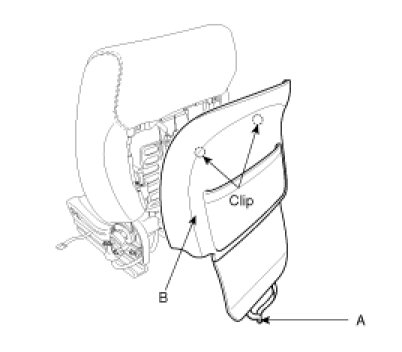

2. After disconnecting the scuff band (A), remove the seat back panel (B).

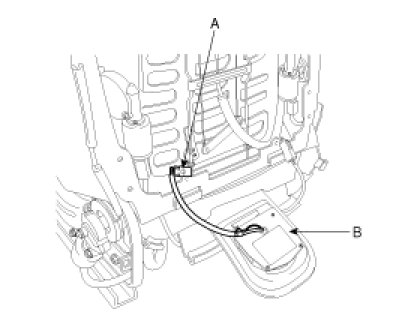

3. Disconnect the connector (A) from the seat cover. And if the FAN (B) is not operating properly, change the FAN.





CUSHION FAN
1. Remove the seat assembly mounting cover (A). After loosening the seat assembly mounting bolts, remove the seat assembly (B).




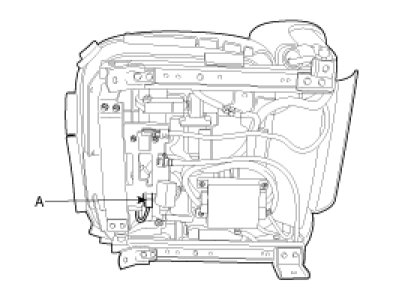

2. Disconnect the connector (A) from the seat cover. And if the FAN (B) is not operating properly, change the FAN.
