Seat Cushion: Service and Repair

SEAT CUSHION COVER REPLACEMENT
1. Remove front seat assembly .

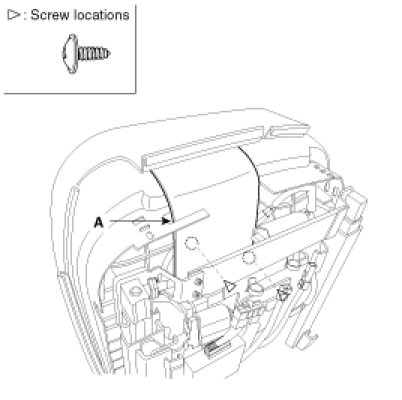

2. Remove the recliner cover .

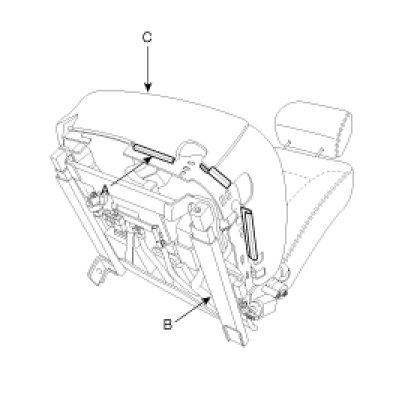

3. After disconnect the protector (A), then remove the seat cushion (B).




4. Loosen the blower mounting screw (B).

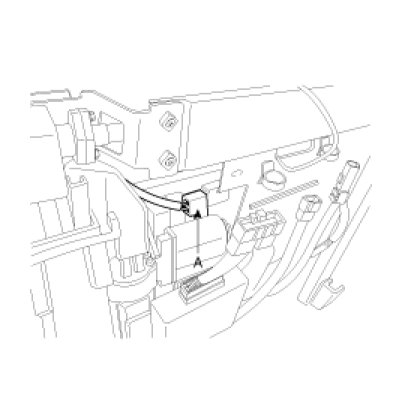

5. Disconnect the connector (A).

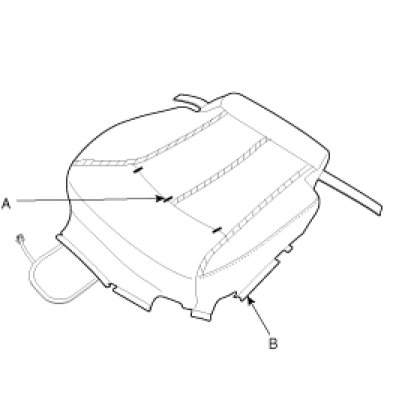

6. After removing the hog-ring clip (A) on the front of seat cushion and remove the seat cushion cover (B).




7. Installation is the reverse of removal.
