Seat Back Cover Replacement

SEAT BACK COVER REPLACEMENT
1. Remove front seat assembly .
2. Remove the recliner cover .

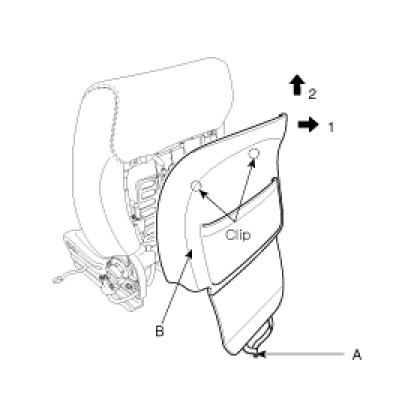

3. After disconnecting the scuff band (A), remove the seat back panel (B).

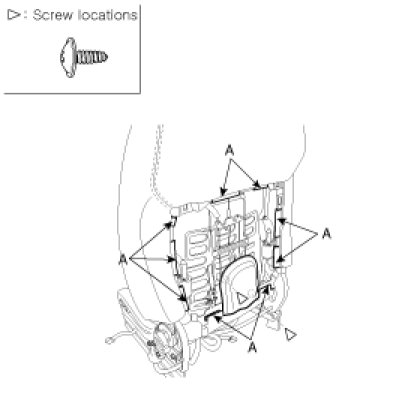

4. Disconnect the protector (A) from the back frame.
5. Loosen the blower (B) mounting screw.

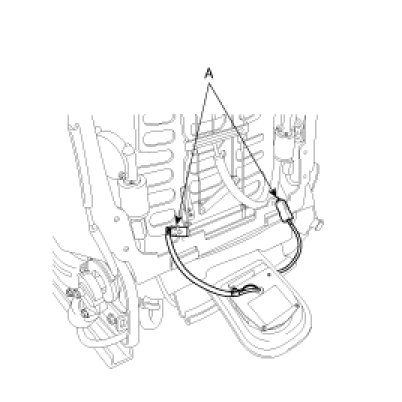

6. Disconnect the connector (A).

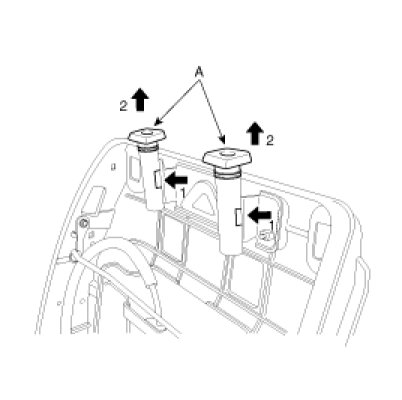

7. Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

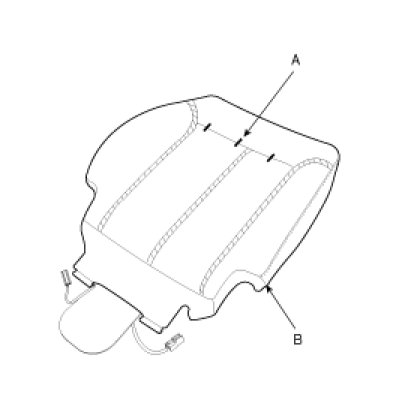

8. After removing the hog-ring clip (A) on the front of seat cushion and remove the seat cushion cover (B).




9. Installation is the reverse of removal.
